AKG PR40GB Diversity Guitarbug System
2 antennas. On/off switch.
This product has been discontinued or is no longer sold by SameDayMusic.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
Product rated 6.8 out of 10 (4 ratings)
ADDITIONAL VIEWS:
Main
In Use On Strat

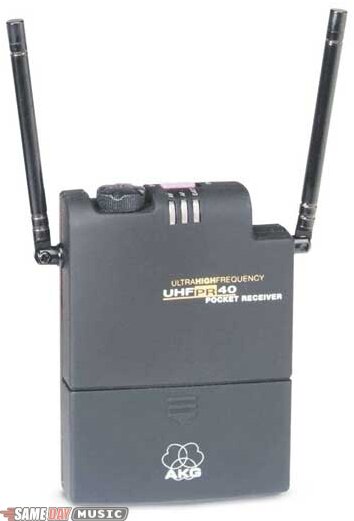

PR 40 Receiver
GB 40 Transmitter
In Use On Les Paul
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
This ultra compact UHF wireless system includes the popular Guitarbug transmitter -- nearly weightless and invisible as it hangs on your guitar's output jack with no body back. The minuscule new PR40 diversity receiver was designed to fit on a guitarist's pedalboard or "Velcroed" right onto your guitar amp (Velcro fastener strip included). The PR 40 features an ultra durable glass-fiber plastic case. The heavy-duty swivel joints on the antennas add to the reliability of the receiver. The PR 40 can be powered with two AAA size dry or rechargeable batteries. Place the PR40 into the optional charging base and it automatically recharges.
Features:
Extremely light, rugged portable receiver
2 folding antennas
4 Level Diversity system for reliable reception
On/off switch with battery/status LED
Features:
Extremely light, rugged portable receiver
2 folding antennas
4 Level Diversity system for reliable reception
On/off switch with battery/status LED
TECHNICAL DESCRIPTION
Carrier frequency range: 710 MHz to 865 MHz Modulation: FM
Audio bandwidth: 40 to 20,000 Hz
THD: 0.8% typ.
Signal/noise ratio: 103 dB (A) typ.
Powering: 2 x 1.5 V, AAA size batteries
Battery life: >8 hours (dry batteries); >6 hours (rechargeable batteries)
Audio outputs: unbal. line (tip): +6 dBm (10 kohms) headphones (ring): 18 mW (15 mW), 13 mW typ. (100 ohms)
Dimensions: 77 x 55 x 15 mm (3.0 x 2.1 x 0.6 in.)
Weight: 60 g (2.1 oz.)
Standard accessories: 2 AAA size batteries, audio connecting cable, belt clip, Velcro strips for camera mounting
Audio bandwidth: 40 to 20,000 Hz
THD: 0.8% typ.
Signal/noise ratio: 103 dB (A) typ.
Powering: 2 x 1.5 V, AAA size batteries
Battery life: >8 hours (dry batteries); >6 hours (rechargeable batteries)
Audio outputs: unbal. line (tip): +6 dBm (10 kohms) headphones (ring): 18 mW (15 mW), 13 mW typ. (100 ohms)
Dimensions: 77 x 55 x 15 mm (3.0 x 2.1 x 0.6 in.)
Weight: 60 g (2.1 oz.)
Standard accessories: 2 AAA size batteries, audio connecting cable, belt clip, Velcro strips for camera mounting
