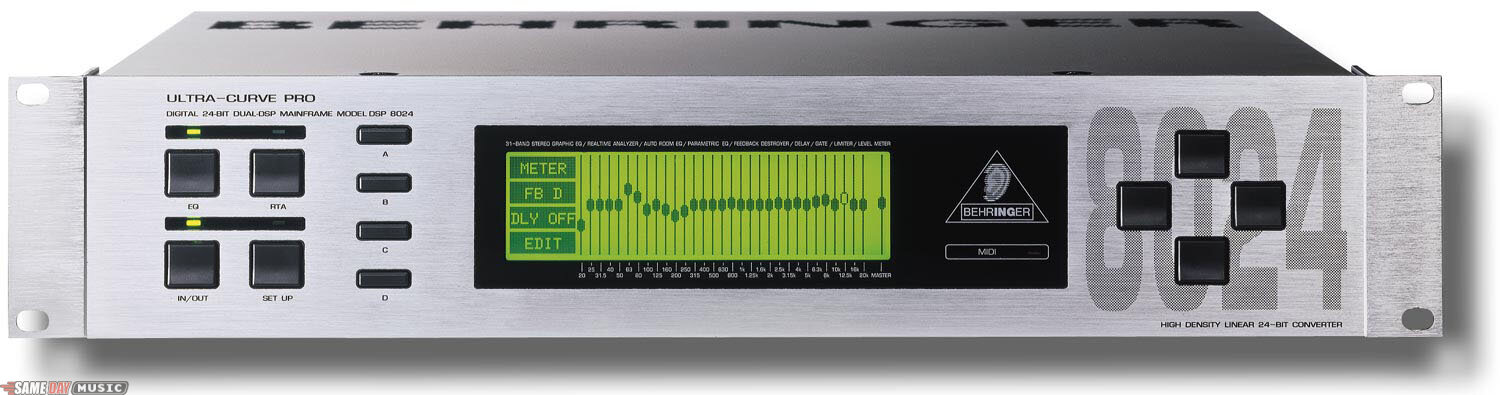

Behringer DSP8024 UltraCurve Pro Digital Processor
Two 24-bit high-speed signal processors. Delay up to 2.5 sec. Servo-balanced inputs and outputs.
This product has been discontinued or is no longer sold by SameDayMusic.
We recommend this product instead:
Behringer DEQ2496 Ultra Curve Pro
$299
The Ultra-Curve Pro DEQ2496 is an ultra high-precision digital 24-bit/96 kHz EQ/RTA mastering processor. Its extremely high audio performance makes it ideal for audiophile mastering and PA purposes. There are 4 concurrently selectable EQ modules (31-band graphic EQ, 10-band parametric EQ, Feedback Destroyer and three dynamic EQs per channel). >More
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
Product rated 6.7 out of 10 (24 ratings)
Read 2 Full Reviews >>
Main
Editor
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The PRO version of the unit was completely redesigned and truly deserves the designation PRO. The Ultra-Curve Pro DSP8024 is based on 2 extremely powerful, high-speed 24-bit DSPs (Digital Signal Processors) and first-class 24-bit A/D and D/A converters for all of your live and studio applications. Its open architecture permits operating system upgrades and even the implementation of completely new functions at any time. The front panel offers a convenient way of editing data, which may then be stored in the unit's non-volatile memory. The integrated MIDI interface permits real-time editing with our enhanced EQ-Design software or a MIDI controller/sequencer. Additional, extreme special effects can be realized using "snapshots."
All You Need - Stereo 31-Band Graphic EQ and Full Parametric EQ
Both channels feature a digital 31-band constant-Q graphic equalizer permitting a boost/attenuation of ±16 dB in 0.5 dB increments. Three full bands of parametric equalization or notch filters with dynamic bandwidth adaptation are also available per channel. Frequently used EQ curves can be stored in a library. A broad range of onboard functions such as edit/store/copy/compare/add/ subtract are also available. Superimpose and compare multiple EQ curves to optimize the system parameters to the given room conditions. All EQ parameters can be edited via MIDI for dynamic EQ effects such as filter sweeps. This point is of special interest for dance-floor or other productions that rely heavily on effects.
Feedback is a Thing of the Past with the Integrated Feedback Destroyer
The Ultra-Curve Pro contains a fully automatic feedback destroyer with intelligent signal analysis functions for swift elimination of feedback. Any of 6 parametric equalization bands can be set to automatically seek out and attenuate unwanted feedback frequencies dynamically. An ultra-narrow notch (1/60th octave) leaves the rest of the audio spectrum virtually unchanged. This feature is particularly effective when dealing with feedback between microphones and monitor speakers on stage. It can also eliminate any feedback howl, such as that between headphones and a microphone, or turntables and a club PA system.
Gain Precious Time with the Real-Time Analyzer
A Real-Time Analyzer is an invaluable tool for checking the frequency response characteristics of concert halls and studio control rooms, or to check if the frequency/energy content of a mix is right for radio transmission, clubs, or PA systems. This saves you precious time. PA system alignment normally takes place during the sound-check in an empty auditorium. The trouble is, once the audience has come in, the acoustics alter dramatically and resonant frequencies shift. Now you can equalize your PA system for a full auditorium, after the audience has arrived. With the Ultra-Curve DSP8024 you can afford the same sophisticated room equalization techniques previously enjoyed only by top professionals.
Ultra-Curve Pro DSP8024 - The Leap into the Next Millennium!
TECHNICAL DESCRIPTION
Unbeatable audio quality and high dynamic range with powerful 24-bit Crystal converters
Open architecture to accommodate future enhancements and upgrades
Multiple units may be connected via MIDI
Password protection for saved settings
Safe function disables front panel for tamper-proofing
Stereo link facility enables you to synchronize both channels
AES/EBU interface for digital inputs and outputs (optional)
Delay up to 2.5 sec.
Large, LED-backlit, high resolution LCD for excellent visual feedback
Servo-balanced inputs and outputs
XLR and jack connectors
Manufactured under ISO9000 certified management system
