Denon DNX400 Professional DJ Mixer
Coaxial and optical outputs. Fader start.
This product has been discontinued or is no longer sold by SameDayMusic.
We recommend this product instead:
Denon DNX500 Professional Rackmount DJ Mixer
$399
The DN-X500 is a professional 4U 19 in. rack-mountable analog matrix mixer that has eight line and two phono inputs which can be freely assigned to any of four channels. Four smooth 60 mm VCA channel faders provide level control, and a responsive 45 mm VCA crossfader with contour adjustment. Independent PFL channel meters help DJs to optimize and match levels for each source, ensuring a smooth transition between sources when crossfading. >More
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
Product rated 8.2 out of 10 (10 ratings)

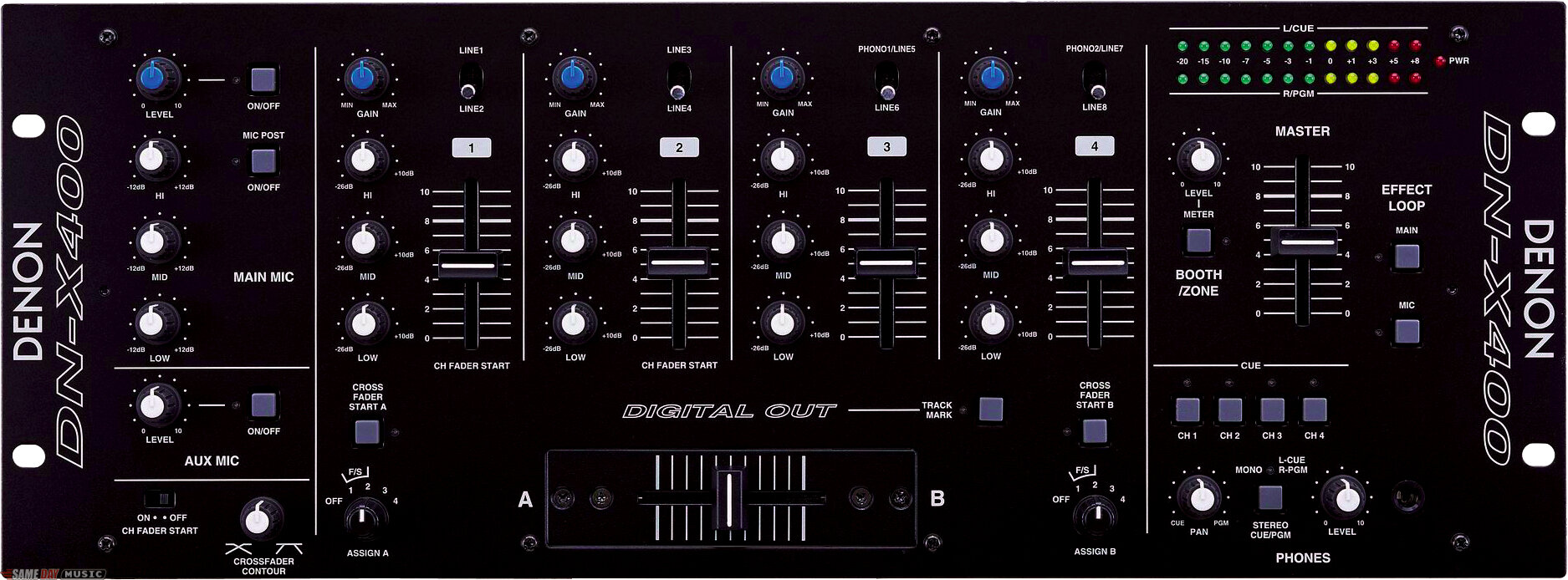

Main
Rear
PRODUCT DESCRIPTION
Features
2-digital outputs (Coaxial and Optical)
Track Mark (increments digital tracks from the mixer while recording)
8 line/2 phono inputs
2 Microphone inputs
Mic post on/off
Master output (balanced)
Master and Rec output (unbalanced)
Booth/Zone output (balanced)
Booth/Zone output level adjustment with meter display
Subwoofer output (balanced, mono)
Subwoofer output freq control
Send/Return effect loop (stereo)
Input Gain control (each channel)
PFL adjustment
-26dB ~ +10dB HI, MID, LOW tone controls
Split cue H/P monitor and display
Cross fader channel assign selector, 1~4
Cross fader contour adjustment
Cue, program pan
45mm VCA faders
Fader Start: compatible with Denon's DN-1800F, DN-2100F, DN-2600F, or other brand pulse start CD players
Industrial build with high performance parts
Superb audio fidelity (extremely clean)
Complement the digital outputs to MiniDisc or CD-R recorders
TECHNICAL DESCRIPTION
Weight: 5.5 kg (12.1 lbs.)
Power supply: 120 V AC�10%, 60 Hz (U.S.A. and Canada models)
Power consumption: 26 W
Input Sensitivity and Impedance:
Main Mic -54 dBV (2.0 mV) 10 kohms
Aux Mic -60 dBV (1.0 mV) 10 kohms
Effect (Return) -10 dBV (316 mV) 50 kohms
2-Phono -50 dBV (3.0 mV) 50 kohms
8-Line -14 dBV (200 mV) 50 kohms
Output level & Impedance:
Main (Balanced) 4 dBm (1.23 V) 600 ohms load
Main (Unbalanced) 0 dBV (1.0V) 1 kohms
Booth/Zone (Balanced) 4 dBm (1.23 V) 600 ohms load
Rec (RCA) -10 dBV (316 mV) 1 kohms
Effect (Send) -10 dBV (316 mV) 1 kohms
Subwoofer -2 dBV (800 mV) 1 kohms
Headphone -4 dBV (630 mV) 150 ohms
Frequency Response:
Line 20 to 20 kHz �2 dB
Phono 20 to 20 kHz RIAA �2 dB
Mic 20 to 20 kHz �2 dB
Signal to Noise ratio:
Line 80 dB (0 dBm, 1 kHz, EQ flat)
Phono 75 dB (0 dBm, 1 kHz, EQ flat)
Main Mic 65 dB (0 dBm, 1 kHz, EQ flat)
Total harmonic distortion rate:
Line Below 0.05%
Phono Below 0.05%
Cross talk: Over 70 dB
Channel equalizer:
Hi +10 dB, -26 dB (13 kHz)
Mid +10 dB, -26 dB (1 kHz)
Low +10 dB, -26 dB (100 Hz)
Microphone equalizer:
Hi +12 dB, -12 dB (10 kHz)
Mid +12 dB, -12 dB (1 kHz)
Low +12 dB, -12 dB (100 Hz)
Digital output (Coaxial):
Signal format IEC958 Type II
Output level 0.5 Vp-p 75 ohms
Output signal level -6 dB
Digital output (Optical):
Signal format IEC958 Type II
