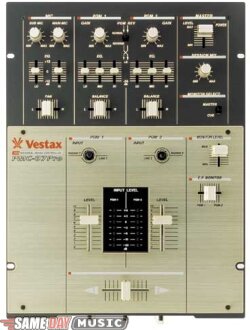

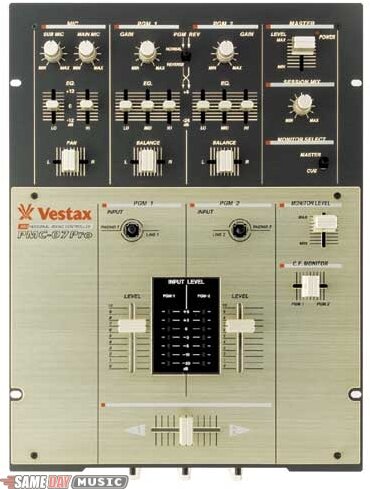

Vestax PMC07PRO 2-Channel Hip Hop/Scratch Mixer
3-band EQ with +6 to -24dB range. Session input.
This product has been discontinued or is no longer sold by SameDayMusic.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
Product rated 9.0 out of 10 (30 ratings)
PRODUCT DESCRIPTION
The PMC-07PRO has been designed with the new ideas from ISP (Invisibl Skratch Piklz). It is the flagship model among the Vestax range of performance mixers.
Features:
The Vestax invention, cross fader reverse switch and curve control knob are provided not only on the cross fader but also on the input faders.
This feature allows DJs to play in different new styles. All of the faders are "photo coupler controlled" which gives them a much longer life and quicker responsiveness.
The world's first program reverse switch reverses the whole of program 1 and 2. This feature is provided for a battle situation, preventing connection changes for different mixing styles.
3-band EQ with +6 to -24dB range is provide on each program. this powerful EQ enables DJs to create not only equalization but also band elimination.
Master/cue select switch is provided on monitor section. The switch enable selection of the monitor source form cue signal and master output signal.
Session input is provided for connection when DJs perform in group session.
1/4 in. phone jack (TRS balanced) is equipped on master output. The connection is more durable and accurate.
Features:
The Vestax invention, cross fader reverse switch and curve control knob are provided not only on the cross fader but also on the input faders.
This feature allows DJs to play in different new styles. All of the faders are "photo coupler controlled" which gives them a much longer life and quicker responsiveness.
The world's first program reverse switch reverses the whole of program 1 and 2. This feature is provided for a battle situation, preventing connection changes for different mixing styles.
3-band EQ with +6 to -24dB range is provide on each program. this powerful EQ enables DJs to create not only equalization but also band elimination.
Master/cue select switch is provided on monitor section. The switch enable selection of the monitor source form cue signal and master output signal.
Session input is provided for connection when DJs perform in group session.
1/4 in. phone jack (TRS balanced) is equipped on master output. The connection is more durable and accurate.
TECHNICAL DESCRIPTION
Phono inputs: Stereo (RIAA ?42dBv; RCA) x 2
Line inputs: Stereo (-10dBv; RCA) x 2
Microphone, inputs: -50dBv; 1/4 in. Jack x 2
Session inputs: Stereo (-10dBv; RCA)
Master out 1: Stereo (0dBv; 1/4 in. Jack TRS balanced)
Master out 2: Stereo (-4dBv; RCA)
Monitor head phone out: Stereo (130mW; Jack 1/4 in.)
Channel: 2/4Channels; (2 stereo, 2 mono)
Input switch (multi position transformer switch) phono/line
Input gain control
Program reverse switch x 1 for Ch 1&2
3-band equalizer fader with center click: Low +6/-24dB, mid +6/-24dB, high +6/-24dB
Balance fader with center click
Signal input level LED bar display
Input fader (User replaceable)
Input fader reverse switch
Input fader curve control
Channel 3+ 4 (Microphone)
Volume (each)
2-band equalizer fader with center click; low +/- 12dB, high +/- 12dB
Pan
Control fader with center click
Master: Output level fader
Session Mix: Volume control
Monitor: Selector switch; Master-cue; Monitor level fader
Cue fader: Ch1-Ch2
Cross-fader: Channel 1-2; Cross-fader reverse switch; Cross-fader curve adjustment
Frequency Response: 25-20000 Hz +/-0.5dB
S/N Ratio: >80 dB
Dimension (W x H x D): 262 x 105 x 363 mm
Weight: 3.6Kg
Power Supply: Vestax AC-12A
Line inputs: Stereo (-10dBv; RCA) x 2
Microphone, inputs: -50dBv; 1/4 in. Jack x 2
Session inputs: Stereo (-10dBv; RCA)
Master out 1: Stereo (0dBv; 1/4 in. Jack TRS balanced)
Master out 2: Stereo (-4dBv; RCA)
Monitor head phone out: Stereo (130mW; Jack 1/4 in.)
Channel: 2/4Channels; (2 stereo, 2 mono)
Input switch (multi position transformer switch) phono/line
Input gain control
Program reverse switch x 1 for Ch 1&2
3-band equalizer fader with center click: Low +6/-24dB, mid +6/-24dB, high +6/-24dB
Balance fader with center click
Signal input level LED bar display
Input fader (User replaceable)
Input fader reverse switch
Input fader curve control
Channel 3+ 4 (Microphone)
Volume (each)
2-band equalizer fader with center click; low +/- 12dB, high +/- 12dB
Pan
Control fader with center click
Master: Output level fader
Session Mix: Volume control
Monitor: Selector switch; Master-cue; Monitor level fader
Cue fader: Ch1-Ch2
Cross-fader: Channel 1-2; Cross-fader reverse switch; Cross-fader curve adjustment
Frequency Response: 25-20000 Hz +/-0.5dB
S/N Ratio: >80 dB
Dimension (W x H x D): 262 x 105 x 363 mm
Weight: 3.6Kg
Power Supply: Vestax AC-12A
