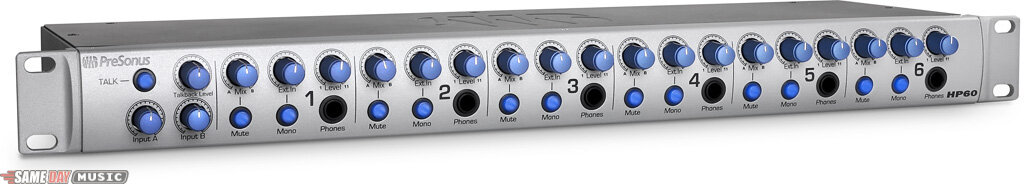

PreSonus HP60 6-Channel Headphone Mixing System
Six independent ultra low noise, high output headphone amplifiers.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Hosa CSS400 TRS Cable
- from $10
- Monster Cable 1/4 in. to 1/4 in.
- from $19.90
ADDITIONAL VIEWS:
Main
Front
Back
Setup Example
PRODUCT DESCRIPTION
The PreSonus HP60 is the most flexible and advanced headphone mixing system available for professional and project recording studios as well as live sound in-ear monitoring systems. Loaded with six independent, loud and clear headphone amplifiers, the HP60 features dual stereo inputs as well as external input, for each channel allowing you to mix between three stereo audio streams (mix A, mix B, and external input). Stereo output is also available on each channel to send line level headphone channel mixes to additional headphone amplifiers or monitor systems. Each channel features headphone level, mix control between A and B inputs, external input volume, mute and mono. The HP60 also features talkback via external XLR microphone input.
Common set up of the HP60 in a recording session is to send the main control room mix to input A. Send the click track to input B. Send the each band member direct recording input to each channel’s external input (more me). This will allow each band member to create a mix between the main mix, the click track and themselves.
The HP60 is the ultimate headphone amplification system delivering loud and clear headphone mixes for real-world recording situations.
Features
Six independent ultra low noise, high output headphone amplifiers (150 mW per channel)
Two sets of stereo inputs (A and B) with balanced TRS connectors
Stereo external input point on each channel for “more me” with trim control
Mix control between inputs A and B
Talkback with external XLR microphone with control
Direct stereo line output on each channel
Common set up of the HP60 in a recording session is to send the main control room mix to input A. Send the click track to input B. Send the each band member direct recording input to each channel’s external input (more me). This will allow each band member to create a mix between the main mix, the click track and themselves.
The HP60 is the ultimate headphone amplification system delivering loud and clear headphone mixes for real-world recording situations.
Features
Six independent ultra low noise, high output headphone amplifiers (150 mW per channel)
Two sets of stereo inputs (A and B) with balanced TRS connectors
Stereo external input point on each channel for “more me” with trim control
Mix control between inputs A and B
Talkback with external XLR microphone with control
Direct stereo line output on each channel
TECHNICAL DESCRIPTION
Input A: (2) 1/4 in. TRS balanced 10 Ohms
Input B: (2) 1/4 in. TRS balanced 10 Ohms
External input: TRS stereo unbalanced 10 Ohms
Headphone amplifier output power: 150 mW RMS (60 Ohms) per channel
Audio outputs: 1/4 in. TRS stereo unbalanced per channel
Master controls: Talk button, Talkback volume, Input A, Input B
Channel controls: Headphone level, Mix A/B control, External input level, Mono, Mute
External talkback: XLR with TS external control jack
Power: IEC 110V-240V internal switching
Input B: (2) 1/4 in. TRS balanced 10 Ohms
External input: TRS stereo unbalanced 10 Ohms
Headphone amplifier output power: 150 mW RMS (60 Ohms) per channel
Audio outputs: 1/4 in. TRS stereo unbalanced per channel
Master controls: Talk button, Talkback volume, Input A, Input B
Channel controls: Headphone level, Mix A/B control, External input level, Mono, Mute
External talkback: XLR with TS external control jack
Power: IEC 110V-240V internal switching
