Shure P4TRE3/PSM400 Wireless Personal Monitor System
Frequency agile, 16 channel. Includes P4T Transmitter, the P4R Bodypack Receiver, and E3 Earphones.
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Hosa CSS400 TRS Cable
- from $10
- Monster Cable 1/4 in. to 1/4 in.
- from $19.90
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
PSM 400 Wireless and Wired systems make professional quality personal monitoring available to more performers than ever before. Each system includes everything a working musician or band needs to receive consistent personal monitor mixes.
Designed for performers who are tired of the limits of floor wedges, the PSM 400 offers hands-on control and freedom to musicians who have a limited budget for gear. With a wide range of available options - from complete Wireless and Wired systems to individual components - there is a PSM 400 that is right, rehearsal through performance, for almost everyone who performs live music.

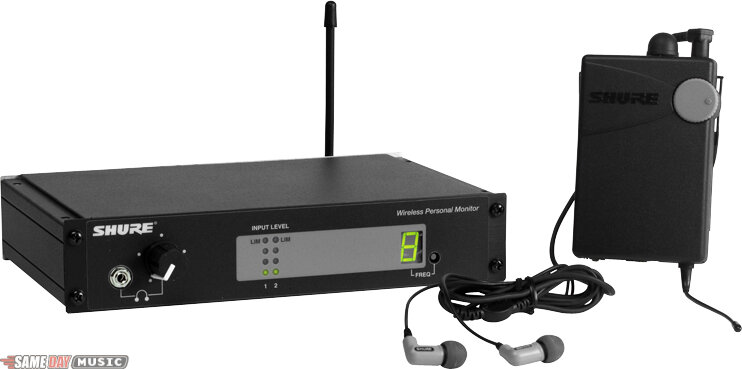

The P4TRE3 Wireless Personal Monitor System consists of the P4T Wireless Transmitter, the P4R Wireless Bodypack Receiver, and the E3 Single-Driver Earphones.
P4T Wireless Transmitter
Built-in audio limiter
External power supply
Remotable/combinable antennas
1/2 rack space
P4R Wireless Bodypack Receiver
High-impact plastic chassis
Frequency locator
E3 Single Driver Earphones
Single Low Mass/High Energy drivers for high fidelity full-range sound and isolation from outside noise.
Designed for performers who are tired of the limits of floor wedges, the PSM 400 offers hands-on control and freedom to musicians who have a limited budget for gear. With a wide range of available options - from complete Wireless and Wired systems to individual components - there is a PSM 400 that is right, rehearsal through performance, for almost everyone who performs live music.
The P4TRE3 Wireless Personal Monitor System consists of the P4T Wireless Transmitter, the P4R Wireless Bodypack Receiver, and the E3 Single-Driver Earphones.
P4T Wireless Transmitter
Built-in audio limiter
External power supply
Remotable/combinable antennas
1/2 rack space
P4R Wireless Bodypack Receiver
High-impact plastic chassis
Frequency locator
E3 Single Driver Earphones
Single Low Mass/High Energy drivers for high fidelity full-range sound and isolation from outside noise.
TECHNICAL DESCRIPTION
P4T Wireless Transmitter
Operating Controls:
Earphone volume knob
Frequency select
LED Indicators:
4-segment input level
Transmission Frequency
Inputs: 2 - 1/4 in. TRS line level
Outputs:
2 - 1/4 in. TRS loop outs
Local earphone monitor
RF Frequency Range: 722 to 865 MHz (country dependent)
Operating Range: 300 feet (environment dependent)
RF Output Power: 50 mW (+17 dBm) typical conducted (country dependent)
Modulation Limiter: Internal peak limiter (>10:1 compression)
Antenna: External whip, 50 BNC connector
Power Requirements: Operating voltage 14-18 Vdc
Supplied power supplies: Model PS40: 120 Vac, 60 Hz input.
Current: 250 mA maximum
Dimensions: 8.63 x 1.718 x 5.375 in. (219.2 x 43.6 x 136.5 mm)
Net Weight: 2 lbs. (907.2 g)
P4R Wireless Bodypack Receiver
Operating Controls:
Operating mode (Stereo, Mono, MixMode)
Volume knob
Balance
Defeatable limiter
High-frequency boost
Frequency select
Backlit LCD Indicators:
RF reception
Battery life
Operating mode
Frequency
RF Frequency Range: 722 to 865 MHz (country dependent)
Operating Range: 300 feet (environment dependent)
Audio Frequency Response: 50 Hz to 12 kHz (+/- 3 dB)
RF Sensitivity: 1 mV typical
Image Rejection: 55 dB typical
Spurious Rejection: 60 dB typical
Squelch Threshold: 4.5 mV typical
Antenna: attached whip
Power Requirements: 9 V alkaline battery
Battery Life: up to 8 hours, volume dependent
Audio Output Connector: 3.5 mm Stereo (Left = tip, Right = ring, Ground = sleeve)
Minimum Load Impedance: 16 ohms
Net Weight: .28 lbs.(125 g )
Overall Dimensions: 3-1/4 x 2-1/2 x 1-1/32 in.(82.6 mm X 63.5 mm X 26.2 mm)
E3 Single Driver Earphones
Transducer Type: single low mass/high energy
Sensitivity (at 1 kHz): 115 dB SPL/mW
Impedance (at 1 kHz) 26 ohms
Output Connector: Gold-plated stereo, 3.5 mm (1/8 in.) phone plug
Cable Length: 1.57 m (62 in.)
Important NOTE:
Due to the FCC reallocation and auction of frequencies in the 700 MHz band, Shure has chosen to move the PSM 400 products from the HF band (722 to 746 MHz) to the new X1 band (944 to 952 MHz). There are no changes to pricing.
The X1 band extends from 944 to 952 MHz (8 MHz total). This portion of the RF spectrum is called the “STL band” because it is used for Studio-Transmitter Links between a radio station studio and a transmitter in a different location. It is outside of the TV band, new wireless services, and public safety bands.
NOTE: PSM 400 systems operating in the X1 band are not compatible with the PA770 antenna combiner.
Operating Controls:
Earphone volume knob
Frequency select
LED Indicators:
4-segment input level
Transmission Frequency
Inputs: 2 - 1/4 in. TRS line level
Outputs:
2 - 1/4 in. TRS loop outs
Local earphone monitor
RF Frequency Range: 722 to 865 MHz (country dependent)
Operating Range: 300 feet (environment dependent)
RF Output Power: 50 mW (+17 dBm) typical conducted (country dependent)
Modulation Limiter: Internal peak limiter (>10:1 compression)
Antenna: External whip, 50 BNC connector
Power Requirements: Operating voltage 14-18 Vdc
Supplied power supplies: Model PS40: 120 Vac, 60 Hz input.
Current: 250 mA maximum
Dimensions: 8.63 x 1.718 x 5.375 in. (219.2 x 43.6 x 136.5 mm)
Net Weight: 2 lbs. (907.2 g)
P4R Wireless Bodypack Receiver
Operating Controls:
Operating mode (Stereo, Mono, MixMode)
Volume knob
Balance
Defeatable limiter
High-frequency boost
Frequency select
Backlit LCD Indicators:
RF reception
Battery life
Operating mode
Frequency
RF Frequency Range: 722 to 865 MHz (country dependent)
Operating Range: 300 feet (environment dependent)
Audio Frequency Response: 50 Hz to 12 kHz (+/- 3 dB)
RF Sensitivity: 1 mV typical
Image Rejection: 55 dB typical
Spurious Rejection: 60 dB typical
Squelch Threshold: 4.5 mV typical
Antenna: attached whip
Power Requirements: 9 V alkaline battery
Battery Life: up to 8 hours, volume dependent
Audio Output Connector: 3.5 mm Stereo (Left = tip, Right = ring, Ground = sleeve)
Minimum Load Impedance: 16 ohms
Net Weight: .28 lbs.(125 g )
Overall Dimensions: 3-1/4 x 2-1/2 x 1-1/32 in.(82.6 mm X 63.5 mm X 26.2 mm)
E3 Single Driver Earphones
Transducer Type: single low mass/high energy
Sensitivity (at 1 kHz): 115 dB SPL/mW
Impedance (at 1 kHz) 26 ohms
Output Connector: Gold-plated stereo, 3.5 mm (1/8 in.) phone plug
Cable Length: 1.57 m (62 in.)
Important NOTE:
Due to the FCC reallocation and auction of frequencies in the 700 MHz band, Shure has chosen to move the PSM 400 products from the HF band (722 to 746 MHz) to the new X1 band (944 to 952 MHz). There are no changes to pricing.
The X1 band extends from 944 to 952 MHz (8 MHz total). This portion of the RF spectrum is called the “STL band” because it is used for Studio-Transmitter Links between a radio station studio and a transmitter in a different location. It is outside of the TV band, new wireless services, and public safety bands.
NOTE: PSM 400 systems operating in the X1 band are not compatible with the PA770 antenna combiner.
