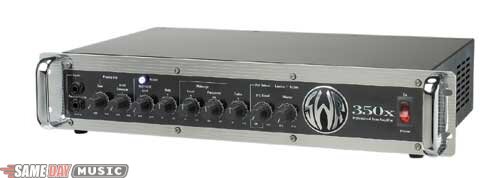

SWR 350X Pro Series Bass Amplifier Head (350 Watts)
Limiter. Aural Enhancer.
This product has been discontinued or is no longer sold by SameDayMusic.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
Improving on greatness. SWR's 350x is the third in a series of upgrades to SWR's top-selling Bass 350 amplifier. In addition to new chassis graphics — featuring the SWR logo badge in classic chrome — the 350x has inherited the SWR Mo Bass' popular SubWave effect, which produces a clean, pure and accurate octave effect. A Subwave Footswitch with a hardwired 1/4 in. cable (for connection purposes) ships with the 350x as an added bonus.
Front Panel Features
Ultra-High-Polished Aluminum Front Panel
Dual independent input jacks compatible for both active and passive instruments
Gain control with LED peak clipping indicator
Exclusive Aural Enhancer circuitry
Subwave (with Level control)
Subwave Illuminated on/off switch
Limiter
Limiter Defeat Switch
Active bass and treble controls
Variable mid-range EQ
Effects Blend Control
Master Volume Control
Rack mountable
Chrome Rack Handles
Power On/Off Switch
Aluminum chassis
Rear Panel Features
Sidechain mono effects loop
Balanced XLR Output
XLR Mode Switch (Direct, Line, or Direct + Sub)
Tuner Send
Subwave Footswitch Jack
Fan Defeat Switch
Two 1/4 in. Speaker Output Jacks
Two Speakon Output Jacks
Speaker fuse: 3AG, 10 Amp, Fast Blo
Line Fuse: 3AG, 8 Amp, Slow Blo
AC Line Receptacle
Internal Features
All tube preamp gain stages
(1) 12AX7 Preamp Tube
Cooling Fan
Front Panel Features
Ultra-High-Polished Aluminum Front Panel
Dual independent input jacks compatible for both active and passive instruments
Gain control with LED peak clipping indicator
Exclusive Aural Enhancer circuitry
Subwave (with Level control)
Subwave Illuminated on/off switch
Limiter
Limiter Defeat Switch
Active bass and treble controls
Variable mid-range EQ
Effects Blend Control
Master Volume Control
Rack mountable
Chrome Rack Handles
Power On/Off Switch
Aluminum chassis
Rear Panel Features
Sidechain mono effects loop
Balanced XLR Output
XLR Mode Switch (Direct, Line, or Direct + Sub)
Tuner Send
Subwave Footswitch Jack
Fan Defeat Switch
Two 1/4 in. Speaker Output Jacks
Two Speakon Output Jacks
Speaker fuse: 3AG, 10 Amp, Fast Blo
Line Fuse: 3AG, 8 Amp, Slow Blo
AC Line Receptacle
Internal Features
All tube preamp gain stages
(1) 12AX7 Preamp Tube
Cooling Fan
TECHNICAL DESCRIPTION
Frequency Response (Power Amplifier): -3dB @ 20Hz and 40KHz
Dimensions (W x H x D): 19 x 3.5 x 12.25 in.
Weight: 17 lbs.
Power Output:
450 Watts @ 2 ohms
350 Watts @ 4 ohms
240 Watts @ 8 ohms
Sensitivity:
Full output under clipping, 8 ohms load, 100 Hz
Passive Input Jack: 38 millivolts
Active Input Jack: 155 millivolts
Power Amplifier (Effects Return Jack "in"): .5 volts
Signal To Noise Ratio: -72 dB(<10 millivolts typical)
Equivalent Input Noise: 9 microvolts
Input Impedance
Passive/Active Input: 800K Ohms
Active Input: 60K Ohms
Effects Return: 27K Ohms
Output Impedance
Effects Send: 100 Ohms
Tuner Send: 100 Ohms
XLR Balanced Out: 750 Ohms
Dimensions (W x H x D): 19 x 3.5 x 12.25 in.
Weight: 17 lbs.
Power Output:
450 Watts @ 2 ohms
350 Watts @ 4 ohms
240 Watts @ 8 ohms
Sensitivity:
Full output under clipping, 8 ohms load, 100 Hz
Passive Input Jack: 38 millivolts
Active Input Jack: 155 millivolts
Power Amplifier (Effects Return Jack "in"): .5 volts
Signal To Noise Ratio: -72 dB(<10 millivolts typical)
Equivalent Input Noise: 9 microvolts
Input Impedance
Passive/Active Input: 800K Ohms
Active Input: 60K Ohms
Effects Return: 27K Ohms
Output Impedance
Effects Send: 100 Ohms
Tuner Send: 100 Ohms
XLR Balanced Out: 750 Ohms
