ART USB Phono Plus Preamp
USB audio interface with a standalone Phono preamp. Does not include USB cable. Includes AC adapter.
This product has been discontinued or is no longer sold by SameDayMusic.
We recommend this product instead:
ART USB Phono Plus V2 RIAA Phono Preamp
$99
The USBPhonoPlus v2 is the ideal low cost interface solution for transferring any analog or digital audio source, including a turntable into a computer via standard USB connection. >More
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
Product rated 5.5 out of 10 (2 ratings)

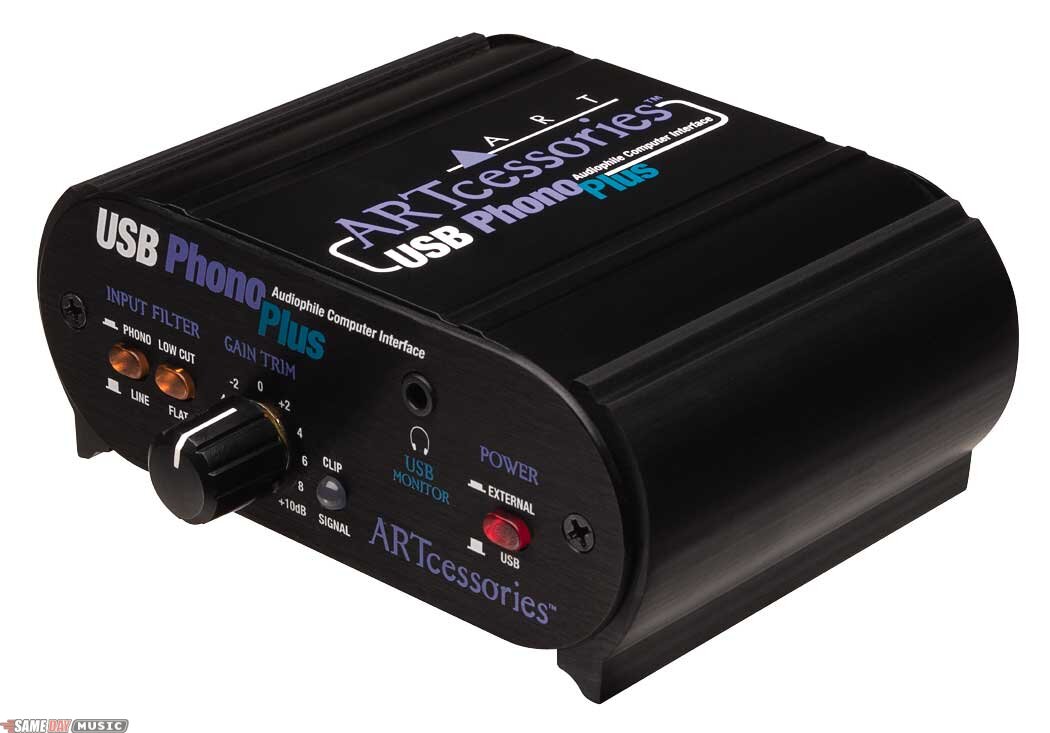

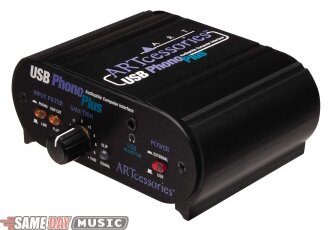

Main
Rear
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The USB Phono Plus acts as an interface between your computer and a wide variety of analog and digital sources. The analog inputs are switchable between phono and line level signals and a low-cut filter removes rumble and wind noise. The front gain trim control and signal/clip LED allow you to optimize the A/D for a wide range of input sources. The front panel USB monitor/headphone jack and the optical output on the rear panel can monitor audio output from your computer. The built-in low-noise phono preamp circuit conforms to the RIAA standard. The line output jacks are always connected to the input preamp's signal for source monitoring.
Housed in an all-aluminum black anodized case, the USB Micro Pre can be powered by either an external power source or directly off the USB port so remote recording is a snap. Optical TOSLINK inputs and outputs as well as S/PDIF inputs let you use the USB Micro Pre as a digital audio to USB interface as well.
The USB Phono Plus is fully compliant with the USB 1.1 specification and uses USB adaptive mode for playback and USB asynchronous mode for record. It will work with the USB audio device drivers built into Windows 98SE/ME/2000/XP or Macs with native USB support -- OS9.1 or greater or OSX. No special drivers are needed.
Includes AC adapter. USB cable sold separately.
TECHNICAL DESCRIPTION
THD: .01% Typical @ 1KHz
Hum and Noise: >90dB below clipping
Input Impedance: 47k Ohms/100pF (phono) 270k Ohm (line)
Maximum Input Level: 40mVrms @1KHz (phono), +19dBu (line)
Maximum Gain: 45dB @ 1KHz (phono), +6dB (line)
Analog Output Connections: RCA (preamp line output), 1/8 in. (USB monitor/headphone output)
Maximum Output Level: +6dBu (1.4Vrms)
Filter Type/Response: Switchable, High Pass, -3dB @ 22Hz
A/D & D/A: 16 bit, 44.1KHz or 48KHz USB selectable
Digital Audio Interface: TOSLINK in and out, S/PDIF coax (RCA) in
Computer Interface: USB 1.1 compliant, Windows 98SE/ME/2000/XP or newer Mac OS9.1 or newer
Power Requirements: 7-12V DC or 9-12V AC @ 150mA, or USB buss powered
Dimensions: 1.75 in. H x 4.2 in. W x 3.5 in. D (44.5mm x 107mm x 89mm)
Weight: 1.35 lbs. (.61kg)
