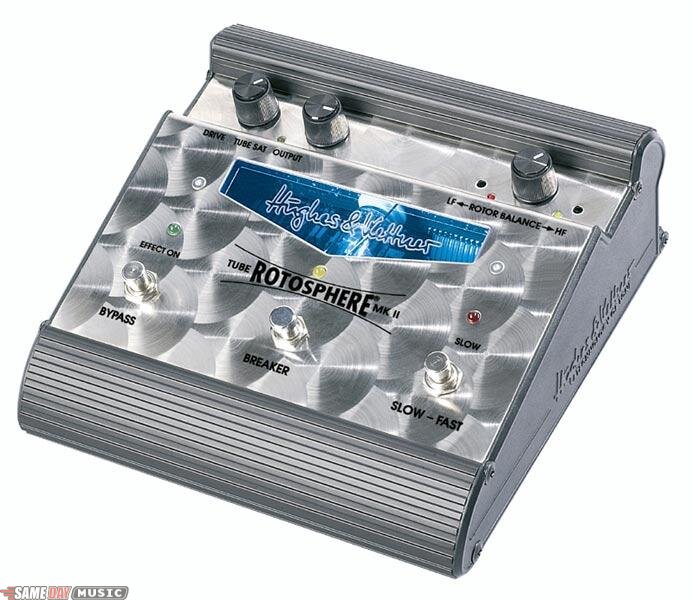

Hughes and Kettner Rotosphere mkII Tube-Driven Rotating-Speaker Simulator Pedal
Rotating-speaker simulator with independent acceleration of high and low frequencies.
This product has been discontinued or is no longer sold by SameDayMusic.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
Rotary cabinets inspired many magical moments of music history. Actually developed for electric organs, pop and rock icons of the
TECHNICAL DESCRIPTION
Weight
With AC power pack: 4.5 lbs.
Without AC power pack: 3.75 lbs.
Dimensions (W x H x D)
205 x 80 x 215mm (8 x 3-1/4 x 8-1/2 in.)
Electrical
Maximum current consumption: 720 mA at 13.4 V AC
Maximum power draw: 10 VA
Power supply: Use original power pack only
Tube: 1 x ECC 83 or 12 AX 7A
Input sensitivity
Right/Mono: -20 to +10 dB
Left: -20 to +10 dB at Input impedance 1 MW
Output level
Right/Mono: 0 to +12 dB
Left: 0 to +12 dB
Impedance: 3 kW
With AC power pack: 4.5 lbs.
Without AC power pack: 3.75 lbs.
Dimensions (W x H x D)
205 x 80 x 215mm (8 x 3-1/4 x 8-1/2 in.)
Electrical
Maximum current consumption: 720 mA at 13.4 V AC
Maximum power draw: 10 VA
Power supply: Use original power pack only
Tube: 1 x ECC 83 or 12 AX 7A
Input sensitivity
Right/Mono: -20 to +10 dB
Left: -20 to +10 dB at Input impedance 1 MW
Output level
Right/Mono: 0 to +12 dB
Left: 0 to +12 dB
Impedance: 3 kW
