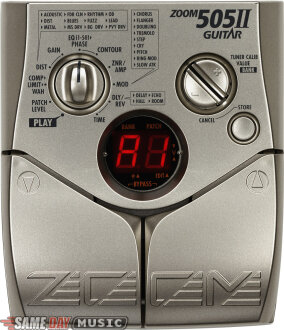

Zoom 505II Guitar Multi-Effects Pedal
36 patch locations. Large rotary selector. Easy-to-read red LED display. Foot switches.
This product has been discontinued or is no longer sold by SameDayMusic.
We recommend this product instead:
Zoom G1 Guitar Multi-Effects Pedal
$59
The G1 represents a significant upgrade from the previous 505 series. The new Zoom G1 pedal features 24-bit/96kHz digital multi-effects and an incredible 40kHz frequency response. The G1 also includes a built-in drum machine, harmonized pitch shifter and an astounding 46 effect types. >More
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
Product rated 8.3 out of 10 (144 ratings)
Read 7 Full Reviews >>
MORE RESOURCES:
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The 505 II's molded chassis with its sleek, flowing lines and Silver finish offers a stylish appearance that's built to last. Extremely durable space-age plastic and a flat control surface take the worry out of carrying it in the same case with other gear.
As part of its enhanced design, the 505 II Guitar Pedal features new distortion effects including Clean, Scream, Wild, and Shred; along with new modulation effects such as Cry, Tremolo, Ring Modulation, Slow Attack, and Echo.
The 505 MKII includes a total of 33 guitar effects, arranged in 7 modules. Up to 9 effects can be used at the same time. In addition to 12 different types of smooth, rich distortion sounds, the 505II features world-famous guitar amp sounds created using Zoom's proprietary VAMS (Variable Architecture Modeling System) technology.
A large rotary selector, easy-to-read red LED display and foot switches make the 505 II truly user friendly. Sounds can be easily stored in up to 36 patch locations.
Other features include: ZNR (Zoom Noise Reduction); 28 hours of continuous operation with 4 size AA alkaline batteries plus AC operation; a rear panel input for an expression pedal; integrated auto chromatic tuner; and more.
TECHNICAL DESCRIPTION
Effects modules: max. 7 simultaneous (5 modules = 1 block)
Banks and patches: 6 banks x 6 patches = 36 patches (rewritable, with memory store capability)
A/D converter: 16-bit, 64x oversampling
D/A converter: 16-bit, 8x oversampling
Sampling Frequency: 31.25 kHz
Input: GUITAR input: standard mono phone jack (rated in/out level -20 dBm/input impedance 470 kilohms)
Output: Standard stereo phone jack (doubles as line and headphone jack) (maximum output level +5 dBm/output load impedance 10 kilohms or more)
Control Input: for optional FP01 or FP02/FS01
Display: 2-digit 7 segment LED
Power requirements: Separately available AC adapter, 9 V DC, 300 mA (center minus plug) (ZOOM AD-0006); Will also work with a 12V adapter. 4 IEC R6 (size AA) batteries.
Battery life: approximately 28 hours continuous operation (manganese batteries)
Dimensions (H x W x D): 40 x 125 x 145mm
Weight (without batteries): 280 g
