Allen and Heath Xone 02 2-Channel DJ Mixer
2 dual stereo channels, mic channel, Penny & Giles VCA Crossfader
Product rated 7.8 out of 10 (4 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Stanton 500.V3 Spherical Cartridge
- from $30
ADDITIONAL VIEWS:
Main
Connectors
Front
Angle

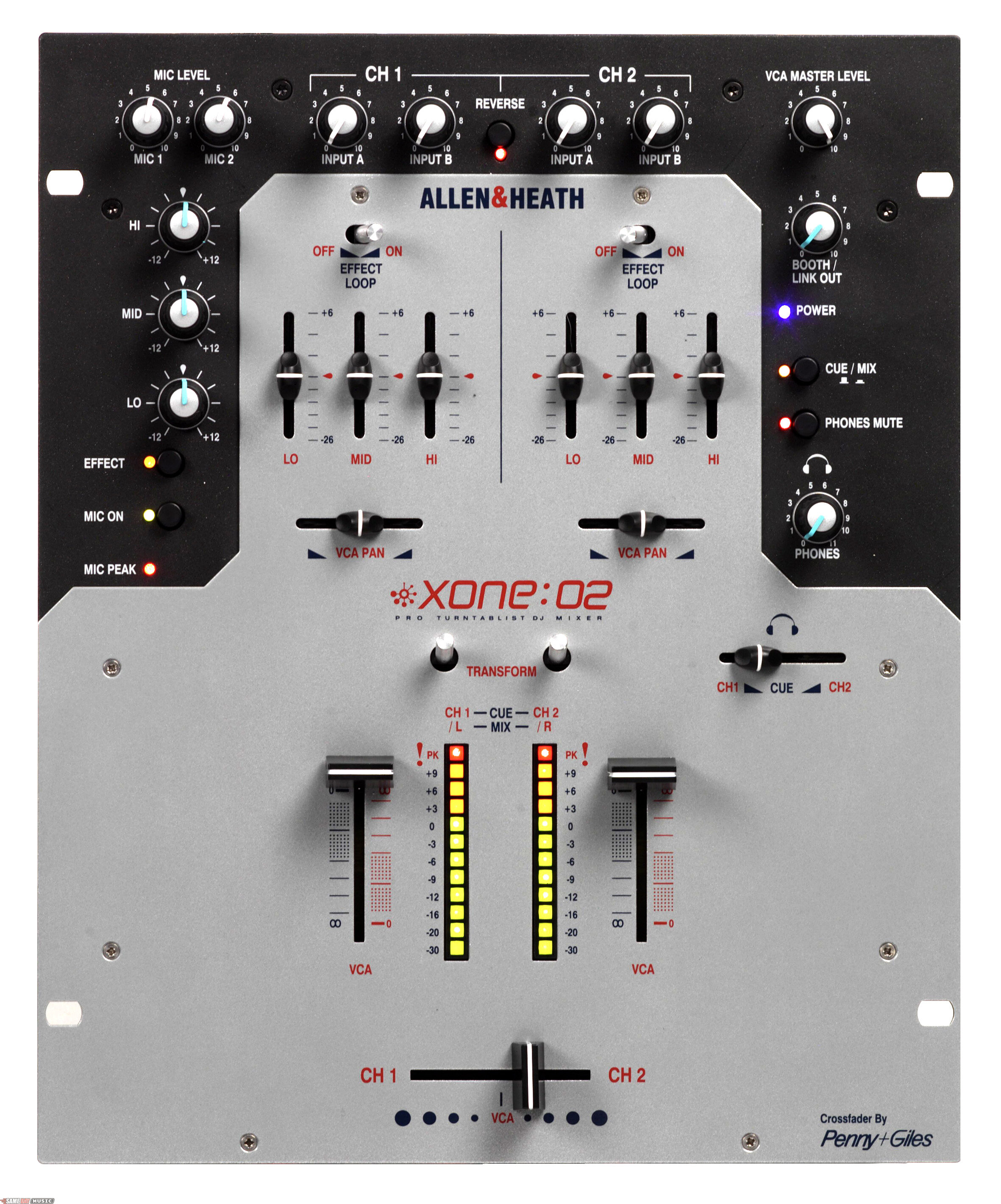

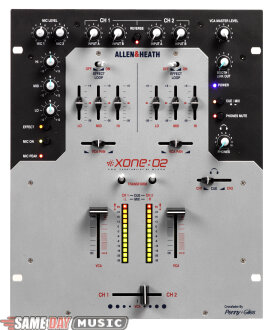

Front Panel
Back Panel
PRODUCT DESCRIPTION
From inputs to outputs, Allen & Heath created Xone:02 to be the world's greatest battle / scratch mixer. The crossfader is a deluxe Penny & Giles VCA design, reversible, they all have contour controls and they can all be easily replaced by removing the steel faceplate. They've kept the fader area clear for action and they've kept controls like pan and EQ out of the way on low profile sliders. Even the transform switches can be rotated to work the way you like them. Don't go into battle with anything less.
Features
2 Dual Stereo Channels - Channels have RIAA [RCA] inputs, switchable to line, plus stereo line level inputs [RCA], each with gain control. Powerful 3 band 'music' EQ on sliders. High quality 45mm faders. Input reverse switch for battle mixing. Pre fade monitoring on 12 segment 3 colour peak reading bar meters
Mic Channel - 2 XLR inputs with separate gain controls, on switch and 3 band EQ with HPF. Routes direct to mix outputs. FX insert on button
Stereo Mix Outputs - Balanced mix outputs on XLR with multi-point VCA level master control. The mix output level can be displayed on the 12 segment 3 colour peak reading bar meters
Booth Output - RCA outputs with level control for booth / link out to additional "daisy-chain" mixers
FX Loop - Channels have an effect loop on switch with silent FET switching. Effect insert points are separate [TRS] inputs and outputs
3 Band EQ - Powerful 3 band 12dB/oct EQ with
Features
2 Dual Stereo Channels - Channels have RIAA [RCA] inputs, switchable to line, plus stereo line level inputs [RCA], each with gain control. Powerful 3 band 'music' EQ on sliders. High quality 45mm faders. Input reverse switch for battle mixing. Pre fade monitoring on 12 segment 3 colour peak reading bar meters
Mic Channel - 2 XLR inputs with separate gain controls, on switch and 3 band EQ with HPF. Routes direct to mix outputs. FX insert on button
Stereo Mix Outputs - Balanced mix outputs on XLR with multi-point VCA level master control. The mix output level can be displayed on the 12 segment 3 colour peak reading bar meters
Booth Output - RCA outputs with level control for booth / link out to additional "daisy-chain" mixers
FX Loop - Channels have an effect loop on switch with silent FET switching. Effect insert points are separate [TRS] inputs and outputs
3 Band EQ - Powerful 3 band 12dB/oct EQ with
TECHNICAL DESCRIPTION
Connections -
Inputs:
Turntable: RCA RIAA Equalisation (Switch-able toline) 2-140mV 47K/330pF
Line: RCA >8k2 ohms -15 / +22 dBu
Effect Return: TRS jack 10k ohms 0dBu
Link IN: RCA 10k ohms 0dBu
MIC: XLR <2k ohms Balanced -10 / -50dBu
Outputs::
Main OUT: XLR: <47 ohms Balanced 0dBu
Effect Send: TRS jack 47 ohms Impedance Balanced 0dBu
Link/Booth: RCA 47 ohms 0dBu
Headphones 30-600 ohms, 75ohms recommended, Jack, Tip =left, Ring = right 500mW RMS into 47 ohms
Maximum output level
MAIN OUT +23dBu into >2K ohm load
EFFECT SEND +21dBu into >2K ohm
LINK/BOOTH +21dBu into >2K ohm
Internal headroom
Channels +21dBu
Mix to output +23dBu
Peak indicators meters: 12bar peak reading Peak on 8dB before clipping
Frequency response: 20Hz-30kHz 0/-1dB
Distortion THD+noise measured at +10dBu 1kHz: 0.04%
Crosstalk channel shutoff measured at 1kHz: <90dB
MIC EI Measured with 150ohm load: 129dB
Residual output noise - non weighted 22Hz-22kHz filter: <88dBu
Mix noise - non weighted 22Hz-22kHz filter: <-81dBu
Power Supply Internal switch mode power unit with auto sensing mains input.
Mains In socket IEC 3 pin
AC Mains 100-240V AC 50/60Hz
Power lead Country dependent
Consumption 30W max
Fuse Rating T500mA 20mm
Internal power rails +/- 16volts
Dimension (W x H x D): 258 x 360 x 90mm (10.2 x 14.2 x 3.5 in)
Weight: 4.5kg / 9.9lb
OdBu = 0.775 Volts rms +4dBu = 1.23V rms
OdBu = 1 Volt rms -10dBV = 316mV rms
Inputs:
Turntable: RCA RIAA Equalisation (Switch-able toline) 2-140mV 47K/330pF
Line: RCA >8k2 ohms -15 / +22 dBu
Effect Return: TRS jack 10k ohms 0dBu
Link IN: RCA 10k ohms 0dBu
MIC: XLR <2k ohms Balanced -10 / -50dBu
Outputs::
Main OUT: XLR: <47 ohms Balanced 0dBu
Effect Send: TRS jack 47 ohms Impedance Balanced 0dBu
Link/Booth: RCA 47 ohms 0dBu
Headphones 30-600 ohms, 75ohms recommended, Jack, Tip =left, Ring = right 500mW RMS into 47 ohms
Maximum output level
MAIN OUT +23dBu into >2K ohm load
EFFECT SEND +21dBu into >2K ohm
LINK/BOOTH +21dBu into >2K ohm
Internal headroom
Channels +21dBu
Mix to output +23dBu
Peak indicators meters: 12bar peak reading Peak on 8dB before clipping
Frequency response: 20Hz-30kHz 0/-1dB
Distortion THD+noise measured at +10dBu 1kHz: 0.04%
Crosstalk channel shutoff measured at 1kHz: <90dB
MIC EI Measured with 150ohm load: 129dB
Residual output noise - non weighted 22Hz-22kHz filter: <88dBu
Mix noise - non weighted 22Hz-22kHz filter: <-81dBu
Power Supply Internal switch mode power unit with auto sensing mains input.
Mains In socket IEC 3 pin
AC Mains 100-240V AC 50/60Hz
Power lead Country dependent
Consumption 30W max
Fuse Rating T500mA 20mm
Internal power rails +/- 16volts
Dimension (W x H x D): 258 x 360 x 90mm (10.2 x 14.2 x 3.5 in)
Weight: 4.5kg / 9.9lb
OdBu = 0.775 Volts rms +4dBu = 1.23V rms
OdBu = 1 Volt rms -10dBV = 316mV rms
