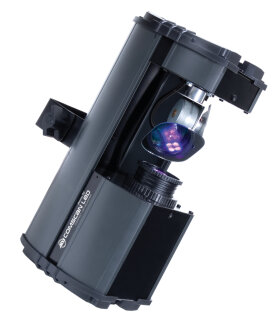

    American DJ Comscan LED System Lighting System

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    American DJ Comscan LED System Lighting System Product Description

    The American DJ Comscan LED is a five channel DMX intelligent, LED scanner. The Comscan LED can operate as a stand alone fixture or in a Master/Slave configuration. The Comscan LED has three operating modes; sound active mode, show mode and DMX control.

    Comscan LED System Includes:

    - 2x Comscan LED Scanners
    - 1x UC3 easy-to-use controller
    - 1x DMX cable


    Features:

    - Compact & portable high performance mobile DMX scanner with an advanced high performance LED source
    - DMX-512 protocol (5 DMX Channels)
    - 4-Button menu system LED Display making it easy to navigate
    - Exciting built-in lighting programs
    - Pan/Tilt Inversion Mode: when using 4 scanners in Master/Slave Scanner 1 & 3 sync opposite Scanner 2 & 4
    - Manual focusing lens
    - Gobo Shake effect (via DMX Controller ONLY)
    - Dimming: 0-100% (via DMX Controller ONLY)
    - Strobe effect
    - X/Y mirror movement
    - 1.8 degree Stepper motors with micro stepping
    - Hanging Bracket + safety hook included
    - Run all night - No duty cycle - Unit stay cool all night
    - No cooling fan required - Very little maintenance needed
    - Extreme long lifetime of the LEDs (30,000 hr. rating)
    - ETL Approved (see user manual for more info)


    Same Day Music is an authorized dealer of American DJ and Audio products.

    American DJ Comscan LED System Lighting System Technical Description

    - Voltage: 100 - 240V 50Hz/60Hz "Auto Sensing"
    - LEDs: 1 X 10 Watt LED
    - Power Consumption: 30W
    - Dimensions (L x W x H): 13.5 x 6.25 x 8 in., 344 x 160 x 200 mm
    - Weight: 8 Lbs. / 3.6 kgs.
    - Beam Angle: 13 Degrees
    - Pan: 166 Degree (DMX); 104 Degree (Sound Active)
    - Tilt: 54 Degree (DMX); 40 Degree (Sound Active)
    - Gobos/Colors: 8 + Spot
    - Fuse: 2 Amp
    - Duty Cycle: None
    - DMX: 5 DMX Channels
    - Sound Active: Yes
    - Working Position: Any Safe, Secure Position
    - Operating Temperature: Do Not Operate in Temperatures above 104 degrees F


    Same Day Music is an authorized dealer of American DJ and Audio products.
