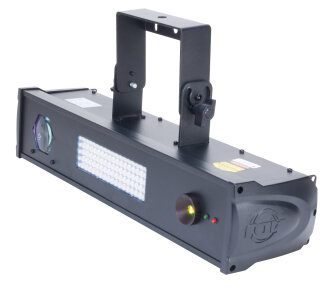

    American DJ Fusion FX Bar 5 Effect Light
    View Larger Image

    More Resources

    Manuals and Documents: Manual
    American DJ and Audio Warranty: If you have additional warranty questions, please call the manufacturer at 323-582-2650
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    Order Now | Limited Qty
    • 2 Day: $14
    • Overnight: $44
    SpeedPlay: 2 payments of $140.00
    $279.99 Seen a lower price?
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    American DJ Fusion FX Bar 5 Effect Light Product Description

    The American DJ Fusion FX Bar 5, a member of the popular Fusion Series, has three effects built into one unit. It features a TRI Color LED Moonflower, LED Strobe effect and an ADJ "Galaxian Style" red and green laser. Users can activate this effect by Sound Activation, linking them in a Master/Slave configuration, by DMX-512 protocol, or by using the easy-to-use UC3 Controller.

    The American DJ Fusion FX Bar 5 is energy efficient. It only draws a maximum of 32 watts, uses long-life LEDs rated at 50,000 hours, and can run all night with no duty cycle. Easily connect multiple American DJ Fusion FX Bar 5s together via the In/Out DMX connections, as well as, the In/Out IEC power connectors. The Fusion FX Bar 5 is a great value offering three effects on the same fixture, plus many professional features that make using this lighting effect enjoyable and rewarding.


    - Unique and compact lighting fixture -- Member of the ADJ Fusion Series
    - Includes 3 FX in one light: bright white LED Wash/Strobe effect + TRI Color LED Moonflower + Red or Green laser effect
    - Over 500 Red or Green laser beams
    - LED Wash/Strobe includes 90 white 5mm LEDs
    - TRI Color LED Moonflower includes one 3W TRI LED + 1.8 degree Stepper Motor for smooth movement
    - DMX-512 protocol (7 DMX Channels)
    - 3 operation modes: DMX, Sound Active & Master Slave
    - Digital DMX Display with 4-button menu for easy navigation
    - Sound active from built-in programs
    - Random strobe slow to fast
    - Linkable via 3-pin XLR connectors
    - Includes mounting bracket
    - Run all night -- no duty cycle
    - 0-100% Dimming (Strobe + Moonflower in DMX Mode)
    - Long life LEDs (50,000 hr. rating)
    - Compatible with the UC3 easy-to-use controller (sold separately)
    - In/Out IEC power connections to daisy-chain power (Power connect up to 10 units)

    Same Day Music is an authorized dealer of American DJ and Audio products.

    American DJ Fusion FX Bar 5 Effect Light Technical Description

    - Laser diode:
    - 30mW Green Laser
    - 80mW Red Laser (FDA Approved)
    - Multi-voltage operation: AC 100V-240V 50/60Hz
    - Power Consumption: 32 watts
    - Dimensions (including bracket - L x W x H): 21.5 x 7 x5.75 in. / 542 x 178 x 143 mm
    - Weight: 11 lbs. / 4.7kg.

    Same Day Music is an authorized dealer of American DJ and Audio products.
    Shipping Weights and Dimensions
    Shipping Weight: 12 lbs
    Shipping Dimensions: 25 x 11 x 9 in
