Product Description

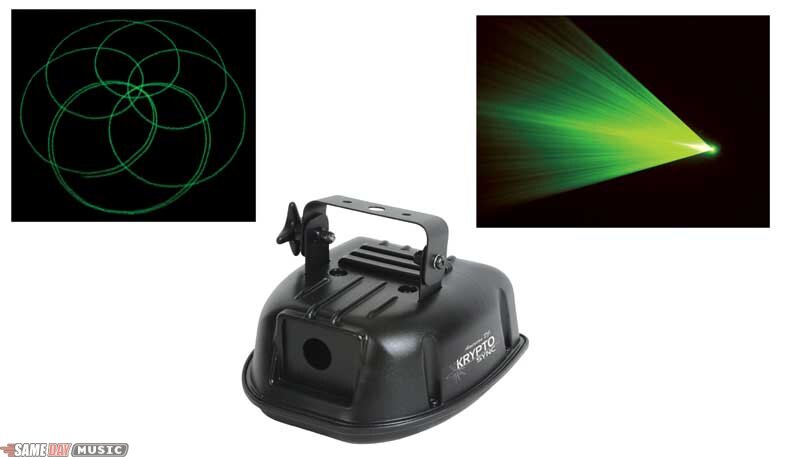

The American DJ Krypto Sync is a compact 4.9mW syncable green laser with pre-programmed geometric shapes. Its compact size (8 x 7.5 x 6 in., just 2 lbs.) makes it perfect for the mobile DJ or small club. Features include 3 operation modes: Sound active, Master Slave & Manual. You can even create various custom shapes in manual mode. The Krypto Sync is fan cooled.

Features
Pre-programmed geometric shapes

Compact 4.9mW syncable green laser

3 operation modes: Sound active, Master Slave & Manual

Create various custom shapes in manual mode

Fan cooled

Pattern Knob 2 - This knob, when adjusted, generates different patterns when in manual mode.

Pattern Knob 1 - This knob, when adjusted, generates different patterns when in manual mode.

Mode Switch - This button is used to switch stand-alone mode or sound active, master/slave mode. When the switch is in the left postion sound active, master/slave mode will be active. When the switch is in the right postion stand-alone manual mode will be active.

Scene Elapsed Time Adjust Knob - This knob will only work in Sound Active mode. This knob adjusts the time it takes for the pattern to change. When the knob is turned to the maximum level it will take 8 seconds for the pattern to change.

Signal Output - This output connection is used when linking unit's in master/slave configuration. The connection uses a 3.5mm stereo microphone jack. Output is used when the unit has been selected as the master, and when linking more than one slave.

Signal Input - This input connection is used when linking unit's in master/slave configuration. The connection uses a 3.5mm stereo microphone jack. The input is used when a unit has been selected as a slave unit. The input connection requires a 3.5mm microphone jack.

Master LED - This green LED will glow when the unit has been designated a Master unit, in a Master/Slave configuration.

Dip Switches - When dipswitch #1 is in the 'On' postion, the unit is designated as the Master, in master/slave mode.

AC Adapater Connection - This connection is used to supply main power to the fixture. Use only the supplied AC adapter. Be sure the main power matches the required power of your fixture.

Microphone - This microphone receives external low frequencies to trigger the unit in Sound-Active mode. This microphone is designed to receive low frequency sounds only, tapping on the microphone and high pitch sounds may not trigger the unit.

Technical Description

Laser diode: 4.9mW, 532nm

Dimensions (LxWxH): 8 x 7.5 x 6 in. / 205 x 190 x 150mm

Weight: 2 lbs. / 0.7kg
