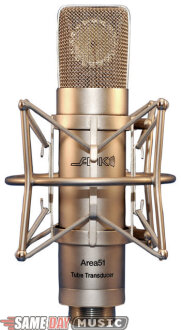

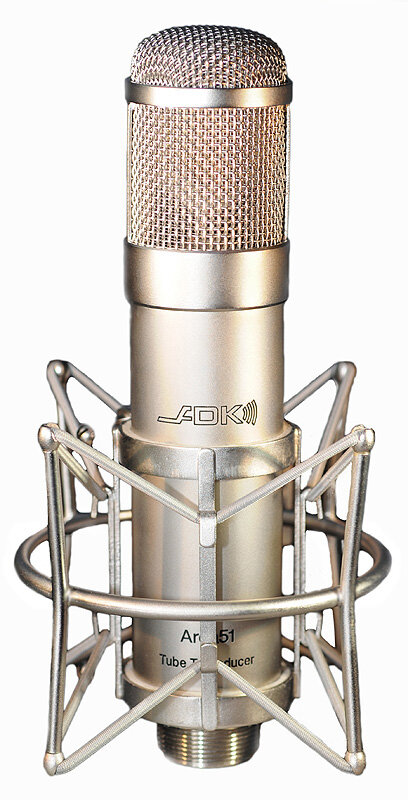

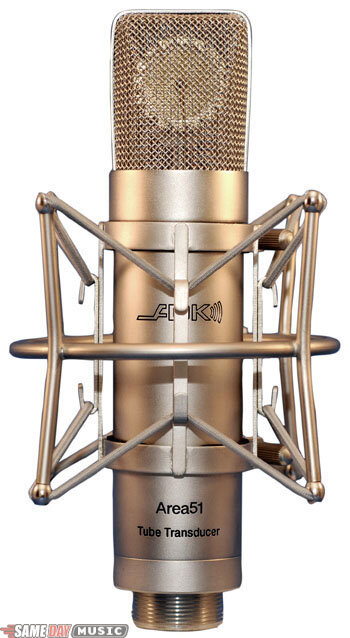

ADK Microphones TT Area51TT Multi-Pattern Tube Condenser Microphone

The Area51TT multi-pattern remotely-variable valve (tube) is a Class A tube switchable 9-polar pattern condenser mic with dual 1-inch diaphragms. It includes a Turbo-Tube power supply, Super-Mount, multi-pin cable, foam windscreen, large premium flight case, includes factory stock military grade 6072A vacuum tube (valve).

Applications: male and female vocals, acoustic and electric guitar, reed instruments (sax), strings (violin, viola, cello, and contrabass), drum overheads, or anywhere you would use a vintage tube microphone. Great for broadcast applications, too! Multi-Patterns offer you a palette of tone-colors / tone-textures. Amazing! Ray Charles tracked his final 3 CD's on the TT or CE. "The last Mic Mr. Charles ever fell in love with". Terry Howard, quoted in Electronic Musician.

"I have been using the ADK TT mic on the most recent sessions for the "Rock and Roll Fantasy Camp" at both Capitol Studios and East West Studios with a wide variety of vocal talent, from male rock screamers to powerful 4 8-octave range female singers. There was a remarkable consistency and predictability in the way the mic responded. I always knew that whatever I threw at it, I would get a satisfying result... The top end had a nice crispness to it without it ever sounding unnatural."

-- Eddie Kramer

Same Day Music is an authorized dealer of ADK products.

Type: Class A Valve (Tube) Condenser Pressure Gradient Mic with Dual 1 inch Six Micron Diaphragms with Dedicated Turbo-Tube Power Supply and Remote Polar Pattern Controller.

Polar Pattern: 9 Polar Patterns Including Omni, Cardioid, Figure 8 and Six Intermediate Positions

Sensitivity: 14mV/Pa = -37dBV (0 dBV = 1v/Pa)

Frequency Range: 20 to 20k Hz

Impedance: <250 Ohms

Recommended Load Impedance: 1000 ohms

Max. SPL for 1% THD @1000Hz: 125dB

Equivalent Noise Level: IEC 286-4 (A Weighted) 18 dB Typical

S/N Ratio 1Pa: 76dB

Power Requirement: Dedicated ADK Power Supply

Rel. Humidity: 90% (C) / 85% (C)

Connector: 7 Pin Multi-Pin Cable (Supplied)

Size: Diameter 53mm (2.1 in.) Length 225mm (8.9 in.)

Net Weight: 750g (26.5 oz)
