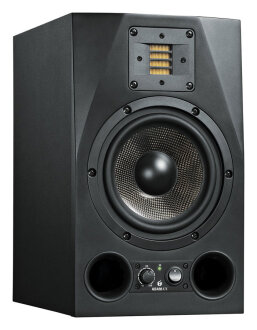

    Adam Audio A7X Powered Studio Monitor

    X-ART tweeter with extended response up to 50kHz. 7-inch woofer. 150-watts of bi-amplification.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Adam A7X Powered Studio Monitor Product Description

    The predecessor to the A7X, the A7, became the most famous of all ADAM monitors in a very short time. Not only has it been reviewed over three dozen times with outstanding results, it has also received numerous awards. The A7 quickly gained mass appeal, praised in many of the world's largest internet forums. Still today, the A7 are the reference monitors in many smaller studios.

    With the A7X, ADAM Audio proudly presents the evolution of a legend. It takes everything that made the A7 such an outstanding speaker to a higher level.

    Driver Technology

    The first aspect that distinguishes the old from this model is the X-ART tweeter. The 'X' stands for 'eXtended frequency response' and thus for one of the features of the Accelerating Ribbon Technology that has been drastically improved: the frequency response. It now extends all the way up to 50kHz. In addition, the X-ART tweeter has a higher efficiency and higher maximum sound pressure levels.

    The perfect integration with the lower frequencies has been achieved with a designed 7" midwoofer. It has been redesigned with a much bigger voice coil (1.5") and is driven by an amplifier with twice the power compared to its predecessor. This combination produces an amazing sound and pressure levels with an almost distortion-free musical reproduction.

    Amplifiers / Controls

    Each driver has its own dedicated amplifier. A 50W A/B amp is responsible for the X-ART tweeter, while the midwoofer is being driven by a 100W PWM amp. The front panel includes a power switch and a control for the volume that retains the volume setting independently from the on/off switch.

    On the rear panel are several additional controls: a gain for the high frequencies (+/- 4dB) and two shelf filters for high and low frequencies. To ensure greater compatibility, there are both XLR (balanced) and RCA (unbalanced) connectors.

    Same Day Music is an authorized dealer of Adam Audio products.

    Adam A7X Technical Description

    - Number: 1
    - Basket O: 7" (175 mm)
    - Voice coil O: 1.5" (38 mm)
    - Cone material: Carbon/Rohacell/Glass Fiber

    - Number: 1
    - Type: X-ART
    - Diaphragm area: 4 inch (2420 mm)
    - Equiv. Diaphragm O: 2" (56 mm)
    - Velocity transform ratio: 4:1
    - Diaphragm weight: 0.17 g

    Built-in Amplifiers
    - Mid-Woofer: 1
    - Type: PWM
    - Amp. power RMS / music: 100 W / 150 W
    - Tweeter: 1
    - Type: A/B
    - Amp. power RMS / music: 50 W / 75 W

    Control panel
    - Input Sensitivity: -()() to +14 dB
    - High shelve > 5 kHz: +/-6 dB
    - Low shelve < 300 Hz: +/-6 dB
    - Tweeter gain: +/-4 dB

    Input connectors
    - Analog: XLR / RCA

    General data
    - Frequency response: 42 Hz - 50 kHz
    - THD 90dB/1m > 100 Hz: <=0.5 %
    - Long term output: >=106 dB
    - Max. peak: >=114 dB
    - Crossover frequencies: 2500 Hz
    - Input impedance: 30 KOhm
    - Weight: 20.3 lb (9,2 kg)
    - Magnetically shielded: No
    - Height x Width x Depth: 13.5" (337 mm) x 8" (201 mm) x 11" (280 mm)
    - Warranty: 5 Years

    Same Day Music is an authorized dealer of Adam Audio products.
