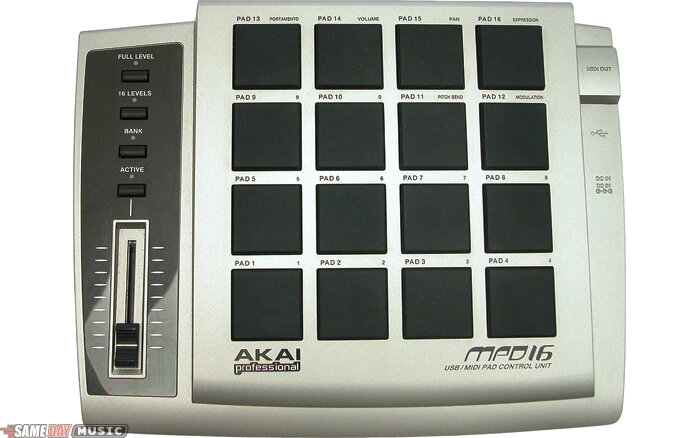

Akai MPD16 USB MIDI Pad Control Surface
Powered via computer USB or the optional AC adapter.
This product has been discontinued or is no longer sold by SameDayMusic.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
RECOMMENDED ACCESSORIES:
- Hosa Standard Black MIDI Cable
- from $4

FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
Expanding on the legacy of the legendary MPC series, Akai Professional introduces the MPD16 USB/MIDI Pad Control Surface. The MPD16 is a self-contained unit that connects via USB and/or MIDI to computers and sound engines such as the new Akai Z4 and Z8 samplers, which include drum program set-ups as well as the standard keyboard-assigned programming.
The functionality of the MPD16 is designed with simplicity in mind. The days of programming drum sequences via a keyboard are gone forever. 16 MPC-spec pressure-and-velocity sensitive drum pads generate Note-On velocity when tapped. In Full-Level mode, the MPD16 produces data with velocity value of 127, regardless of the velocity of the pad tapped and in 16-Level mode it allows you to generate the note velocity in 16 steps with 16 pads. The active pad (note number) is the last pad played just before the 16-Level key was pressed. The Bank key switches between banks 1 and 2 allowing access to 2 separate banks of sounds. The Active key enables the fader which outputs MIDI control changes. The various parameter settings, such as MIDI Note Assign, MIDI Channel, MIDI Control Change, etc. can be assigned from the computer via USB.
MPD16 set-up is facilitated with the MPD16 Utility and PC/MAC driver software CDROM. The MPD16 can be powered via computer USB or the optional AC adapter.
The functionality of the MPD16 is designed with simplicity in mind. The days of programming drum sequences via a keyboard are gone forever. 16 MPC-spec pressure-and-velocity sensitive drum pads generate Note-On velocity when tapped. In Full-Level mode, the MPD16 produces data with velocity value of 127, regardless of the velocity of the pad tapped and in 16-Level mode it allows you to generate the note velocity in 16 steps with 16 pads. The active pad (note number) is the last pad played just before the 16-Level key was pressed. The Bank key switches between banks 1 and 2 allowing access to 2 separate banks of sounds. The Active key enables the fader which outputs MIDI control changes. The various parameter settings, such as MIDI Note Assign, MIDI Channel, MIDI Control Change, etc. can be assigned from the computer via USB.
MPD16 set-up is facilitated with the MPD16 Utility and PC/MAC driver software CDROM. The MPD16 can be powered via computer USB or the optional AC adapter.
TECHNICAL DESCRIPTION
Pads
16 x 2 banks
Velocity sensitive MPC-style pads
Keys
Full level -- All pads to maximum output velocity (127)
16 Levels -- Each pad offers progressive level for the last selected/used pad
Bank -- Selects the pad bank
Active -- Enables the slider
Controls: Assignable slider
Connections
MIDI out
USB
9V DC (95mA) - not required when used with USB equipped Z4/8
Physical
Dimensions: 264 (10.39 in.) W x 205 (8.07 in.) D x 40 (1.5 in.) H
Weight: 90g
Supplied Accessories
USB driver and editor software on CD-ROM
39.37 in. USB cable (1 meter)
PDF operator's manual
16 x 2 banks
Velocity sensitive MPC-style pads
Keys
Full level -- All pads to maximum output velocity (127)
16 Levels -- Each pad offers progressive level for the last selected/used pad
Bank -- Selects the pad bank
Active -- Enables the slider
Controls: Assignable slider
Connections
MIDI out
USB
9V DC (95mA) - not required when used with USB equipped Z4/8
Physical
Dimensions: 264 (10.39 in.) W x 205 (8.07 in.) D x 40 (1.5 in.) H
Weight: 90g
Supplied Accessories
USB driver and editor software on CD-ROM
39.37 in. USB cable (1 meter)
PDF operator's manual
REVIEWS
- "Double triggering?? :-(" - Read More
