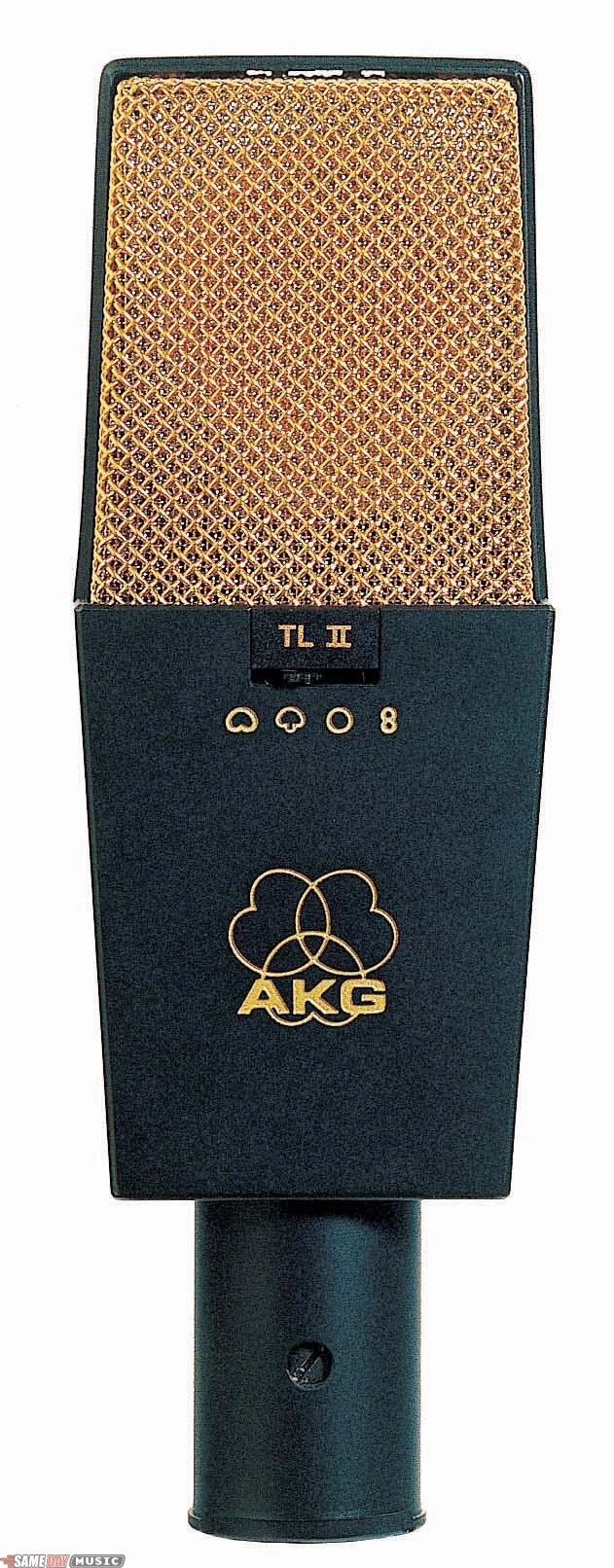

AKG C414 B-TL II Transformerless 4-Pattern Condenser Microphone

Contains a capsule matching the specifications of the legendary AKG C12 microphone. Matte Black finish.

This product has been discontinued or is no longer sold by SameDayMusic.

We recommend this product instead:

Main

AKG C414 B-XL II 5-Pattern Condenser Microphone

$1,049 -$1,187

With the introduction of the next generation C 414 B-XL models, AKG sets new benchmarks for useful features, improved technical specifications, ease of use and available accessories. All of these improvements are answers to requests from ever-demanding recording studios, broadcast stations and concert engineers, but with the basic sonic character of the legendary C 414 unaltered. >More

  • Ships free
  • Guaranteed Same Day

Shop our website for related products:

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

Product rated 7.8 out of 10 (4 ratings)::: ::: ::: ::: ::: ::: ::: :.. .

preview image
View larger image
ADDITIONAL VIEWS:

  • Main

  • Figure 8 Specs

  • Package Content

  • W 414

  • H 100

  • Hypercardioid Specs

  • H 100 Side

  • Omni Specs

  • Cardioid Specs

  • Included Case

MORE RESOURCES:

Product Documents:

FIND SIMILAR PRODUCTS:

PRODUCT DESCRIPTION

The C414BTLII is a 1 in. dual diaphragm pressure gradient microphone, offering 4 polar patterns (omni, cardioid, hypercardioid, and figure eight), with 3-position bass cut switch (12dB/octave, 75 Hz, or 150 Hz) and switchable pre-attenuation pad (-10dB or -20dB) to ensure accurate reproduction and up to 160dB SPL capacity. Its gold grill and lettering distinguishes it from C414BULS. The C414BTLII comes with W414 windscreen, H-100 suspension mount, SA183 stand adapter, and serialized frequency response chart.

TECHNICAL DESCRIPTION

Frequency Range: 10 Hz to 20 kHz

Polar Patterns: Cardioid, Hypercardioid, Omnidirectional, and Figure-8

Preattenuation: -10 dB, -20 dB switchable

Basscut Filter: 12 dB/octave roll-off at 75 Hz or 150 Hz

Sensitivity: 12.5 mV/Pa (-38 dBV) (all patterns)

Impedance: 180 ohms

Equivalent Noise Level: 14 dB-A

Maximum SPL for 0.5% THD 14 0dB (160 dB @ -20 dB) at 1kHz 134dB (154dB@-20dB) 30Hz-20kHz

Power Requirement: 9-52 V phantom power to DIN 45596

Current Consumption: approximately 2 mA

Size: 141 x 45 x 35 mm (5.6 x 1.8 x 1.4 in.)

Net/Shipping Weight: 320/920 g (11.3 oz./2.1 lbs.)
