AKG C518M MicroMic Drum Microphone
C 518 ML for use with the B 29 L battery power supply, AKG WMS Series bodypack transmitters, or the MPA V L adapter for external phantom powering.
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Whirlwind MC20 Mic Cable
- from $10
ADDITIONAL VIEWS:
Main
Graphs
PRODUCT DESCRIPTION

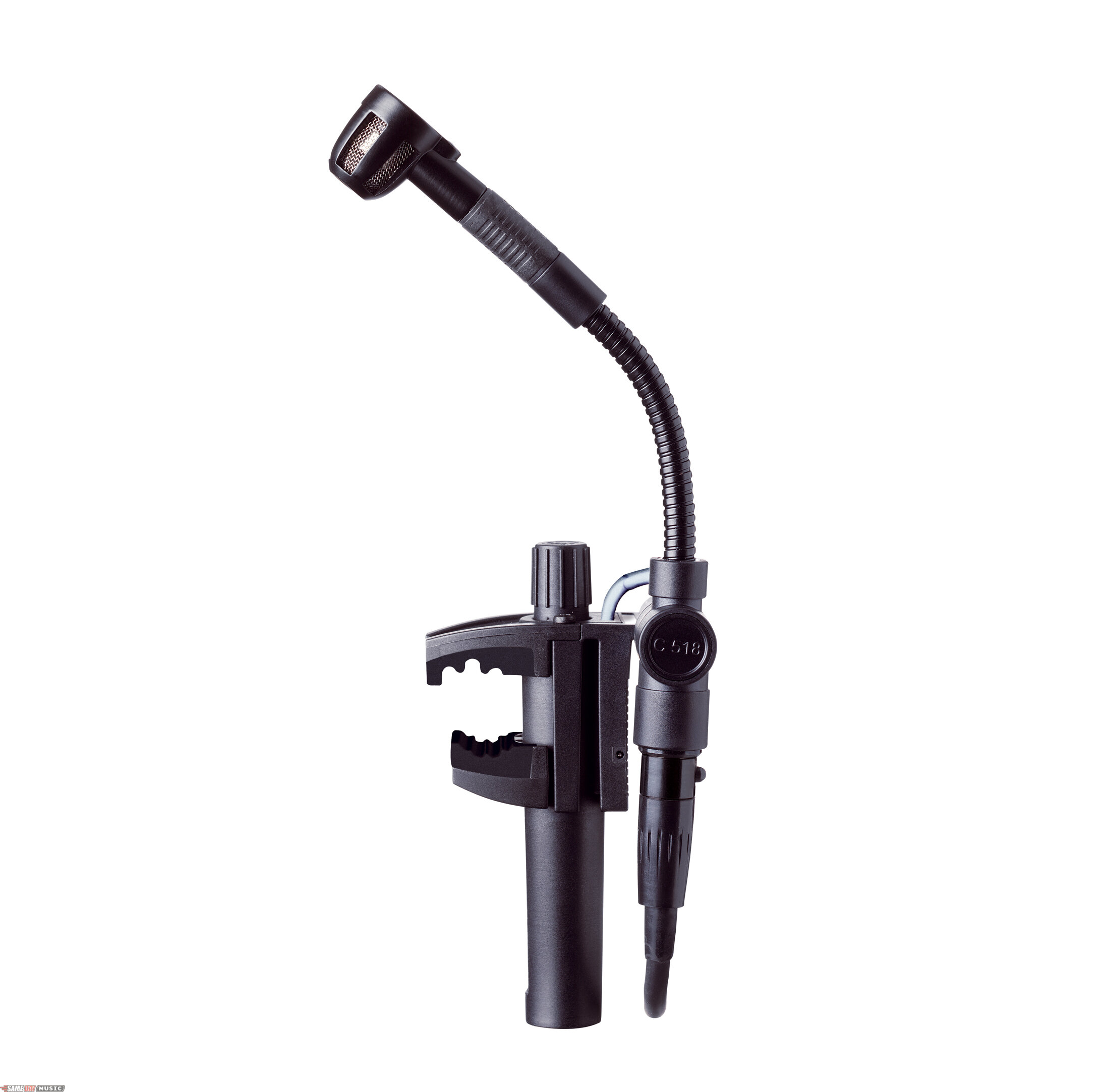

The ultimate miniature condenser microphone for drums and percussions. Its cardioid polar pattern rejects overspill from nearby instruments. A continuously adjustable vise-type clamp makes it easy to fix the microphone securely on the top hoop of most drums or percussion instruments. An external shock mount provides high mechanical-noise rejection. A special snap-on stabilizer knee will keep the gooseneck bent at a defined angle. The C 518 M features an integrated, switchable bass cut for adjusting the microphone’s frequency response to your instrument’s sound.
The unique adapter plate A 400 allows easy attachment of the AKG pocket transmitters.
Versions:
C 518 M for external phantom powering.
C 518 ML for use with the B 29 L battery power supply, AKG WMS Series bodypack transmitters, or the MPA V L adapter for external phantom powering.
Features
Miniature cardioid condenser clamp-on microphone with shock mounted capsule
Ideal for miking drums and percussions
Including wireless direct adapter for easy use with AKG pocket transmitters
Detachable microphone cable
Integrated gooseneck
Continuously adjustable vise type clamp
The unique adapter plate A 400 allows easy attachment of the AKG pocket transmitters.
Versions:
C 518 M for external phantom powering.
C 518 ML for use with the B 29 L battery power supply, AKG WMS Series bodypack transmitters, or the MPA V L adapter for external phantom powering.
Features
Miniature cardioid condenser clamp-on microphone with shock mounted capsule
Ideal for miking drums and percussions
Including wireless direct adapter for easy use with AKG pocket transmitters
Detachable microphone cable
Integrated gooseneck
Continuously adjustable vise type clamp
TECHNICAL DESCRIPTION
Polar pattern
cardioid
Frequency range
60 Hz to 20 kHz
Sensitivity
5 mV/Pa (-46 dBV)
Max. SPL
130/132 dB SPL (for 1%/3% THD)
Equivalent noise level
31 dB(A)
Signal/noise ratio (A-weighted)
63 dB
Impedance
<= 200 ohms
Recommended load impedance
>= 2000 ohms
Current consumption
<= 2 mA
Power requirement
B 29 L battery power supply, MPA V L phantom adapter, AKG WMS bodypack
transmitters
Connector
3-pin mini XLR
Cable
1.5 m (5 ft.)
Finish
matte black
Dimensions
Length: 200 mm (7.9 in.) (microphone only); max. width: 47 mm (1.9 in.)
Net weight
C 518 M: 220 g (7.8 oz.)
C 518 ML: 110 g (3.9 oz.)
(microphone and cable)
Shipping weight
C 518 M: 450 g (15.9 oz.)
C 518 ML: 330 g (11.7 oz.)
cardioid
Frequency range
60 Hz to 20 kHz
Sensitivity
5 mV/Pa (-46 dBV)
Max. SPL
130/132 dB SPL (for 1%/3% THD)
Equivalent noise level
31 dB(A)
Signal/noise ratio (A-weighted)
63 dB
Impedance
<= 200 ohms
Recommended load impedance
>= 2000 ohms
Current consumption
<= 2 mA
Power requirement
B 29 L battery power supply, MPA V L phantom adapter, AKG WMS bodypack
transmitters
Connector
3-pin mini XLR
Cable
1.5 m (5 ft.)
Finish
matte black
Dimensions
Length: 200 mm (7.9 in.) (microphone only); max. width: 47 mm (1.9 in.)
Net weight
C 518 M: 220 g (7.8 oz.)
C 518 ML: 110 g (3.9 oz.)
(microphone and cable)
Shipping weight
C 518 M: 450 g (15.9 oz.)
C 518 ML: 330 g (11.7 oz.)
REVIEWS
