AKG C519M MicroMic Brass Microphone
C 519 ML for use with the B 29 L battery power supply, AKG WMS Series bodypack transmitters, or the MPA V L adapter for external phantom powering.
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Graphs
PRODUCT DESCRIPTION

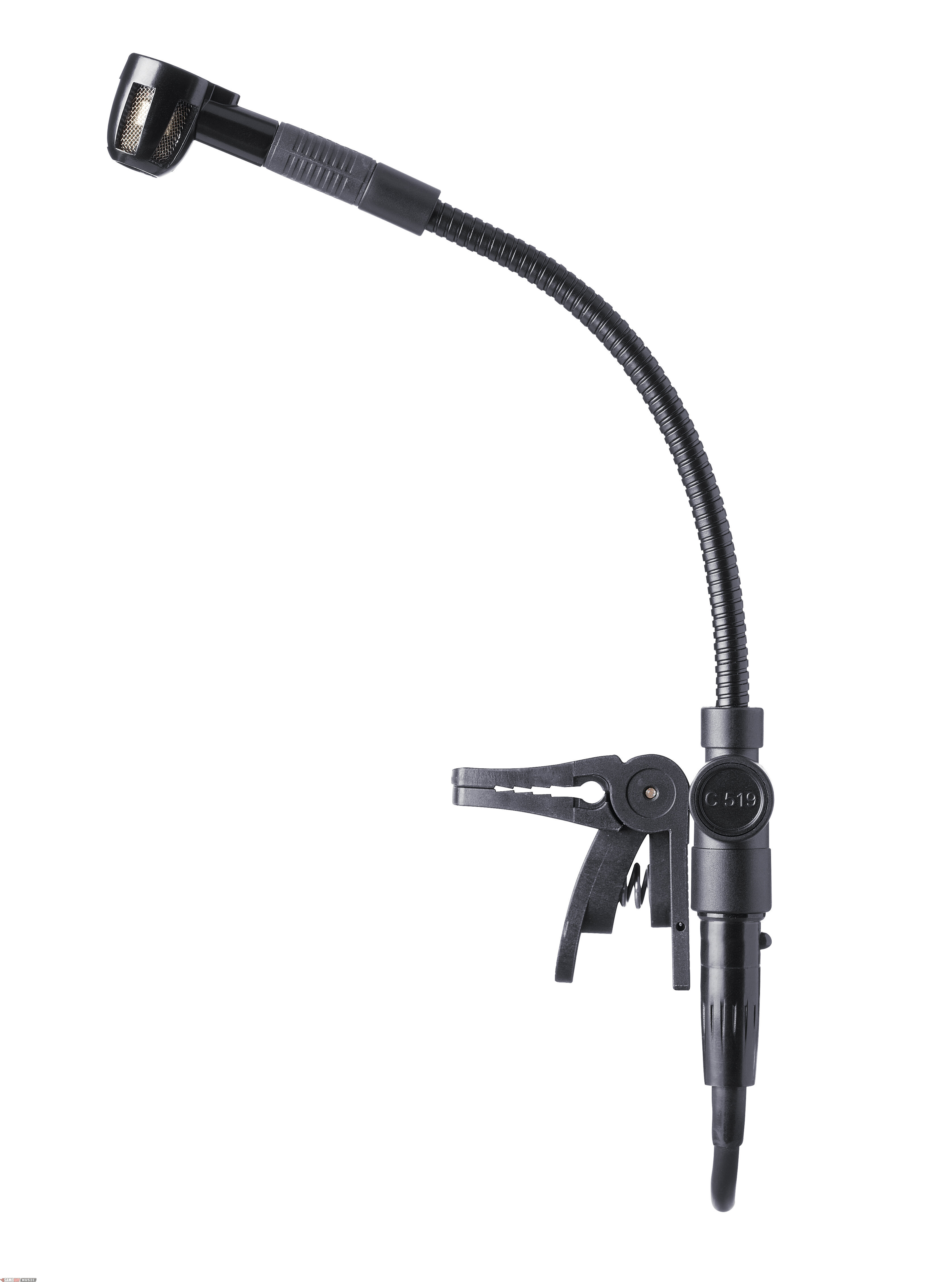

The C 519 clips onto the bell of a trumpet, saxophone, trombone, tuba, or any other wind instrument (e.g. didgeridoo). Room to move for the wind section at last! Its tight cardioid polar pattern makes the C 519 an ideal tool for use near monitor wedges, and its flat frequency response delivers a natural, powerful, and clear sound.
The C 519 M features an integrated, switchable bass cut for adjusting the microphone’s frequency response to your instrument's sound. The unique adapter plate A 400 allows easy attachment of the AKG pocket transmitters.
Versions:
C 519 M for external phantom powering.
C 519 ML for use with the B 29 L battery power supply, AKG WMS Series bodypack transmitters, or the MPA V L adapter for external phantom powering.
Features
Miniature condenser clip-on microphone for wind instruments, drums, and percussions
Miniature gooseneck for accurate microphone alignment
Including wireless direct adapter for easy use with AKG pocket transmitters
Detachable microphone cable
Transducer shock mount for high mechanical-noise rejection
The C 519 M features an integrated, switchable bass cut for adjusting the microphone’s frequency response to your instrument's sound. The unique adapter plate A 400 allows easy attachment of the AKG pocket transmitters.
Versions:
C 519 M for external phantom powering.
C 519 ML for use with the B 29 L battery power supply, AKG WMS Series bodypack transmitters, or the MPA V L adapter for external phantom powering.
Features
Miniature condenser clip-on microphone for wind instruments, drums, and percussions
Miniature gooseneck for accurate microphone alignment
Including wireless direct adapter for easy use with AKG pocket transmitters
Detachable microphone cable
Transducer shock mount for high mechanical-noise rejection
TECHNICAL DESCRIPTION
Polar pattern
cardioid
Frequency range
60 Hz to 20 kHz
Sensitivity
5 mV/Pa (-46 dBV)
Max. SPL
130/132 dB SPL (for 1 %/3 % THD)
Equivalent noise level
31 dB(A)
Signal/noise ratio (A-weighted)
63 dB
Impedance
<= 200 ohms
Recommended load impedance
>= 2000 ohms
Current consumption
<= 2 mA
Power requirement
B 29 L battery power supply, MPA V L phantom adapter, AKG WMS bodypack transmitters
Connector
3-pin mini XLR
Cable
1.5 m (5 ft.)
Finish
matte black
Dimensions
Length: 213 mm (8.4 in.) (microphone only); max. width: 47 mm (1.9 in.)
Net weight
C 519 M: 195 g (6.9 oz.)
C 519 ML: 85 g (3 oz.)
(microphone and cable)
Shipping weight
C 519 M: 430 g (15.2 oz.)
C 519 ML: 310 g (11 oz.)
cardioid
Frequency range
60 Hz to 20 kHz
Sensitivity
5 mV/Pa (-46 dBV)
Max. SPL
130/132 dB SPL (for 1 %/3 % THD)
Equivalent noise level
31 dB(A)
Signal/noise ratio (A-weighted)
63 dB
Impedance
<= 200 ohms
Recommended load impedance
>= 2000 ohms
Current consumption
<= 2 mA
Power requirement
B 29 L battery power supply, MPA V L phantom adapter, AKG WMS bodypack transmitters
Connector
3-pin mini XLR
Cable
1.5 m (5 ft.)
Finish
matte black
Dimensions
Length: 213 mm (8.4 in.) (microphone only); max. width: 47 mm (1.9 in.)
Net weight
C 519 M: 195 g (6.9 oz.)
C 519 ML: 85 g (3 oz.)
(microphone and cable)
Shipping weight
C 519 M: 430 g (15.2 oz.)
C 519 ML: 310 g (11 oz.)
