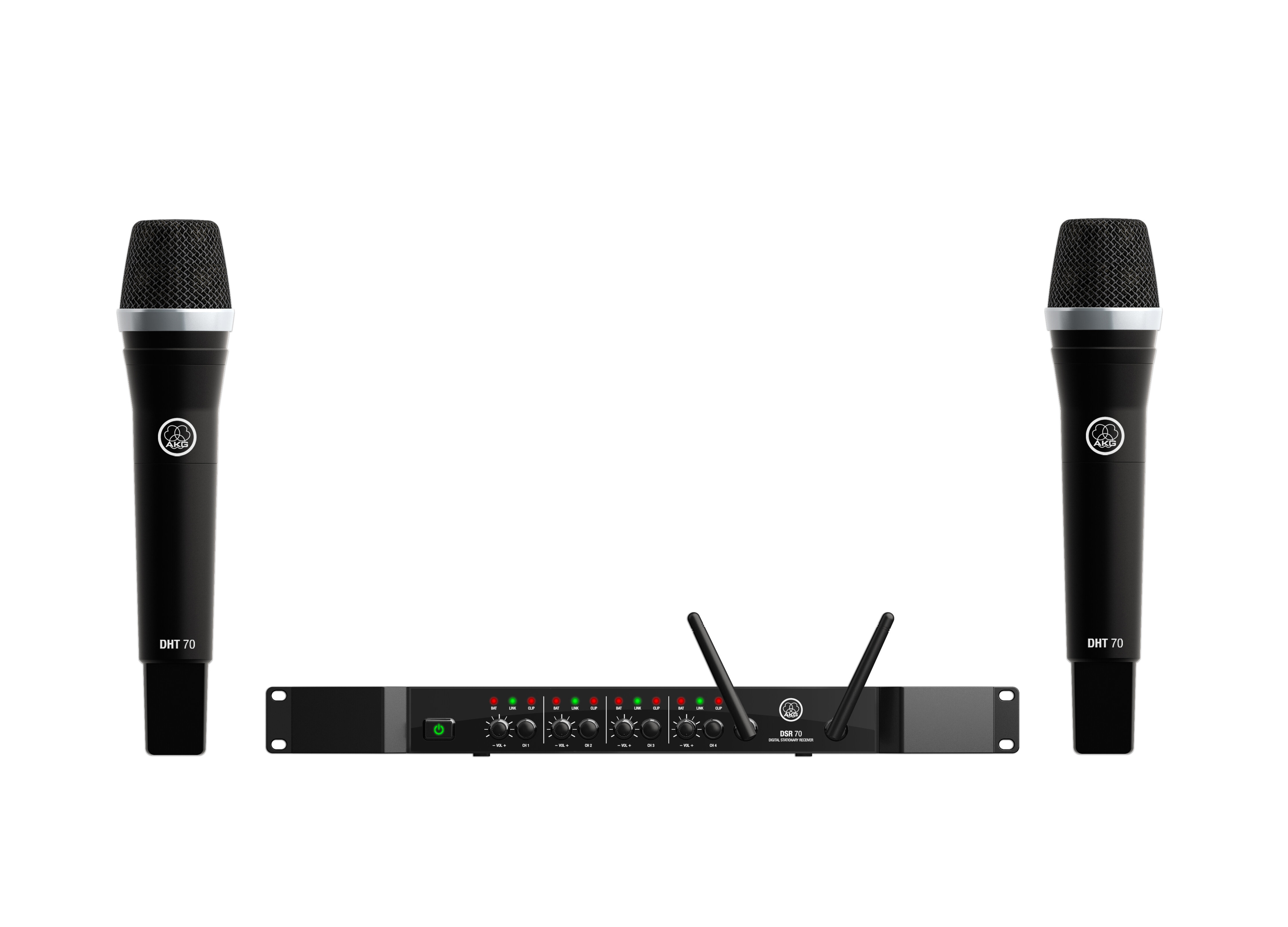

AKG DMS70 Q Vocal Set Digital Handheld Microphone Wireless System (4-Channel, Dual Transmitter)

The AKG DMS70 QR Vocal Set digital handheld wireless system is the first true uncompressed digital wireless system. It works in the 2.4 Ghz ISM band and is worldwide license free for every customer. The Bidirectional communication between the transmitters and receiver enables an intelligent system and leads to a dimension in ease of use. The AKG DSR70 is an up to 4 channel receiver and has the functionality of 4 channels mix down directly to the balanced XLR sum output.

Features

- 4 channel mixer
- AES 128 bit Encryption
- Dynamic frequency selection
- 120 dB studio audio quality
- Patented D5 acoustics
- Bidirectional communication
- Auto power off
- OFDM Modulation
- True uncompressed audio transmission

Includes- 1x DSR70 receiver
- 2x DHT70 handheld transmitter with D5 capsule
- 2x stand adapter
- 19 inch rackmount kit
- 4x AA battery
- EU/US/UK power supply

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Same Day Music is an authorized dealer of AKG products.

- DSR 70 Receiver:

- Frequency range: Dynamic frequency selection (DFS) in 2,4 GHz ISM band

- Diversity System: Digital controlled antenna diversity

- RF Output: Max. 100 mW

- Operating range: Indoor 30m NLOS, Outdoor 50m

- Modulation: Orthogonal Frequency-Division Multiplexing - OFDM

- Encryption: 128 Bit AES

- Audio bandwidth: 20 - 20 000 Hz (+/- 1 dB)

- T.H.D. :

- Gain Potis: 0 - 1,4 Vrms

- Overall dynamic range: typ. 120 dB(A)

- Audio outputs:

- 4 x XLR channel balanced

- 1x XLR sum balanced

- Power supply: 12 Vdc, 0,5 A, EU/US/UK/Aus adapters

- Dimensions:

- Standalone: 315 mm - 42 mm - 147 mm

- Rack: 482 mm - 42 mm - 147 mm

- Net / Shipping Weight: 1180 g

- Standard Accessories:

- Power supply

- Rack mount kit

- DHT 70 Digital Handheld Transmitter:

- Frequency range: Dynamic frequency selection (DFS) in 2,4 GHz ISM band

- Diversity System: Digital controlled antenna diversity

- RF Output: Max. 100 mW

- Operating range: Indoor 30m NLOS, Outdoor 50m

- Modulation: Orthogonal Frequency-Division Multiplexing - OFDM

- Encryption: 128 Bit AES

- Audio bandwidth: 70 - 20 000 Hz (+/- 3 dB)

- T.H.D. :

- Gain switch:

- max SPL:

- max SPL:

- Overall dynamic range: typ. 120 dB(A)

- Powering: 2x AA Alkaline ~6h , 2x AA NiMH ~7h

- Dimensions: 233 mm - 51 mm

- Net / Shipping Weight: 260 g

- Standard Accessories:

- 2x AA Batteries

- 1x stand adapter

Same Day Music is an authorized dealer of AKG products.

Shipping Weights and Dimensions

Shipping Weight: 7 lbs

Shipping Dimensions: 20 x 15 x 3 in
