Product Description

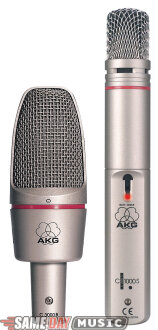

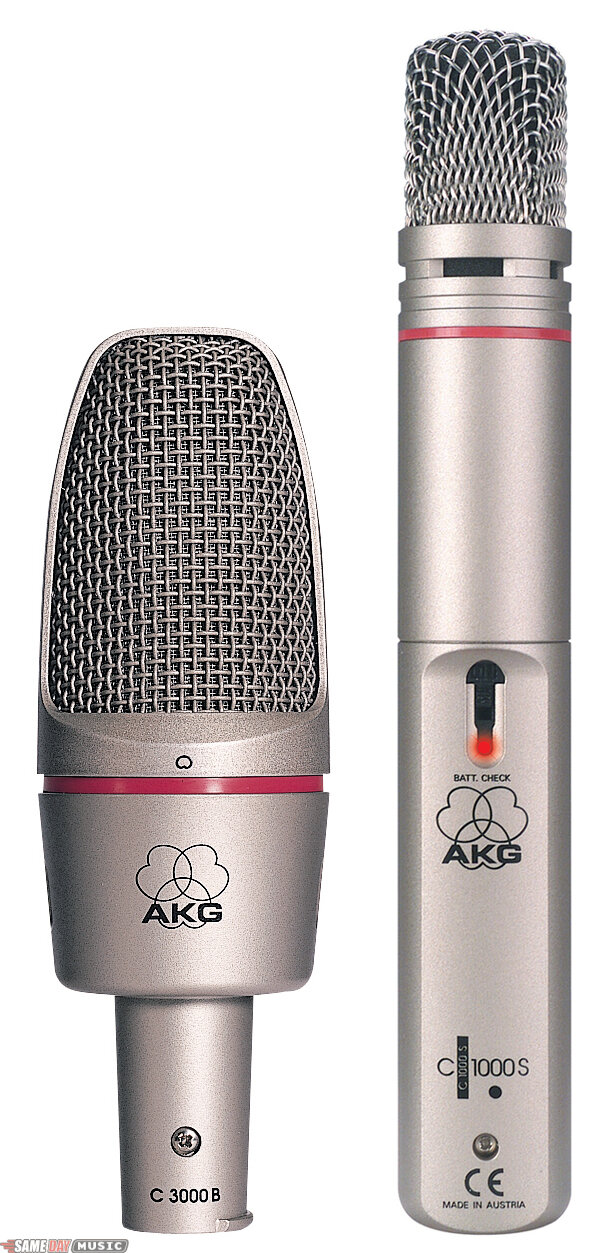

The C 3000 B is a large-diaphragm cardioid condenser microphone for universal use, designed and made specifically to suit the needs of musicians as well as the rigors of the stage.

Features
"True" large diaphragm, with active mylar foil diameter of 1 in. (25 mm)

Cardioid pattern for both vocal and instrument applications

Classic character and rugged construction

Applications
In the studio or on stage

Solo or choral vocals

Brass and woodwinds

Acoustic string instruments

Electric guitar amps

Drum overhead miking

The C 1000 S has a max SPL of 137dB for 1% THD and 145 dB @ 3% THD. A cardioid or hypercardioid pattern can be selected with the unique PPC1000 polar pattern converter. The PB1000 presence boost adapter provides an additional 5dB boost in the 5 to 9 kHz range in the cardioid range. Other features include a recessed on/off switch.

Technical Description

C 3000 B
Polar Patterns: Cardioid

Frequency Range: 20 Hz To 20 kHz

Sensitivity: 25 Mv/Pa (-32dBv)

Max. SPL for 0.5% THD: 140/150 dB

Equivalent Noise Level: 14 dB-A

Signal/Noise Ratio (A Weighted): 80 dB

Preattenuation: -10 dB, Switchable

Basscut Filter: 6 dB/Octave Below 500 Hz

Impedance: 200 Ohms

Recommended Load Impedance: >1000 Ohms

Power Requirement: 9 - 52 V Phantom Power to Din 45596

Current Consumption:< 2 Ma

Connector: 3-Pin Male XLR

Finish: Silver Gray

Size: 53 ø x 162 mm (2.1 ø x 6.4 In.)

Net/Shipping Weight: 320/950 g (11.3 oz./2.1 lbs.)

Standard Accessory: H 100

Optional Accessories: B 18, PF 100, MK 9/10, SA 41/1, W 414

C 1000 S
Frequency Range: 50 Hz to 20 kHz

Polar Pattern: Cardioid, Hypercardioid with PPC 1000 mounted

Sensitivity: 6 mV/Pa (-45 dBV)

Impedance: 200 ohms

Maximum SPL FOR 0.5% THD: 137 dB

Equivalent Noise Level: 19 dB-A

Size: 34 ø x 220 mm (1.3 ø x 8.7 in.)

Net/Shipping Weight: 275/820 g (9.7 oz. / 1.8 lbs.)
