AKG WMS40 Pro Instrumental Set Single Wireless Guitar System

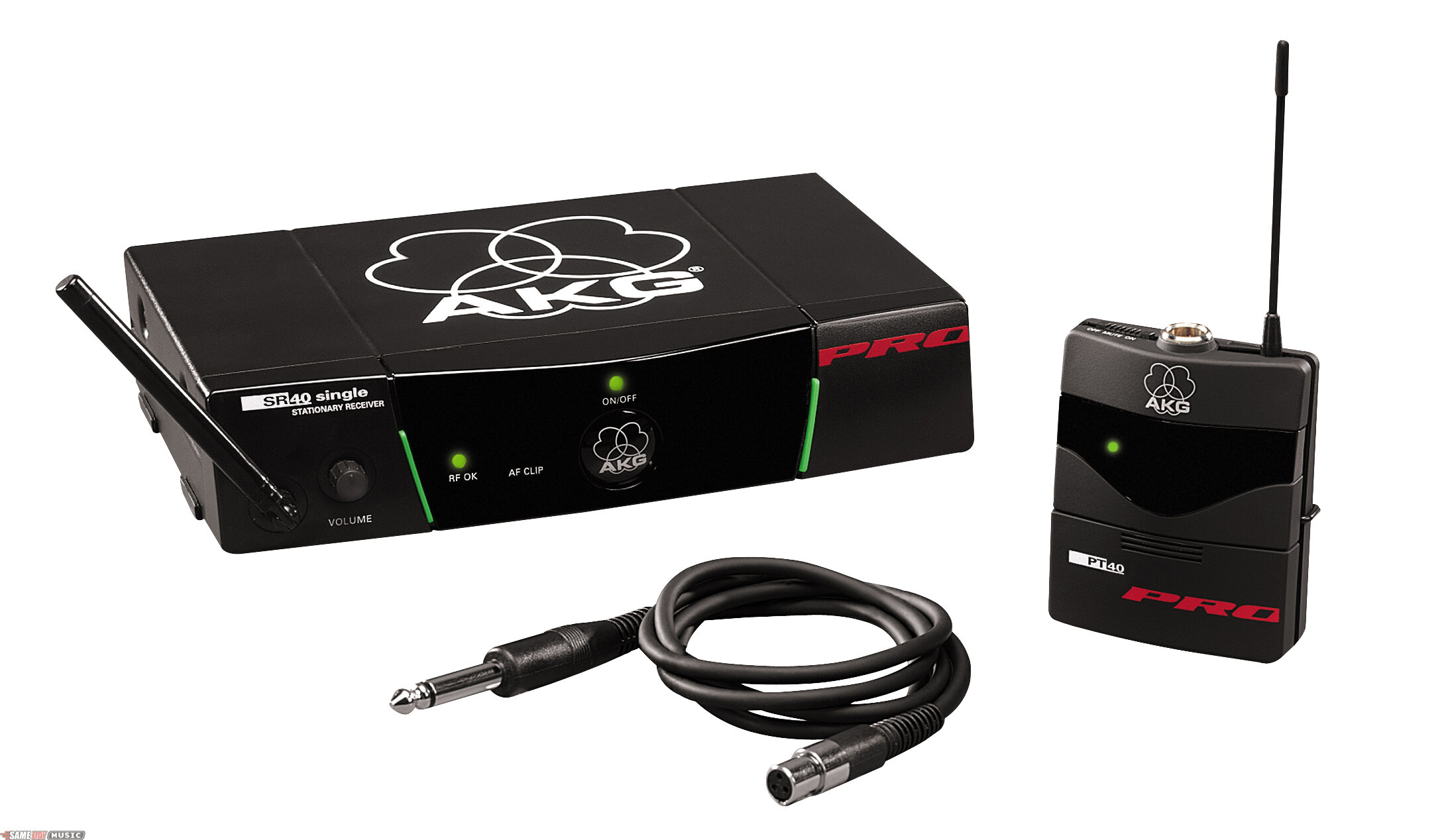

Includes: 1 x SR 40 SINGLE and 1 x PT 40 PRO. Fixed frequency, UHF, non-diversity system. See below for channel frequencies.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
Highly versatile: the WMS 40 PRO instrumental set. The convenient PT 40 PRO bodypack is the smallest and lightest transmitter in its class. The supplied MKG L cable allows an electric guitar or bass to be connected directly to the transmitter.
SR 40 SINGLE
Single fixed frequency.
All-metal case.
Multichannel capability for simultaneous use of up to seven channels (maximum number of channel depends on local frequency plans).
High Definition Audio Performance technology ensures the legendary, realistic AKG sound and perfect audio transmission.
PT 40 PRO
Miniature transmitter.
Single-battery powering.
Multichannel capability for simultaneous use of up to seven channels (maximum number of channel depends on local frequency plans).
High Definition Audio Performance technology ensures the legendary, realistic AKG sound and perfect audio transmission.
Transmitter operates for at least 30 hours off a single AA size battery, saving cost, maximizing dependability, and minimizing onstage stress.
SR 40 SINGLE
Single fixed frequency.
All-metal case.
Multichannel capability for simultaneous use of up to seven channels (maximum number of channel depends on local frequency plans).
High Definition Audio Performance technology ensures the legendary, realistic AKG sound and perfect audio transmission.
PT 40 PRO
Miniature transmitter.
Single-battery powering.
Multichannel capability for simultaneous use of up to seven channels (maximum number of channel depends on local frequency plans).
High Definition Audio Performance technology ensures the legendary, realistic AKG sound and perfect audio transmission.
Transmitter operates for at least 30 hours off a single AA size battery, saving cost, maximizing dependability, and minimizing onstage stress.
TECHNICAL DESCRIPTION
Channel Frequencies
Channel 54: 710.400 MHz
Channel 54B: 711.000 MHz
Channel 58: 734.600 MHz
Channel 58B: 736.975 MHz
Channel 60A: 748.875 MHz
Channel KR4: 750.900 MHz
Channel 60B: 751.550 MHz
SR 40 SINGLE
Carrier frequency range: 710 to 865 MHz, 1 fixed frequency
Modulation: FM
Audio bandwidth: 40 Hz to 20 kHz
THD: typ. 0,8 % (at 1 kHz)
Signal/noise ratio: typ. 110 dB(A)
Power supply: 120/230 V AC
Audio outputs: bal. 1/4 in. jack, output level adjustable, at rated deviation: 500 mV rms.
Dimensions: 200 x 190 x 44 mm (7.8 x 7.4 x 1.7 in.)
Net weight: 581 g (1.3 lbs.)
PT 40 PRO
Carrier frequency range: 710 to 865 MHz, 1 fixed frequency
Modulation: FM
Audio bandwidth: 40 Hz to 20 kHz
THD: typ. 0,8 % (at 1 kHz)
Signal/noise ratio: typ. 110 dB(A)
Power supply: 1 AA size battery
RF output: typ. 10 mW (ERP)
Battery life: typ. 30 h (for 2200 mAh)
Dimensions: 60 x 74 x 30 mm (2.4 x 2.9 x 1.2 in.)
Net weight: 60 g (2.1 oz.)
Channel 54: 710.400 MHz
Channel 54B: 711.000 MHz
Channel 58: 734.600 MHz
Channel 58B: 736.975 MHz
Channel 60A: 748.875 MHz
Channel KR4: 750.900 MHz
Channel 60B: 751.550 MHz
SR 40 SINGLE
Carrier frequency range: 710 to 865 MHz, 1 fixed frequency
Modulation: FM
Audio bandwidth: 40 Hz to 20 kHz
THD: typ. 0,8 % (at 1 kHz)
Signal/noise ratio: typ. 110 dB(A)
Power supply: 120/230 V AC
Audio outputs: bal. 1/4 in. jack, output level adjustable, at rated deviation: 500 mV rms.
Dimensions: 200 x 190 x 44 mm (7.8 x 7.4 x 1.7 in.)
Net weight: 581 g (1.3 lbs.)
PT 40 PRO
Carrier frequency range: 710 to 865 MHz, 1 fixed frequency
Modulation: FM
Audio bandwidth: 40 Hz to 20 kHz
THD: typ. 0,8 % (at 1 kHz)
Signal/noise ratio: typ. 110 dB(A)
Power supply: 1 AA size battery
RF output: typ. 10 mW (ERP)
Battery life: typ. 30 h (for 2200 mAh)
Dimensions: 60 x 74 x 30 mm (2.4 x 2.9 x 1.2 in.)
Net weight: 60 g (2.1 oz.)
