AKG WMS80 UHF Guitar/Bass Wireless System

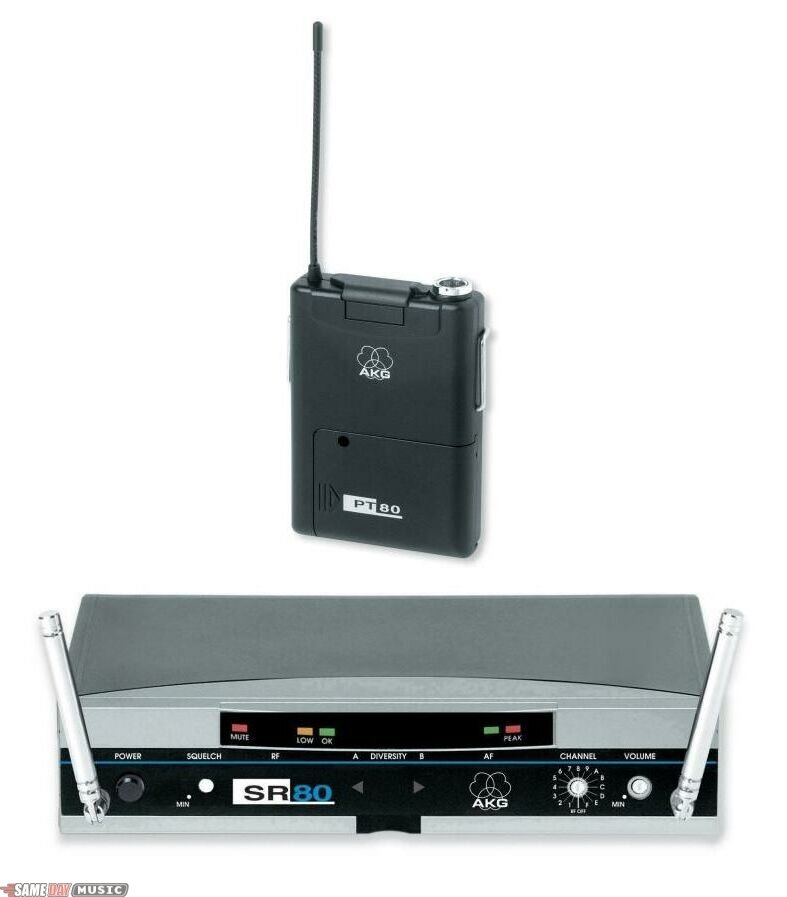

System Includes: SR 80 Receiver, PT 80 Transmitter, MKG/L Instrument Cable.
This product has been discontinued or is no longer sold by SameDayMusic.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
Product rated 10.0 out of 10 (1 rating)
ADDITIONAL VIEWS:
Main
SR 80
PT 80
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The WMS 80 professional UHF wireless system is an ideal choice for any application where over achieving performance is required at an exceptional affordable price. The system is a perfect tool for small and medium size stages, clubs, theaters, places of worship as well as conference centers, open-air performances and sports facilities.
System Includes: SR 80 Receiver, HT 80 Transmitter, MKG/L Instrument Cable.
Features:
15 selectable frequencies for interference-free operation
Interchangeable microphone elements for maximum flexibility
Digital "Four Level Diversity" circuitry and SAW filters for interference-free reception
Multi-channel capability for simultaneous use of up to 19 channels
Modular system architecture and interchangeable microphone elements
Complete with 19 in. rack mount kit
System Includes: SR 80 Receiver, HT 80 Transmitter, MKG/L Instrument Cable.
Features:
15 selectable frequencies for interference-free operation
Interchangeable microphone elements for maximum flexibility
Digital "Four Level Diversity" circuitry and SAW filters for interference-free reception
Multi-channel capability for simultaneous use of up to 19 channels
Modular system architecture and interchangeable microphone elements
Complete with 19 in. rack mount kit
TECHNICAL DESCRIPTION
System Includes: SR 80 Receiver, HT 80 Transmitter, MKG/L Instrument Cable.
WMS 80 System
Carrier frequency range: 710 to 865 MHz
Modulation: FM
Audio bandwidth: 50 to 20,000 Hz
T.H.D. at 1 kHz: < 0.8%
Signal/noise ratio: > 108 dB(A)
PT 80 Transmitter
Carrier Frequency Range: 710 MHz to 865 MHz
Modulation: FM
Audio Bandwidth: 50 to 20,000 Hz
THD: <0.8% typ.
Signal/Noise Ratio: >108 dB (A) typ.
RF Output: 10 mW (ERP) typ.
Battery Life: 10 hours (2 x 1.5 V AA size dry batteries)
Dimensions: 92 x 65 x 20 mm / 3.6 x 2.6 x 0.8 in.
Net Weight: 76 g / 1.6 oz.
Standard Accessories: 2 AA size batteries, Belt clip
Receiver SR 80
Audio outputs: balanced XLR: switchable to mic or line level, typ. 30 dB; unbalanced 1/4 in. jack: 0 dB; XLR: 6 dB
Size: 210 x 170 x 42 mm (8.3 x 6.7x 1.65 in.)
Weight: 470 g (16.6 oz.)
WMS 80 System
Carrier frequency range: 710 to 865 MHz
Modulation: FM
Audio bandwidth: 50 to 20,000 Hz
T.H.D. at 1 kHz: < 0.8%
Signal/noise ratio: > 108 dB(A)
PT 80 Transmitter
Carrier Frequency Range: 710 MHz to 865 MHz
Modulation: FM
Audio Bandwidth: 50 to 20,000 Hz
THD: <0.8% typ.
Signal/Noise Ratio: >108 dB (A) typ.
RF Output: 10 mW (ERP) typ.
Battery Life: 10 hours (2 x 1.5 V AA size dry batteries)
Dimensions: 92 x 65 x 20 mm / 3.6 x 2.6 x 0.8 in.
Net Weight: 76 g / 1.6 oz.
Standard Accessories: 2 AA size batteries, Belt clip
Receiver SR 80
Audio outputs: balanced XLR: switchable to mic or line level, typ. 30 dB; unbalanced 1/4 in. jack: 0 dB; XLR: 6 dB
Size: 210 x 170 x 42 mm (8.3 x 6.7x 1.65 in.)
Weight: 470 g (16.6 oz.)
REVIEWS
Product rated 10.0 out of 10 (1 rating)
