Alesis ADAT HD24XR 24-Track Digital Hard Disk Recorder
44.1, 48 and 96 kHz sample rates. Cables not included.
Product rated 6.9 out of 10 (15 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Hosa CSS400 TRS Cable
- from $10
- Shure SM57 Microphone
- from $99
- Audio-Technica ST90 mkII Mic
- from $40
- Audio-Technica AT2020
- from $99
- Whirlwind MC20 Mic Cable
- from $10
ADDITIONAL VIEWS:

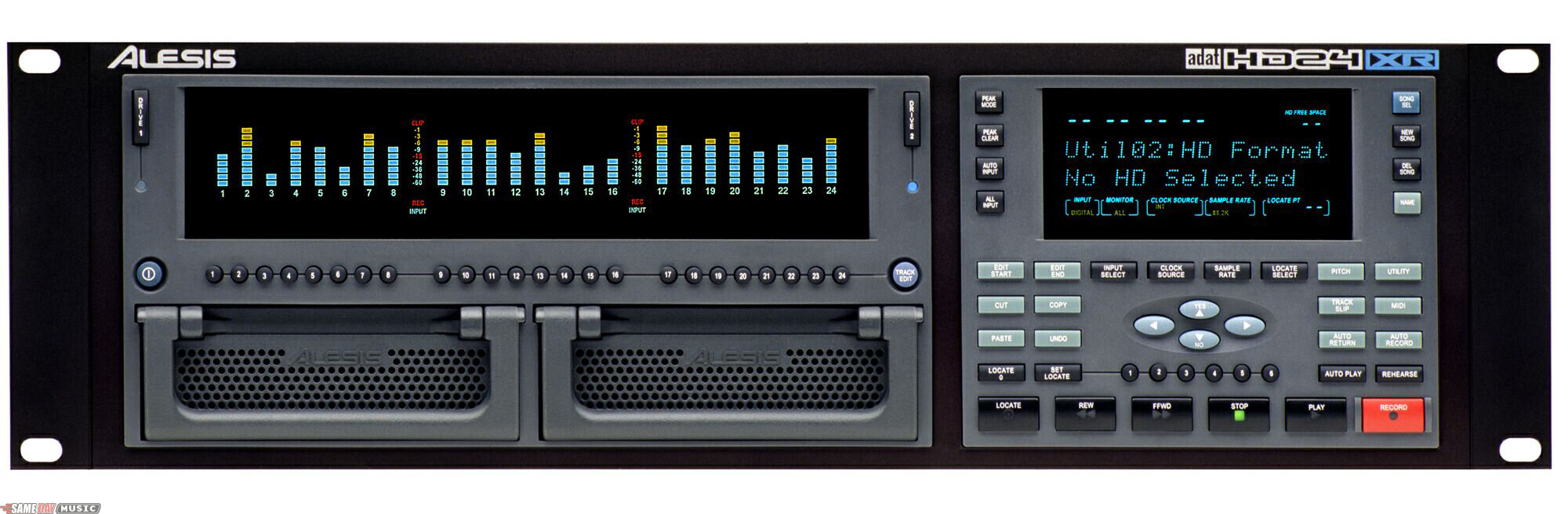

Main
Back
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The First Hard Disk Recorders Worthy of the Name ADAT...
Introducing the world's first 24-track, 24-bit/96kHz hard disk recorders designed to fit comfortably into any standard ADAT environment -- and match ADAT's legendary performance and affordability.
With their patent-pending method of writing to the hard drive, HD24 and HD24XR are the first hard disk recorders built from the ground up exclusively for the purpose of recording music instead of data -- resulting in remarkable stability and performance. And yet, thanks to their use of standard, low-cost IDE computer drives, the recording media costs no more than traditional ADAT tape on a per track basis.
Two hot-swappable media bays provide convenient access to the recording drives, and allow the user to backup data in just minutes. You can edit tracks internally or easily transfer to computer via built-in Ethernet. They're the only HD recorders on the market with standard ADAT Optical and ADAT Sync, enabling them to work efficiently with existing systems. And they offer the same exceptional user-friendly interface ADAT users have come to expect.
Alesis reinvents digital recording. Again.
Features:
24-track, 24-bit digital audio recording at 48kHz (12 tracks at 96kHz)
High sample rates for top-notch audio. Digital: 44.1-96kHz. Upgrade HD24 to 96kHz with the EC-2
Fully loaded standard connections include 24 analog inputs and outputs (+4dBu, 1/4 in. TRS), plus 24 channels of ADAT Optical I/O
Dual recording bays utilize standard low-cost, removable IDE drives so media costs don't break the bank
Instant random access to audio using ADAT/FST (File Streaming Technology). Hit rewind or fast-forward and you're there in a flash
Internal editing capabilities include cut, copy, paste, and track-move with undo. Or use the built-in Ethernet port to easily send files to a computer DAW
Multiple units can be synchronized to create a larger system, and easily integrated into an existing ADAT system
Everything you need for a world-class digital recording setup: MIDI in/out, MTC out, Ethernet, ADAT Sync in/out, and Word Clock in
The included 40GB drive provides 180 minutes of 24-track record time at 24-bit
Introducing the world's first 24-track, 24-bit/96kHz hard disk recorders designed to fit comfortably into any standard ADAT environment -- and match ADAT's legendary performance and affordability.
With their patent-pending method of writing to the hard drive, HD24 and HD24XR are the first hard disk recorders built from the ground up exclusively for the purpose of recording music instead of data -- resulting in remarkable stability and performance. And yet, thanks to their use of standard, low-cost IDE computer drives, the recording media costs no more than traditional ADAT tape on a per track basis.
Two hot-swappable media bays provide convenient access to the recording drives, and allow the user to backup data in just minutes. You can edit tracks internally or easily transfer to computer via built-in Ethernet. They're the only HD recorders on the market with standard ADAT Optical and ADAT Sync, enabling them to work efficiently with existing systems. And they offer the same exceptional user-friendly interface ADAT users have come to expect.
Alesis reinvents digital recording. Again.
Features:
24-track, 24-bit digital audio recording at 48kHz (12 tracks at 96kHz)
High sample rates for top-notch audio. Digital: 44.1-96kHz. Upgrade HD24 to 96kHz with the EC-2
Fully loaded standard connections include 24 analog inputs and outputs (+4dBu, 1/4 in. TRS), plus 24 channels of ADAT Optical I/O
Dual recording bays utilize standard low-cost, removable IDE drives so media costs don't break the bank
Instant random access to audio using ADAT/FST (File Streaming Technology). Hit rewind or fast-forward and you're there in a flash
Internal editing capabilities include cut, copy, paste, and track-move with undo. Or use the built-in Ethernet port to easily send files to a computer DAW
Multiple units can be synchronized to create a larger system, and easily integrated into an existing ADAT system
Everything you need for a world-class digital recording setup: MIDI in/out, MTC out, Ethernet, ADAT Sync in/out, and Word Clock in
The included 40GB drive provides 180 minutes of 24-track record time at 24-bit
TECHNICAL DESCRIPTION
Media
2 Caddys:
1 with installed 40GB HD
1 empty which can contain IDE/EIDE/ATA Drive of 5400/7200/ 10000 RPM up to 2000GB
Track Count
24 tracks at 24-bit/48kHz
12 tracks at 24-bit/96kHz
Sample Rates
Digital: 44.1-96kHz
Analog: 44.1-48kHz (HD24). Upgrade HD24 to 96kHz with the EC-2.
Connections
Analog: 24 24-bit inputs, 24 24-bit outputs (1/4" TRS, +4dBu)
Digital: 24-channel I/O via 3 ADAT Optical inputs and 3 ADAT Optical outputs.
Other: MIDI in/out. Alesis Sync in/out (DB-9). Word Clock input (BNC, 75). Footswitch jack for punch in/out (1/4 in.). LRC input for traditional wired remote (1/4 in.). 10 Base-T Ethernet (RJ-45).
Audio Specs
Frequency Response: 20Hz20kHz +0/1dB
Dynamic Range: 103dB A/D, >103dB D/A (A-weighted)
Distortion: <0.003% THD+N
Input Levels: nominal +4dBu, maximum +19dBu
Pitch Control: +100 cents/200 cents, min-max 30-50kHz (30-100kHz with version 2.0).
Power & Dimensions
Power: 90-230V AC, 60W
Dimensions (H x W x D): 5.09 in. x 19 in. x 17 in. (127mm x 483mm x 432mm), 3U rackmount
Weight: 20 lbs. (9.07kg)
2 Caddys:
1 with installed 40GB HD
1 empty which can contain IDE/EIDE/ATA Drive of 5400/7200/ 10000 RPM up to 2000GB
Track Count
24 tracks at 24-bit/48kHz
12 tracks at 24-bit/96kHz
Sample Rates
Digital: 44.1-96kHz
Analog: 44.1-48kHz (HD24). Upgrade HD24 to 96kHz with the EC-2.
Connections
Analog: 24 24-bit inputs, 24 24-bit outputs (1/4" TRS, +4dBu)
Digital: 24-channel I/O via 3 ADAT Optical inputs and 3 ADAT Optical outputs.
Other: MIDI in/out. Alesis Sync in/out (DB-9). Word Clock input (BNC, 75). Footswitch jack for punch in/out (1/4 in.). LRC input for traditional wired remote (1/4 in.). 10 Base-T Ethernet (RJ-45).
Audio Specs
Frequency Response: 20Hz20kHz +0/1dB
Dynamic Range: 103dB A/D, >103dB D/A (A-weighted)
Distortion: <0.003% THD+N
Input Levels: nominal +4dBu, maximum +19dBu
Pitch Control: +100 cents/200 cents, min-max 30-50kHz (30-100kHz with version 2.0).
Power & Dimensions
Power: 90-230V AC, 60W
Dimensions (H x W x D): 5.09 in. x 19 in. x 17 in. (127mm x 483mm x 432mm), 3U rackmount
Weight: 20 lbs. (9.07kg)
CATALOG DESCRIPTION
Compact, convenient hard disk recording with the feel of a tape machine@24 tracks at 24-bit, 48kHz resolution; 12 tracks at 96kHz@24 channels of TRS analog I/O; 24 channels of ADAT I/O@Records to affordable IDE hard drives; includes 40GB drive@Complete digital editing functionality@MIDI and Alesis Sync I/O; word clock input
