Product Description

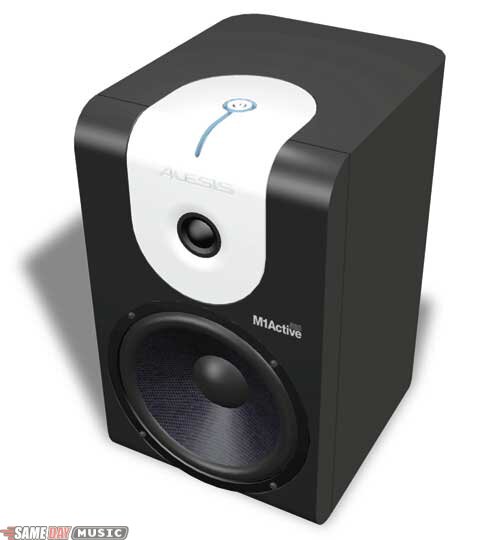

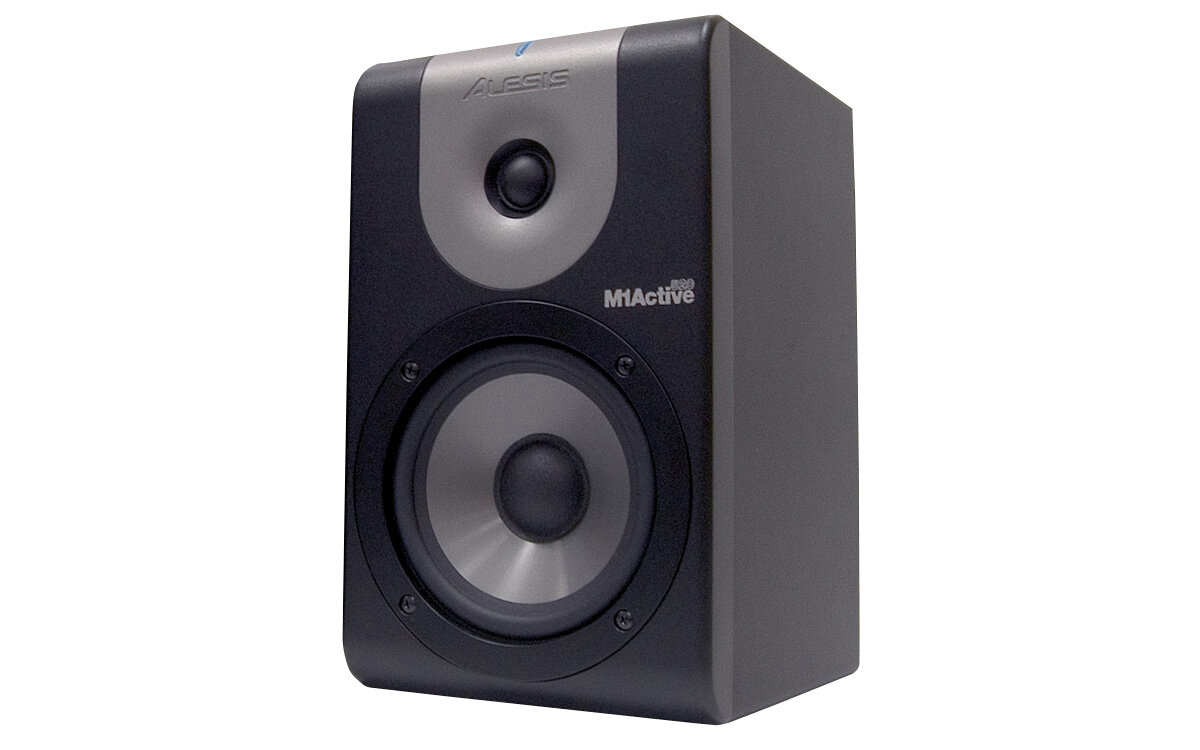

The Alesis M1 Active 520 is a newly designed, affordable, high-precision active reference monitor with Bass Density control and EQ. The M1 Active series offers incredible definition and flat frequency response from the high-precision drivers and a professionally crafted crossover. The cabinet and drivers have been redesigned for a bold new look and even greater sonic clarity.

The M1 Active 520 has a 1 in. thick front baffle, which minimizes speaker resonance, and the visually stunning acoustic waveguide evenly disperses high-frequency sound across your control room. The M1 Active includes new Bass Density technology, which allows you to tailor these monitors to any room's acoustics. The distinctive top-mounted power/clip indicator lets you know if the speaker is clipping.

The M1 Active 520 features a 75-Watt amplifier and a 5 in. low frequency woofer.

Features
5 in. low frequency woofer for clear bass and midrange

1 in. silk dome tweeter for clear highs without ear-fatiguing harshness

High-precision drivers offer lower distortion and smoother frequency response

Acoustical waveguide for superior imaging with minimal diffraction

1 in. thick front baffle virtually eliminates speaker resonance

Magnetically shielded for close placement to video monitors in computer based music production studios

1/4 in. TRS connector with volume control

Low Frequency Density Switch for acoustic space adjustment of the monitors

Rear port design provides deep bass extension and increased SPL

Hi, Mid, and Low Frequency EQ switches to accommodate user preference and sub-woofers

Top mounted, integrated Power Switch/Clip Light Bar

Technical Description

Bi-amplified Design / Tweeter – 25W, woofer – 50W

Woofer. 5" lightweight, magnetically-shielded, ultra-stiff polypropylene cone with rubber surround and high power handling voice coil.

Tweeter. 3/4" silk dome with magnetic shielding.

Frequency Response. 56 Hz - 20 kHz

Crossover Frequency. 2.8 kHz

Signal-to-Noise Ratio. >100 dB below full output, unweighted.

Inputs. XLR and 1/4" supporting both balanced and unbalanced cabling.

Polarity. Positive signal on "+" pin creates forward cone displacement.

Input Impedance. 20k ohms balanced or 10k ohms unbalanced.

Input Sensitivity. 85 mV noise (pink) produces 90 dB(A) output SPL at 1 meter. Gain knob turned fully clockwise (maximum).

Dimensions (W x H x D). 6.5" x 10.5" x 7.75"

Net Weight (each speaker). 13.0 lbs

Catalog Description

Affordable near-field monitoring@2-way design, 75 watts@5" woofer, 1" silk-dome tweeter@Magnetically shielded
