Alesis ProLinear 720 DSP Studio Monitor with Digital EQ
120-Watt Biamped Monitor (Single Monitor). Built-In Digital Crossover and 4-Band Parametric EQ. 24/96 Processing.
This product has been discontinued or is no longer sold by SameDayMusic.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
Product rated 7.2 out of 10 (10 ratings)
ADDITIONAL VIEWS:
Main
Back
Front
Back Panel
PRODUCT DESCRIPTION

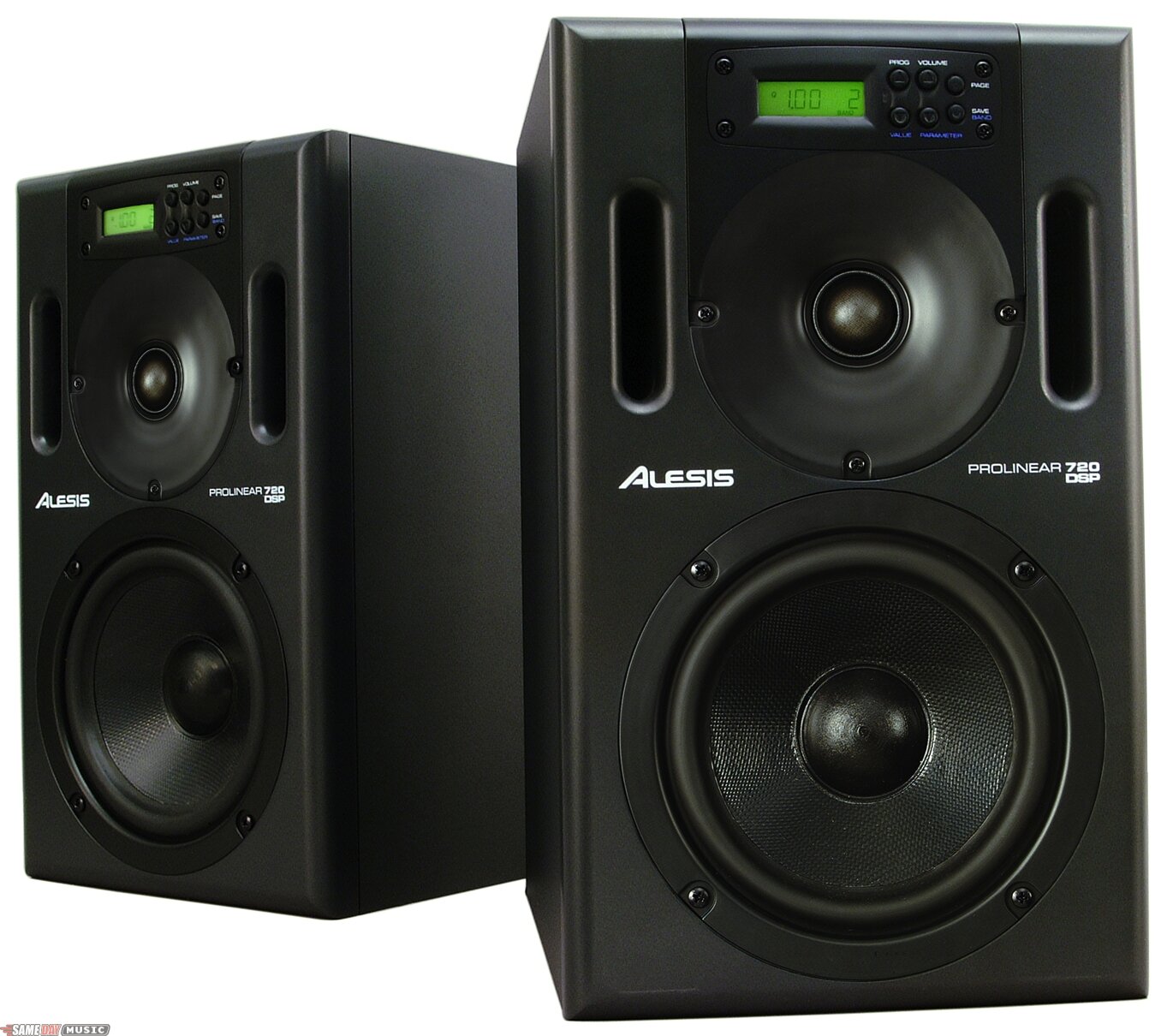

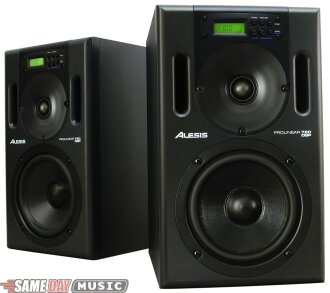

Alesis ProLinear 720 Studio Monitor with Digital EQ
The advanced ProLinear DSP is a 120-watt powered two-way speaker that offers increased bass frequency range with more accurate response, increased SPL capacity, lower distortion, and smoother frequency response due to its onboard Integrated DSP Module, which controls the equalization and output level of the speaker. There are two ways to access this control: through the front panel buttons and LCD, or from your PC via the supplied software and the serial port on the rear panel of the speaker. Your PC (Windows) and the Alesis ProLinear DSP software provide you unparalleled flexibility in creating, saving, and managing specific equalization programs and configurations, which you may then recall without ever having to touch the speaker. All this in a single speaker configuration - there's no difference between left and right cabinets, so place them in either location.
Features
Bi-amplified studio reference monitor
Built-in digital crossover and 4-band parametric EQ with 8 pre-sets and 8 user defined settings
24-bit/48kHz processing
Serial interface allows PC control of up to 16 speakers
80 watts (LF) / 40 watts (HF)
7 in. woven Kevlar woofer
1 in. silk dome tweeter
The advanced ProLinear DSP is a 120-watt powered two-way speaker that offers increased bass frequency range with more accurate response, increased SPL capacity, lower distortion, and smoother frequency response due to its onboard Integrated DSP Module, which controls the equalization and output level of the speaker. There are two ways to access this control: through the front panel buttons and LCD, or from your PC via the supplied software and the serial port on the rear panel of the speaker. Your PC (Windows) and the Alesis ProLinear DSP software provide you unparalleled flexibility in creating, saving, and managing specific equalization programs and configurations, which you may then recall without ever having to touch the speaker. All this in a single speaker configuration - there's no difference between left and right cabinets, so place them in either location.
Features
Bi-amplified studio reference monitor
Built-in digital crossover and 4-band parametric EQ with 8 pre-sets and 8 user defined settings
24-bit/48kHz processing
Serial interface allows PC control of up to 16 speakers
80 watts (LF) / 40 watts (HF)
7 in. woven Kevlar woofer
1 in. silk dome tweeter
TECHNICAL DESCRIPTION
Specifications
Inputs
Nominal input level: +4dBu (-15dBFS)
Maximum input level: +20dBu (7.0 Vrms)
Input impedance: 10kOhms
Output
Sound Pressure Level (SPL): ~110db at 1 meter at max input below clipping
Low Frequency (LF) power: 80 watts RMS, ~130 watts peak
High Frequency (HF) power: 40 watts RMS typical, ~130 watts peak
Frequency response: 50hz - 20kHz +/- 1.5dB
Bass level -3dB @ 43hz typical
Signal To Noise ratio: > 90 dB A-weighted, Analog In to Analog Out
Power Requirements
Input voltage: 100v - 230v
Input frequency: 47 - 63 Hz
Power consumption: 20 W (idle) 130 W (typical, at maximum volume)
Environmental Requirements
Temperature range: 0-40 degrees C
Relative humidity (non-condensing): 30-85%
Cabling Requirements
Mixer to Speaker: Balanced or unbalanced, shielded; XLR or 1/4 in. TRS connector.
Speaker to PC: Standard 9-pin, RS-232 serial cable (male-female).
Speaker to Speaker: Standard 9-pin, RS-232 serial cable (male-female).
Mechanical
Size: 15 in. H x 9 in. W x 12 in. D
Weight: 25 lbs (55 kg)
Inputs
Nominal input level: +4dBu (-15dBFS)
Maximum input level: +20dBu (7.0 Vrms)
Input impedance: 10kOhms
Output
Sound Pressure Level (SPL): ~110db at 1 meter at max input below clipping
Low Frequency (LF) power: 80 watts RMS, ~130 watts peak
High Frequency (HF) power: 40 watts RMS typical, ~130 watts peak
Frequency response: 50hz - 20kHz +/- 1.5dB
Bass level -3dB @ 43hz typical
Signal To Noise ratio: > 90 dB A-weighted, Analog In to Analog Out
Power Requirements
Input voltage: 100v - 230v
Input frequency: 47 - 63 Hz
Power consumption: 20 W (idle) 130 W (typical, at maximum volume)
Environmental Requirements
Temperature range: 0-40 degrees C
Relative humidity (non-condensing): 30-85%
Cabling Requirements
Mixer to Speaker: Balanced or unbalanced, shielded; XLR or 1/4 in. TRS connector.
Speaker to PC: Standard 9-pin, RS-232 serial cable (male-female).
Speaker to Speaker: Standard 9-pin, RS-232 serial cable (male-female).
Mechanical
Size: 15 in. H x 9 in. W x 12 in. D
Weight: 25 lbs (55 kg)
