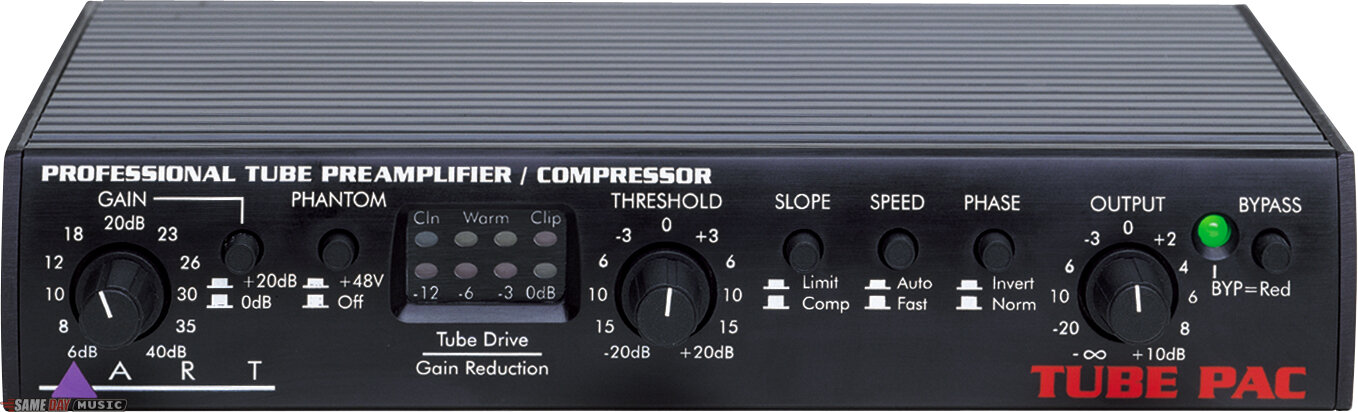

ART Tube Pac Microphone Preamp and Compressor (Model 131)
Mono tube preamp and tube compressor. Half-space rack. Phantom power. Adjustable threshold, limiting, or compression, fast or auto speed. XLR and 1/4 in. IO.
Product rated 7.2 out of 10 (9 ratings)
Read 2 Full Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- dbx 266XL Compressor
- $150
- Audio-Technica AT2020
- from $99
- Whirlwind MC20 Mic Cable
- from $10
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The Tube PAC from ART is a combination of the world's most popular tube mic/line preamplifier and optical tube compressor. ART engineers took the Tube MP and Tube Compressor and combined them into a single convenient aircraft-quality, extruded aluminum chassis. This new table-top design allows for easy placement in the studio or on the stage, with immediate access to all the controls, features, and metering. In addition to being a tremendous vocal and instrument preamplifier and compressor package, this may well be the ultimate in tube direct boxes.
The mic/line preamplifier stage is that of the TEC nominated Tube MP-a time (and studio) proven design. It provides over 70dB of gain, +48v phantom power, phase reversal, and is capable of warming up any instrument or microphone. LED level indicators are provided to monitor the output of a 12AX7a tube for harmonic content. The input level controls allows you to dial in the desired amount of tube warmth and then independently set the output level from the compressor circuitry.
The tube compressor is a VCA-less, optical design-similar to that of the classic tube compressors. Its ultra-musical sound is ideal for voice and instrument applications. Threshold, compression/limiting ratios, adjustable release times, bypass, gain reduction metering, and output gain controls are provided.
The Tube PAC is another impressive package from the world-wide leaders in tube dynamics signal-processing gear.
Features
Combination Tube Mic/Line preamplifier and tube compressor
Two hand-selected 12AX7a vacuum tubes
World-famous A R T sound
Two world-class designs in one chassis: TEC Nominated Tube MP and Optical Tube Compressor
The Ultimate Tube DI Box for instruments
Fat and warm gain with Musical Dynamics Control
Precision detented potentiometers
+48v phantom power
Bypassable compressor circuitry
Balanced XLR and unbalanced 1/4 in. inputs and outputs
Internal transformer
Aircraft-quality extruded aluminum chassis
Designed and manufactured in the USA
One year warranty
Applications
Home, project, and professional recording studios
DI Box for instruments
FOH Sound Systems
Guitar, bass, and keyboard rigs
Digital Audio Workstations and Computer Recording
MIDI recording and samplers
Voice-Over, Broadcast, and Edit Suites
The mic/line preamplifier stage is that of the TEC nominated Tube MP-a time (and studio) proven design. It provides over 70dB of gain, +48v phantom power, phase reversal, and is capable of warming up any instrument or microphone. LED level indicators are provided to monitor the output of a 12AX7a tube for harmonic content. The input level controls allows you to dial in the desired amount of tube warmth and then independently set the output level from the compressor circuitry.
The tube compressor is a VCA-less, optical design-similar to that of the classic tube compressors. Its ultra-musical sound is ideal for voice and instrument applications. Threshold, compression/limiting ratios, adjustable release times, bypass, gain reduction metering, and output gain controls are provided.
The Tube PAC is another impressive package from the world-wide leaders in tube dynamics signal-processing gear.
Features
Combination Tube Mic/Line preamplifier and tube compressor
Two hand-selected 12AX7a vacuum tubes
World-famous A R T sound
Two world-class designs in one chassis: TEC Nominated Tube MP and Optical Tube Compressor
The Ultimate Tube DI Box for instruments
Fat and warm gain with Musical Dynamics Control
Precision detented potentiometers
+48v phantom power
Bypassable compressor circuitry
Balanced XLR and unbalanced 1/4 in. inputs and outputs
Internal transformer
Aircraft-quality extruded aluminum chassis
Designed and manufactured in the USA
One year warranty
Applications
Home, project, and professional recording studios
DI Box for instruments
FOH Sound Systems
Guitar, bass, and keyboard rigs
Digital Audio Workstations and Computer Recording
MIDI recording and samplers
Voice-Over, Broadcast, and Edit Suites
TECHNICAL DESCRIPTION
Dimensions (D x W x H): 5.25 x 8.5 x 1.65 in.
Weight: 6.0 lbs.
Maximum Gain: XLR to XLR 70dB; 1/4 in. to 1/4 in. 67dB
Phantom Power: +48v DC (switchable)
Compression Ratio: 2.3:1 (comp)/ 6:1 (lim)
Attack Time: 6.5ms
Release Time: 200ms (fast), 70ms-1sec (auto)
Equivalent Input Noise: -129dBu (XLR to XLR, weighted)
Dynamic Range: >90dB (no weighting)
Frequency Response: 20Hz to 20kHz
Input Impedance: 1.67k ohms (XLR), 1M ohm (1/4 in.)
Output Impedance: 600 ohms (XLR), 300 ohms (1/4 in.)
Maximum Input Level: +15dBu (XLR), +21dBu (1/4 in.)
Maximum Output Level: +27dBu (XLR), +22dBu (1/4 in.)
CMRR 90dB (typical)
Total Harmonic Distortion (THD): <0.1% (typical)
Tubes: 2 Hand-Selected 12AX7a
Power Requirements: 100-125 VAC, 16W
Note: Export units configured for country of destination.
Weight: 6.0 lbs.
Maximum Gain: XLR to XLR 70dB; 1/4 in. to 1/4 in. 67dB
Phantom Power: +48v DC (switchable)
Compression Ratio: 2.3:1 (comp)/ 6:1 (lim)
Attack Time: 6.5ms
Release Time: 200ms (fast), 70ms-1sec (auto)
Equivalent Input Noise: -129dBu (XLR to XLR, weighted)
Dynamic Range: >90dB (no weighting)
Frequency Response: 20Hz to 20kHz
Input Impedance: 1.67k ohms (XLR), 1M ohm (1/4 in.)
Output Impedance: 600 ohms (XLR), 300 ohms (1/4 in.)
Maximum Input Level: +15dBu (XLR), +21dBu (1/4 in.)
Maximum Output Level: +27dBu (XLR), +22dBu (1/4 in.)
CMRR 90dB (typical)
Total Harmonic Distortion (THD): <0.1% (typical)
Tubes: 2 Hand-Selected 12AX7a
Power Requirements: 100-125 VAC, 16W
Note: Export units configured for country of destination.
CATALOG DESCRIPTION
Tube preamp and compressor combo@Vintage sounding pre with phantom power@Adjustable compressor threshold, slope, and speed@XLR and 1/4" I/O
