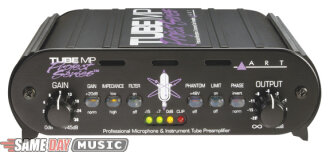

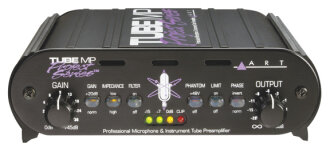

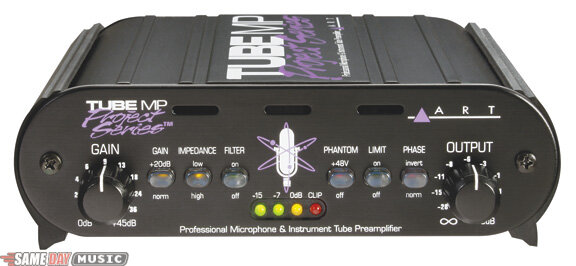

Product Description

The Tube MP Project Series is a professional quality audio interface that lets you connect microphone, instrument, and line level signals to a mixer or other audio input. This hybrid design is the latest in a long line of ART tube preamps. They took the legendary Tube MP series and updated every aspect of the design, inside and out, while still maintaining a compact, reliable, and cost effective product. From the new all-aluminum stackable chassis to the precision LED level metering circuitry, they have improved virtually every aspect of the already successful Tube MP series. With up to 70dB of clean musical gain and high output signal drive capability the cold digital world will melt with your mixes! Charge up your creativity with the Tube MP Project Series!

Features:
Extremely Low Noise Discrete Front End

Up to 70dB of Clean, 'Musical' Gain

High Output Signal Drive Capability

Fast FET Limiter to Prevent Overload

Switch Selectable Input Impedance

Precision LED Metering

Built-in Low Noise Phantom Power Supply

Compact, Stackable all Aluminum Chassis

XLR and 1/4 in. Inputs and Outputs

Phase Invert Switch

High Cut Filter Switch

Variable Input and Output Controls

Technical Description

Frequency Response: 10Hz - 40KHz, +/-1 dB (typical)

Dynamic Range: >100dB (20Hz to 20KHz)

THD: <0.05% (typical)

CMRR: >60dB (typical)

EIN: <-130dB (XLR to XLR A-weighted)

Maximum Input Level: +17dBu (¼ in.), +16dBu (XLR)

Maximum Output Level: +20dBu (¼ in.), +26dBu (XLR)

Input Connections: 1/4 in. TRS unbalanced (1meg Ohm)

XLR female balanced

Output Connection: 1/4 in. TRS unbalanced (600 Ohm)

XLR male balanced, (<300 Ohm)

Maximum Gain: 70dB (XLR - XLR), +50dB (1/4 in.- XLR)

Input Gain Pad: Switchable, 20dB

XLR Input Impedance: Switchable, 4.7k Ohms / 600 Ohms

Low Cut Filter: Switchable, -3dB @ 40Hz

Output Phase: Switchable, Normal/Invert

Output Limiter Type: Switchable, Fast & Musical FET limiter, >20dB limit range

Phantom Power: Switchable, +48V DC, filtered, current limited

Signal Metering: Precise LED array with a fast attack and moderate release

Tube Type: 12AX7A hand selected

Chassis Type: Aluminum Anodized with integral/stackable rubber sides

Power Requirements: 10Volts AC @ 700mA (typical)

Dimensions: 1.75 in. H x 5.9 in. W x 6.5 in. D (44.5mm x 150mm x 165mm)

Weight: 2.5 lbs. (1.14 kg)

Catalog Description

Quality, compact tube mic preamp@Phantom power@40Hz low-cut filter and phase reverse@FET limiter@XLR and 1/4" I/O
