PRODUCT DESCRIPTION

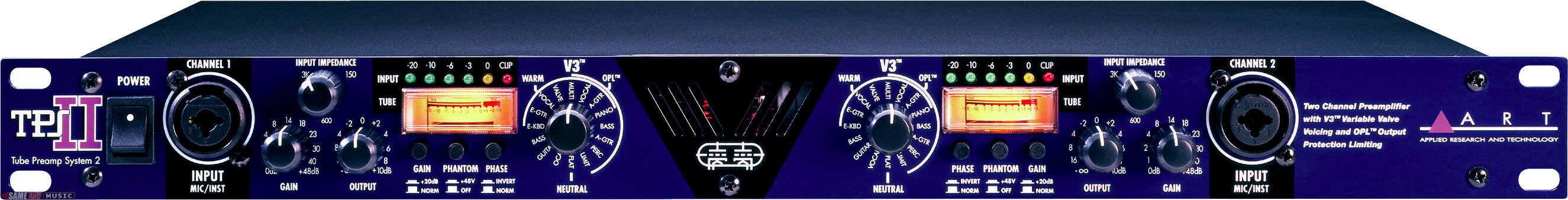

The TPS II's 2-channel high performance mic preamp is coupled with ART's proprietary V3(tm) (Variable Valve Voicing) for complete versatility and famousn ART high quality. The TPS II also features variable input impedance so you can dial in and match any mic type from large condensers to ribbon mics.
ART's newly improved V3 feature provides optimized reference points for guitars, bass guitars, synths, acoustic instruments, percussion, vocals and more. M: Unique to its' class, the TPS II provides level monitoring with two analog meters as well as two newly added input monitoring LED meters. High-Z instruments or balanced microphone signals are input through front and rear panel jacks. This newly enhanced TPS II can accept +20 dB peaks while maintaining over 120 dB dynamic range, quiet performance and incredibly low distortion. ART's legendary tube stage maintains our classic "warm sound" and adds additional tube voicing specifically tailored to vocal, guitar, bass, and acoustic instruments making the TPS II an incredible DI box.
OPL(tm) (Output Protection Limiting) is also included to control overshoots and normalize levels before clipping occurs. The TPS II was conceived, designed and manufactured to the highest standards to provide years of quiet, reliable performance.
ART is a company comprised of musicians, recordists' and enthusiasts alike, striving to create highly useful, durable and affordable products. 2004 marks twenty years of designing and manufacturing audio products for all walks of musical life. During those twenty years, ART has committed their collective talents and expertise to offer their customers audio solutions that they also use. In doing so, ART has built a foundation for continued success and has become one of the most respected signal processing manufacturers in the music industry.
ART's newly improved V3 feature provides optimized reference points for guitars, bass guitars, synths, acoustic instruments, percussion, vocals and more. M: Unique to its' class, the TPS II provides level monitoring with two analog meters as well as two newly added input monitoring LED meters. High-Z instruments or balanced microphone signals are input through front and rear panel jacks. This newly enhanced TPS II can accept +20 dB peaks while maintaining over 120 dB dynamic range, quiet performance and incredibly low distortion. ART's legendary tube stage maintains our classic "warm sound" and adds additional tube voicing specifically tailored to vocal, guitar, bass, and acoustic instruments making the TPS II an incredible DI box.
OPL(tm) (Output Protection Limiting) is also included to control overshoots and normalize levels before clipping occurs. The TPS II was conceived, designed and manufactured to the highest standards to provide years of quiet, reliable performance.
ART is a company comprised of musicians, recordists' and enthusiasts alike, striving to create highly useful, durable and affordable products. 2004 marks twenty years of designing and manufacturing audio products for all walks of musical life. During those twenty years, ART has committed their collective talents and expertise to offer their customers audio solutions that they also use. In doing so, ART has built a foundation for continued success and has become one of the most respected signal processing manufacturers in the music industry.
TECHNICAL DESCRIPTION
Specifications
Dimensions (H x W x D): 1.75 x 19 x 6.5 in.
Weight: 5.5 Lbs
Input Connections:
- Front- XLR Balanced, 1/4 in
- Rear- Switchable XLR, 1/4 in. TRS
Output Connections: XLR, 1/4 in.
Input Impedance XLR, 1/4 in.: 150-3k ohms variable, 1M ohm
Output Impedance XLR, 1/4 in.: 300 ohms, 150 ohms
Maximum Input Level XLR: +19 dBu
Maximum Input Level 1/4 in.: +22 dBu
Maximum Ouput Level XLR: +28 dBu
Maximum Output Level 1/4 in.: +22 dBu
CMRR: >75 dB (typical @ 1 kHz)
Frequency Response: 5Hz to 50 kHz, +/- .1dB
Dynamic Range: >100 dB
Total Harmonic Distortion (THD): <0.01% (clean), <0.1% (warm)
Maximum Gain:
- XLR to XLR -80 dB
- 1/4 in. to 1/4 in. -68 dB
- XLR to 1/4 in. -74 dB
- 1/4 in. to XLR -74 dB
Equivalent Input Noise (EIN):
- XLR to XLR: -129 dBU (A weighted)
- 1/4 in. to 1/4 in.: -105 dBu (A weighted)
Tube Type: 12AX7A, Dual Triode, Hand Selected
Power Requirements: USA-110-125V AC/50hz/16w
Dimensions (H x W x D): 1.75 x 19 x 6.5 in.
Weight: 5.5 Lbs
Input Connections:
- Front- XLR Balanced, 1/4 in
- Rear- Switchable XLR, 1/4 in. TRS
Output Connections: XLR, 1/4 in.
Input Impedance XLR, 1/4 in.: 150-3k ohms variable, 1M ohm
Output Impedance XLR, 1/4 in.: 300 ohms, 150 ohms
Maximum Input Level XLR: +19 dBu
Maximum Input Level 1/4 in.: +22 dBu
Maximum Ouput Level XLR: +28 dBu
Maximum Output Level 1/4 in.: +22 dBu
CMRR: >75 dB (typical @ 1 kHz)
Frequency Response: 5Hz to 50 kHz, +/- .1dB
Dynamic Range: >100 dB
Total Harmonic Distortion (THD): <0.01% (clean), <0.1% (warm)
Maximum Gain:
- XLR to XLR -80 dB
- 1/4 in. to 1/4 in. -68 dB
- XLR to 1/4 in. -74 dB
- 1/4 in. to XLR -74 dB
Equivalent Input Noise (EIN):
- XLR to XLR: -129 dBU (A weighted)
- 1/4 in. to 1/4 in.: -105 dBu (A weighted)
Tube Type: 12AX7A, Dual Triode, Hand Selected
Power Requirements: USA-110-125V AC/50hz/16w
