ART Voice Channel Tube Microphone Preamp System with Digital In/Out
Features ADAT, S/PDIF, AES/EBU, TOSLunk and USB outputs. Class-A mic preamp.
Product rated 10.0 out of 10 (1 rating)
Read Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- dbx 266XL Compressor
- $150
- Audio-Technica AT2020
- from $99
- Whirlwind MC20 Mic Cable
- from $10
ADDITIONAL VIEWS:
Main
Angle
Rear
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION

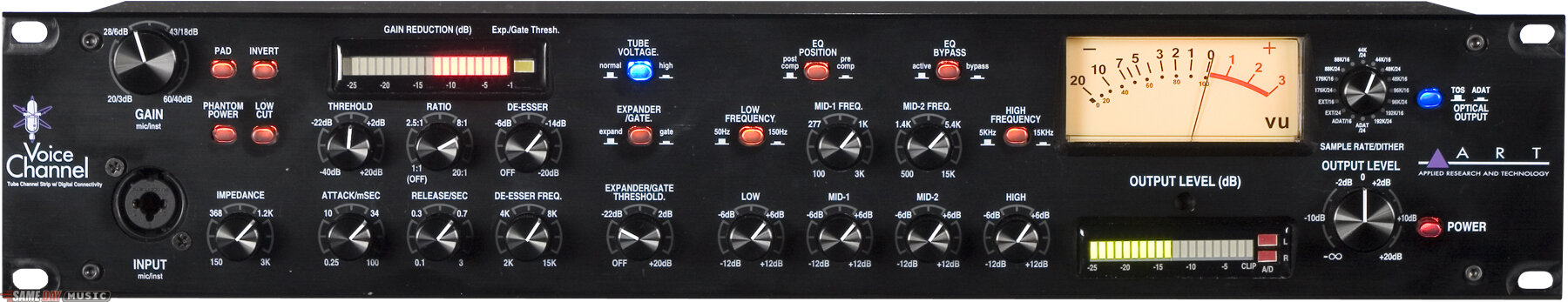

The ART Voice Channel is the answer to your recording and computer audio interface needs. Built to provide the ideal all-in-one input solution for analog or digital recording, the ART VoiceChannel is a true second-generation discrete Class-A microphone preamp capable of providing clean quiet gain while maintaining incredible transparency. An integrated fully variable powerful dynamics processor subtly controls transients and noise of the most demanding sources while the VoiceChannel's semi-parametric EQ offers wide tune-ability.
For added versatility the EQ can be patched before OR after the dynamics processor while separate insertion jacks allow you quick quiet in-line connectivity to external signal processing gear immediately after the Mic preamp, before the EQ and dynamics processor in the signal path.
Another insert patch point exists just before the A/D converters.
Choose between a wide range of outputs including balanced analog output, 44.1 KHz to 192 KHz AES/EBU, S/PDIF, ADAT and USB. Both analog and digital meters provide a detailed indication of audio levels.
Features
Ideal input solution for any recording application.
Tube Microphone Preamplifier with Selectable plate Voltage and Variable Input Impedance
Exceptional warmth and definition from proven ART Tube Preamp design
Smooth musical sounding dynamics control including Compressor / Expander / De-Esser / Gate
Powerful Parametric EQ selectable Pre or Post Compressor in signal path
Flexible digital connectivity including ADAT Lite-pipe / AES/EBU / S/PDIF / TOSLink Digital Output supports 44.1 to 192 KHz Sample Rates
USB direct-connect to computer or laptop
For added versatility the EQ can be patched before OR after the dynamics processor while separate insertion jacks allow you quick quiet in-line connectivity to external signal processing gear immediately after the Mic preamp, before the EQ and dynamics processor in the signal path.
Another insert patch point exists just before the A/D converters.
Choose between a wide range of outputs including balanced analog output, 44.1 KHz to 192 KHz AES/EBU, S/PDIF, ADAT and USB. Both analog and digital meters provide a detailed indication of audio levels.
Features
Ideal input solution for any recording application.
Tube Microphone Preamplifier with Selectable plate Voltage and Variable Input Impedance
Exceptional warmth and definition from proven ART Tube Preamp design
Smooth musical sounding dynamics control including Compressor / Expander / De-Esser / Gate
Powerful Parametric EQ selectable Pre or Post Compressor in signal path
Flexible digital connectivity including ADAT Lite-pipe / AES/EBU / S/PDIF / TOSLink Digital Output supports 44.1 to 192 KHz Sample Rates
USB direct-connect to computer or laptop
TECHNICAL DESCRIPTION
Attack Time: 250 uSec. to 100 mSec
Boost and Cut/Frequency Band: +12 dB on each band
Compression Ratio: 1:1 to 20:1
Dimensions (DxWxH): 9.17 x 19 x 3.5 in.
EQ Frequency Bands: Low Frequency: 50/150 Hz Selectable
MID 1 Frequency: 100 Hz to 3kHz continuously variable
MID 2 Frequency: 500 Hz to 15kHz continuously variable
High Frequency: 5K/15kHz Selectable
Equivalent Input Noise: -130 dBu, Input shorted, Max gain, A weighted
Frequency Response: 16Hz - 42kHz -1dB@96kHz
Total Harmonic Distortion: 1kHz: less than .015% typical
Weight: 10.5lbs / 4.8kg
Boost and Cut/Frequency Band: +12 dB on each band
Compression Ratio: 1:1 to 20:1
Dimensions (DxWxH): 9.17 x 19 x 3.5 in.
EQ Frequency Bands: Low Frequency: 50/150 Hz Selectable
MID 1 Frequency: 100 Hz to 3kHz continuously variable
MID 2 Frequency: 500 Hz to 15kHz continuously variable
High Frequency: 5K/15kHz Selectable
Equivalent Input Noise: -130 dBu, Input shorted, Max gain, A weighted
Frequency Response: 16Hz - 42kHz -1dB@96kHz
Total Harmonic Distortion: 1kHz: less than .015% typical
Weight: 10.5lbs / 4.8kg
