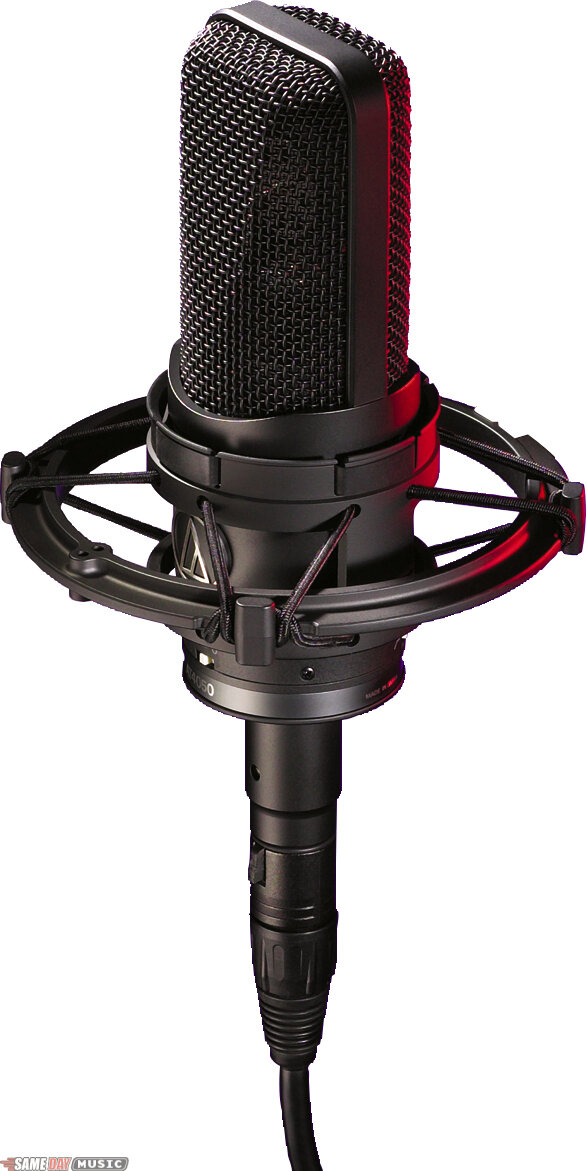

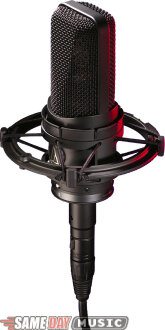

Audio Technica AT4050 Studio Condenser Microphone
Cardioid, omni, and figure-eight patterns.
Product rated 7.5 out of 10 (21 ratings)
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Alternate View
PRODUCT DESCRIPTION
The AT4050 is a transformerless, multiple-pattern studio microphone designed for use in the most demanding applications. It utilizes dual gold-plated, aged, "large-diaphragm" condenser elements for extended frequency response. The microphone polar pattern can be switched for cardioid, omnidirectional or figure-of-eight operation. This, coupled with low-noise transformerless electronics, makes this microphone ideal for the most critical digital recordings.
Features:
Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality
Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
Three switchable polar patterns: omni, cardioid, figure-of-eight
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
Switchable 80 Hz hi-pass filter and 10 dB pad
Includes AT8449 shock mount
Features:
Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities and highest quality
Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics achieved remain constant over years of use
Three switchable polar patterns: omni, cardioid, figure-of-eight
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
Switchable 80 Hz hi-pass filter and 10 dB pad
Includes AT8449 shock mount
TECHNICAL DESCRIPTION
Element: Condenser
Dynamic Range (Typical): 132 dB, 1 kHz at Max. SPL
Polar Pattern: Cardioid, Omni, Figure-of-eight
Phantom Power Requirements: 48V (±4V)
Frequency Response: 20 - 18,000 Hz
Switches: Polar pattern; 10 dB pad; roll-off
Open Circuit Sensitivity: -36 dB (15.8 mV), re 1V at 1 Pa
Low Frequency Roll-off: 80 Hz, 12 dB per octave
Impedance: 100 ohms
Weight: 18.0 oz (510 g)
Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.
Output Connector: XLRM-type
Signal to Noise Ratio: 77 dB, 1 kHz at 1 Pa
Accessories Furnished: AT8449 shock mount; microphone dust cover; protective case
Dynamic Range (Typical): 132 dB, 1 kHz at Max. SPL
Polar Pattern: Cardioid, Omni, Figure-of-eight
Phantom Power Requirements: 48V (±4V)
Frequency Response: 20 - 18,000 Hz
Switches: Polar pattern; 10 dB pad; roll-off
Open Circuit Sensitivity: -36 dB (15.8 mV), re 1V at 1 Pa
Low Frequency Roll-off: 80 Hz, 12 dB per octave
Impedance: 100 ohms
Weight: 18.0 oz (510 g)
Maximum Input Sound Level: 149 dB SPL, 1 kHz at 1% T.H.D.
Output Connector: XLRM-type
Signal to Noise Ratio: 77 dB, 1 kHz at 1 Pa
Accessories Furnished: AT8449 shock mount; microphone dust cover; protective case
CATALOG DESCRIPTION
Exceptionally smooth and accurate dual-large diaphragm mic@Cardioid, omnidirectional, and figure 8 polar patterns@Super-sensitive 2-micron thick diaphragms@High-pass and 10dB pad switches@Includes shockmount, dust cover, and case
