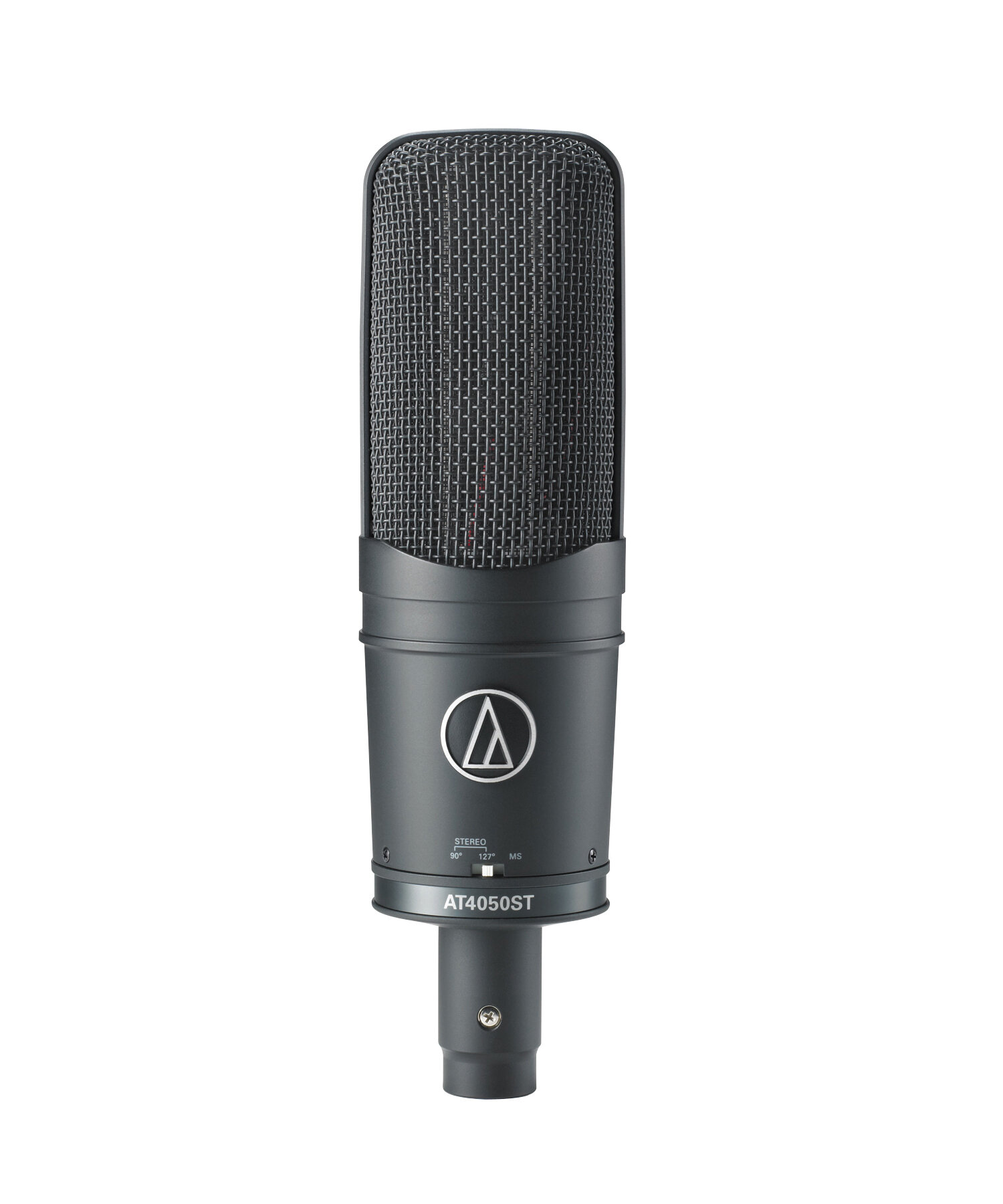

Audio-Technica AT4050ST Stereo Condenser Microphone

Offering the realism of a live sound field, the AT4050ST is a side-address condenser with cardioid and figure-of-eight elements configured in a Mid-Side arrangement. This innovative stereo condenser allows sound recordists the choice of selecting a left-right stereo output or choosing discrete Mid-Side signals for later manipulation, a remarkable flexibility. The microphone's dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range. Its transformerless circuitry virtually eliminates low-frequency distortion.

Specifications
- Innovative side-address Mid-Side stereo microphone engineered for professional recording, broadcast and sound reinforcement

- Independent cardioid and figure-of-eight condenser elements

- Switch selection of Mid-Side mode and two internally matrixed stereo modes

- Dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range of the microphone

- Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients

- The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics remain constant over years of use

- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

- Integral 80 Hz high-pass filter switch and 10 dB pad switch

- State-of-the-art design and manufacturing techniques ensure compliance with A-T's stringent consistency and reliability standards

- Custom shock mount provides superior isolation

- Certified by the METAlliance (Music Engineering and Technology Alliance)

Same Day Music is an authorized dealer of Audio-Technica products.

Specifications
ELEMENT: Externally-polarized (DC bias) condenser

POLAR PATTERN: Cardioid and Figure-of-eight

FREQUENCY RESPONSE: 20-18,000 Hz

LOW FREQUENCY ROLL-OFF: 80 Hz, 12 dB/octave

OPEN CIRCUIT SENSITIVITY: Stereo 90*: -42 dB (7.9 mV) dB re 1V at 1 Pa

Stereo 127*: -41 dB (8.9 mV) dB re 1V at 1 Pa

Mid: -36 dB (15.8 mV) dB re 1V at 1 Pa

Side: -36 dB (15.8 mV) dB re 1V at 1 Pa

IMPEDANCE: 50 ohms

MAXIMUM INPUT SOUND LEVEL: Mid and Side: 149 dB SPL, 1 kHz at 1% T.H.D.;
159 dB SPL, with 10 dB pad (nominal)

NOISE: Stereo 90*: 25 dB SPL

Stereo 127*: 16 dB SPL

Mid: 15 dB SPL

Side: 17 dB SPL

DYNAMIC RANGE (typical): Mid: 134 dB, 1 kHz at Max SPL

Side: 132 dB, 1 kHz at Max SPL

SIGNAL-TO-NOISE RATIO: Stereo 90*: 69 dB, 1 kHz at 1 Pa

Stereo 127*: 78 dB, 1 kHz at 1 Pa

Mid: 79 dB, 1 kHz at 1 Pa

Side: 77 dB, 1 kHz at 1 Pa

PHANTOM POWER REQUIREMENTS: 48V DC, 6.4 mA typical (both channels total)

SWITCHES: 90*, 127*, M-S;
Flat, roll-off;
10 dB pad (nominal)

WEIGHT: 517 g (18.2 oz)

DIMENSIONS: 193.0 mm (7.60") long,
53.4 mm (2.10") maximum body diameter

OUTPUT CONNECTOR: Integral 5-pin XLRM-type

CABLE: 5.0 m (16.5') long, 8-conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end

ACCESSORIES FURNISHED: AT8449 shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case

AUDIO-TECHNICA CASE STYLE: R1

Same Day Music is an authorized dealer of Audio-Technica products.

Shipping Weights and Dimensions

Shipping Weight: 5 lbs

Shipping Dimensions: 11 x 10 x 5 in
