Audio-Technica ATW-251G Wireless System, Guitar

The Audio-Technica ATW-251G wireless guitar system was designed to provide reliable performance, easy setup and clear, natural sound quality. Each ATW-251G professional VHF wireless system includes a receiver and body-pack transmitter on a specific crystal-controlled frequency. A novel dipole antenna system on the receiver improves operation by providing a ground element in addition to the usual signal element.

Features
- Easy operation and clear, natural sound quality
- Reliable performance and durable construction
- Advanced dipole antenna system for extended operating range
- Power, RF, and AF Peak indicators
- Volume control, 1/4" output jack and space-saving power supply
- Rugged unidirectional dynamic element on handheld microphone/transmitter
- Variable microphone trim control and easily accessible On/Standby/Off switch on transmitters
- Professional locking connector on UniPak(TM) body-pack transmitter
- Available in 5 system configurations

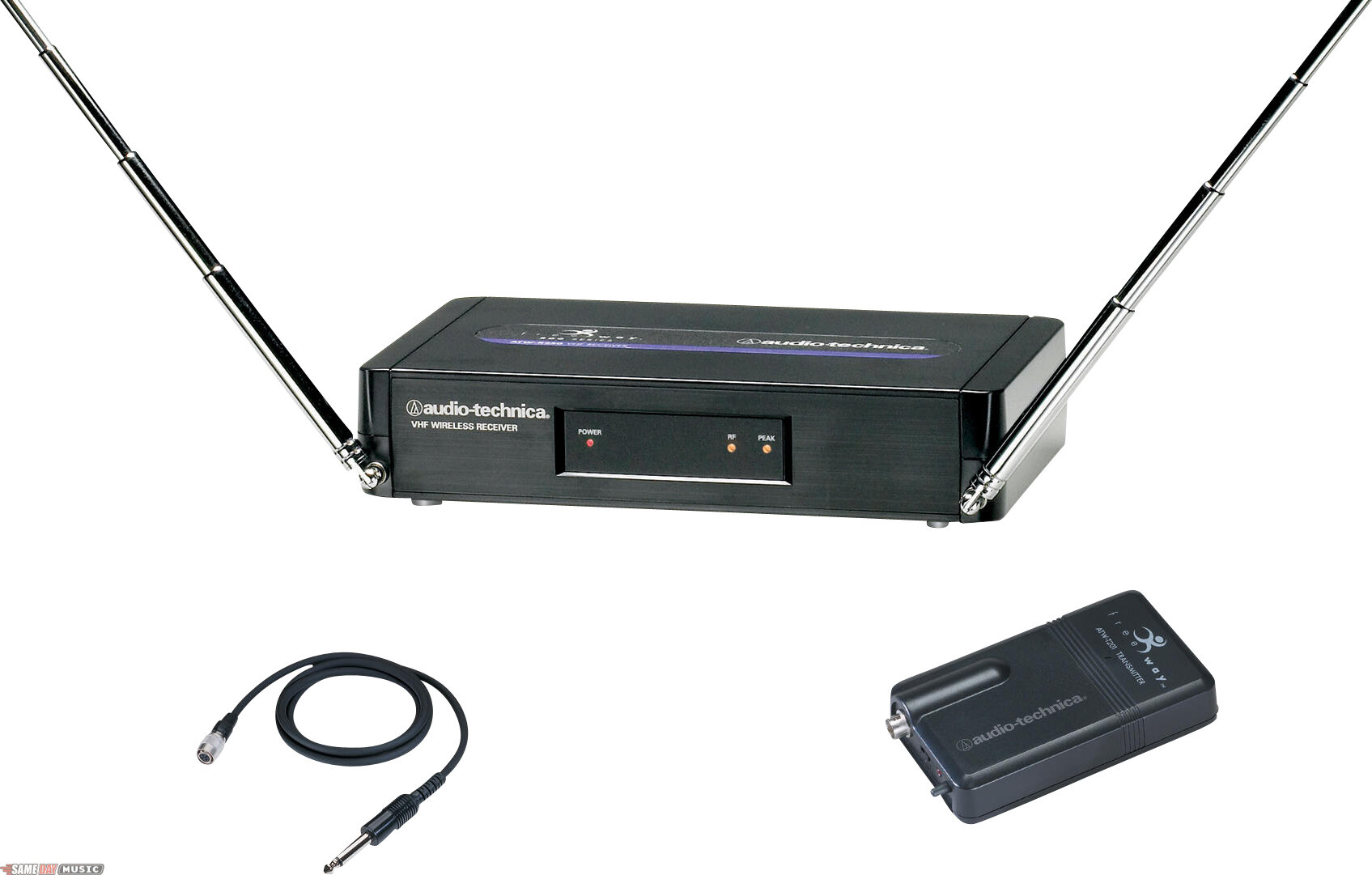

ATW-251/G
ATW-R250 receiver, ATW-T201 transmitter and Hi-Z instrument input cable.

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Same Day Music is an authorized dealer of Audio Technica products.

Overall System Specifications
Operating Frequency: VHF high band, 169 MHz to 172 MHz

Number of Channels: Fixed channel

Frequency Stability: +/- 0.005%

Modulation Mode: FM

Maximum Deviation: +/- 15 kHz

Operating Range: 200' typical

Operating Temperature Range: 40 degrees F (4 degrees C) to 110 degrees F (43 degrees C)

Frequency Response: 80 Hz to 13 kHz

Receiver Specifications
Receiving System: Non-diversity, single-channel, dual antenna system

Image Rejection: 50 dB minimum

Signal-to-noise Ratio: 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz

Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)

Sensitivity: 20 decibel micro volts for 60 dB S/N (IEC-weighted)

Audio Output: 350 mV (1 kHz modulation, 10 kHz deviation, 100 k ohm load)

Output Connector: 1/4" TS ("mono") phone jack

Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply

Dimensions: 7.48" (190.0 mm) W x 1.65" (42.0 mm) H x 5.12" (130.0 mm) D

Net Weight: 11.0 oz (311 g)

Accessory Included: Power supply

Body-pack Transmitter Specifications
RF Power Output: 10 mW High position, 2 mW Low position, typical

Spurious Emissions: Under federal regulations

Dynamic Range: >=90 dB, A-weighted

Input Connections: High impedance, low impedance, bias

Battery: 9V (NEDA type 1604) alkaline, not included

Current Consumption: 30 mA typical

Battery Life: Approximately 15 hours in High position; Approximately 20 hours in Low position (depending on battery type and use pattern)

Dimensions: 2.56" (65.0 mm) W x 4.33" (110.0 mm) H x 1.00" (25.4 mm) D

Net Weight: 2.8 oz (78 g) (without battery)

Same Day Music is an authorized dealer of Audio Technica products.

Shipping Weights and Dimensions

Frequency 169.505

Shipping Weight: 3 lbs

Shipping Dimensions: 15 x 15 x 3 in

Frequency 170.245

Shipping Weight: 3 lbs

Shipping Dimensions: 15 x 15 x 3 in

Frequency 171.905

Shipping Weight: 3 lbs

Shipping Dimensions: 15 x 15 x 3 in
