Audio-Technica ATW-251H Wireless System, Headset

The Audio-Technica ATW-251H wireless system is designed to provide reliable performance, easy setup and clear, natural sound quality. Each Audio-Technica ATW-251H professional VHF wireless system includes a receiver and body-pack transmitter with headset on a specific crystal-controlled frequency. A novel dipole antenna system on the receiver improves operation by providing a ground element in addition to the usual signal element.

Features
- Easy operation and clear, natural sound quality
- Reliable performance and durable construction
- Advanced dipole antenna system for extended operating range
- Power, RF, and AF Peak indicators
- Volume control, 1/4" output jack and space-saving power supply
- Rugged unidirectional dynamic element on handheld microphone/transmitter
- Variable microphone trim control and easily accessible On/Standby/Off switch on transmitters
- Professional locking connector on UniPak(TM) body-pack transmitter
- Available in 5 system configurations

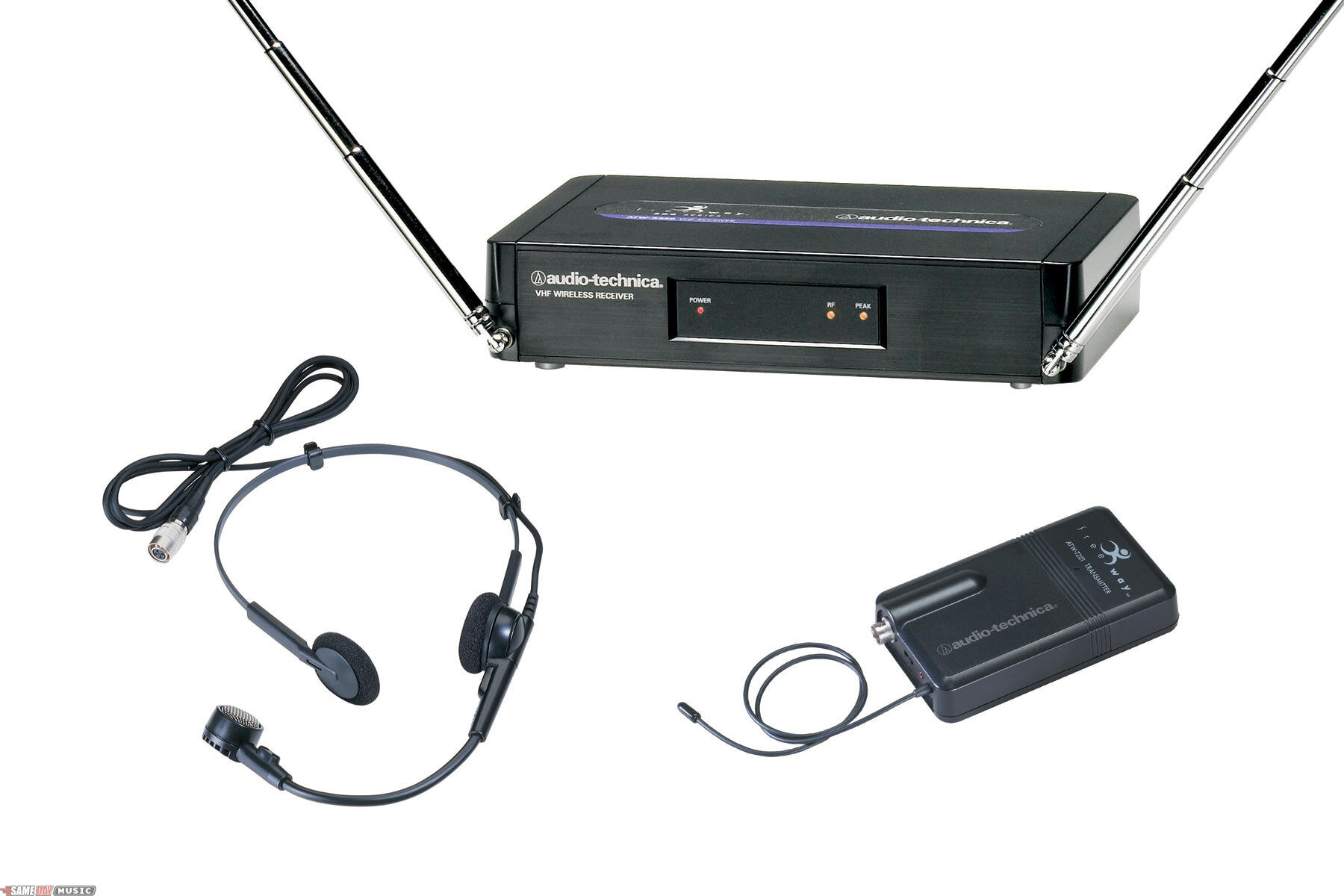

ATW-251/H
ATW-R250 receiver, ATW-T201 transmitter and PRO 8HEcW headworn microphone.

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Same Day Music is an authorized dealer of Audio Technica products.

Overall System Specifications
- Operating Frequency: VHF high band, 169 MHz to 172 MHz
- Number of Channels: Fixed channel
- Frequency Stability: +/- 0.005%
- Modulation Mode: FM
- Maximum Deviation: +/- 15 kHz
- Operating Range: 200' typical
- Operating Temperature Range: 40 degrees F (4 degrees C) to 110 degrees F (43 degrees C)
- Frequency Response: 80 Hz to 13 kHz

Receiver Specifications
- Receiving System: Non-diversity, single-channel, dual antenna system
- Image Rejection: 50 dB minimum
- Signal-to-noise Ratio: 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
- Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
- Sensitivity: 20 decibel micro volts for 60 dB S/N (IEC-weighted)
- Audio Output: 350 mV (1 kHz modulation, 10 kHz deviation, 100 k ohm load)
- Output Connector: 1/4" TS ("mono") phone jack
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
- Dimensions: 7.48" (190.0 mm) W x 1.65" (42.0 mm) H x 5.12" (130.0 mm) D
- Net Weight: 11.0 oz (311 g)
- Accessory Included: Power supply

Body-pack Transmitter Specifications
- RF Power Output: 10 mW High position, 2 mW Low position, typical
- Spurious Emissions: Under federal regulations
- Dynamic Range: >=90 dB, A-weighted
- Input Connections: High impedance, low impedance, bias
- Battery: 9V (NEDA type 1604) alkaline, not included
- Current Consumption: 30 mA typical
- Battery Life: Approximately 15 hours in High position; Approximately 20 hours in Low position (depending on battery type and use pattern)
- Dimensions: 2.56" (65.0 mm) W x 4.33" (110.0 mm) H x 1.00" (25.4 mm) D
- Net Weight: 2.8 oz (78 g) (without battery)
