Audio Technica ATW701H92TH Headset Wireless System

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Audio-Technica’s 700 Series Freeway wireless delivers professional features and sound quality unheard of in its class. These easy-to-use wireless systems feature eight selectable frequency-coordinated channels, diversity operation for increased range/reliability, automatic frequency scanning, Tone Lock squelch and more. 700 Series Freeway systems come equipped with your choice of handheld, headworn, or lavalier microphones; or choose a system designed for guitar hookup. For multiple-mic applications, as many as eight systems may be used together.

Features

8 selectable frequency-coordinated UHF channels

Use up to 8 simultaneous systems—all channels compatible

Automatic frequency scanning

Diversity operation for increased range/reliability

LED Channel display plus Antenna, AF Peak indicators

Balanced XLR and unbalanced 1/4 in. output connectors

Tone Lock squelch system eliminates interference when transmitter is off

UniPak transmitter features: separate guitar/mic trim control, switchable high/low RF power, internal channel selector, multi-color battery/power indicator, AA operation

Handheld transmitter features: variable trim control, internal channel selector, multi-color battery/power indicator, AA operation

Freeway body-pack systems are compatible with all Audio-Technica Wireless Essentials microphones and cables

ATW701H92TH Headset Wireless System

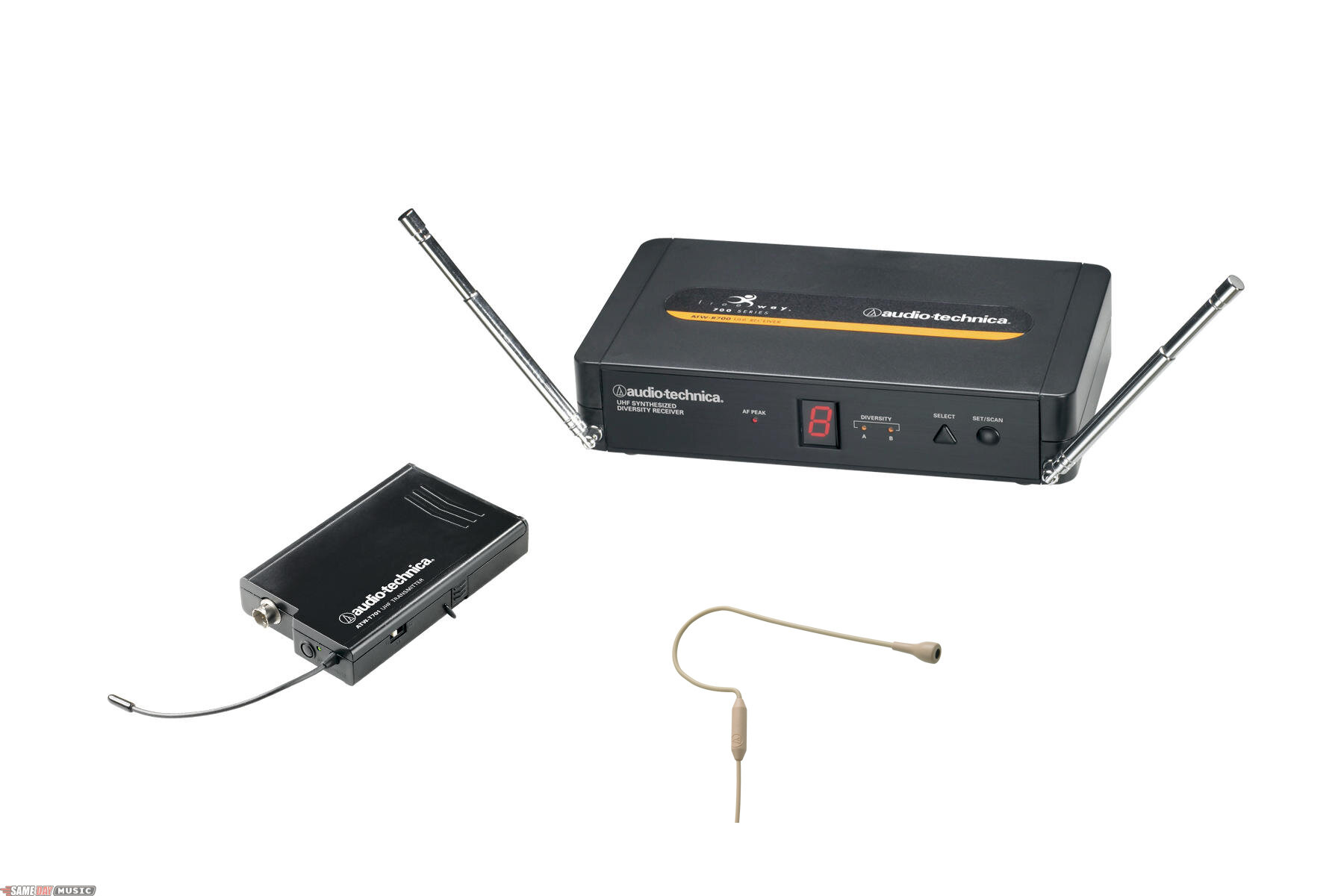

Includes ATWR700 receiver, ATWT701 transmitter and PRO92CWTH headworn microphone (beige).

PRO92CW Headset
Audio-Technica's PRO 92cW wireless omnidirectional condenser headworn microphone offers a natural, smooth frequency response optimized for vocal articulation. The mic features a small condenser capsule; a lightweight, contoured earpiece; and a flexible boom that is easily repositioned for a comfortable fit. Terminated to fit Audio-Technica wireless systems.

Same Day Music is an authorized dealer of Audio Technica products.

Overall System Specifications
Operating Frequencies: UHF band, 542.125 MHz to 561.250 MHz

Number of Channels: 8

Frequency Stability: +/-0.005%, Phase Lock Loop frequency control

Modulation Mode: FM

Maximum Deviation: +/-25 kHz

Operating Range: 200 ft. typical

Operating Temperature Range: 40 degrees F (4 degrees C) to 110 degrees F (43 degrees C)

Frequency Response: 100 Hz to 12 kHz

Receiver Specifications
Receiving System: Antenna-switching diversity

Image Rejection: 55 dB minimum

Signal-to-noise Ratio: >80 dB at 10 kHz deviation (IEC-weighted), maximum deviation 25 kHz

Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)

Sensitivity: 25 dB
