Audio-Technica ATW-801/G System 8 VHF Guitar Wireless System

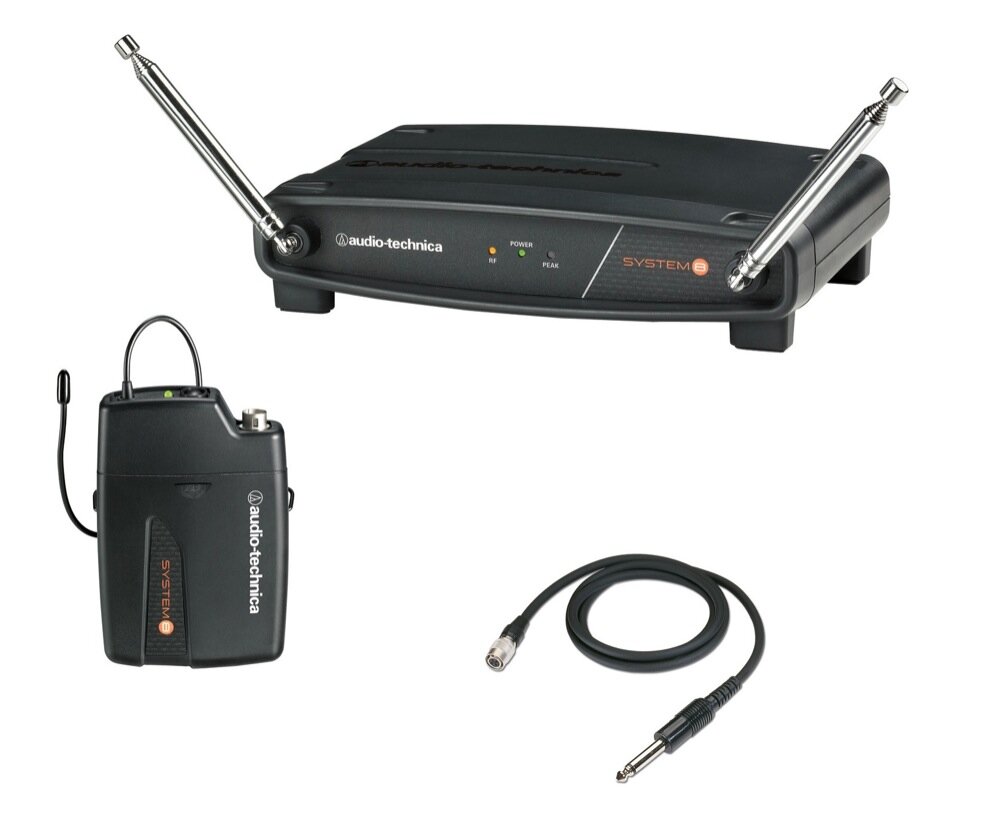

Featuring sleek, stackable, contemporary styling, Audio-Technica's ATW-801/G System 8 VHF guitar wireless system is designed for reliable performance, easy setup and clear, natural sound quality. These single-channel, fixed-frequency systems are available in three traveling VHF frequencies (169.505, 170.245, and 171.905 MHz). The Audio-Technica ATW-801/G includes an ATW-R800 receiver and ATW-T801 UniPak transmitter with AT-GcW guitar/instrument input cable.

Features:

- Easy operation and clear, natural sound quality
- Reliable performance and durable construction
- Advanced dipole antenna system for extended operating range
- Power, RF, and AF Peak indicators
- Volume control, 1/4" output jack and user-adjustable squelch
- Rugged unidirectional dynamic element on handheld microphone/transmitter
- Variable microphone trim control and multi-color battery/power indicator, AA operation on transmitters
- Professional locking connector on UniPak(R) body-pack transmitter
- Available in 7 system configurations

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at http://www.fcc.gov/cgb/wirelessmicrophones.

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Same Day Music is an authorized dealer of Audio-Technica products.

- Operating Frequency: VHF highband, 169 MHz to 172 MHz
- Modulation Mode: FM
- Maximum Deviation: +/-10 kHz
- Dynamic Range: >/=90 dB (A-weighted), typical
- Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
- Operating Range: 200' (60 m) typical
- Open range environment with no interfering signals
- Operating Temperature Range: 40* F (4* C) to 110* F (43* C)
- Battery performance may be reduced at very low temperatures
- Frequency Response: 80 Hz to 13 kHz

Receiver Specifications:
- Receiving System: Non-diversity, single-channel, dual antenna system
- Image Rejection: 50 dB minimum
- RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
- Audio Output: 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load), nominal
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
- Dimensions: 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D
- Net Weight: 11.8 oz (335 grams)
- Accessory Included: Power supply

Body Pack Transmitter:
- RF Power Output: 10 mW
- Spurious Emissions: Following federal and national regulations
- Input Connections: Four-pin Locking Connector
- Pin 1: GND
- Pin 2: INST INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +9V
- Batteries: Two 1.5V AA Alkaline (not included)
- Battery Life: 8 hours (alkaline)
- Depending on battery type and use pattern
- Dimensions: 2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) D
- Net Weight: 3.0 oz (84.5 grams) (without battery)

Same Day Music is an authorized dealer of Audio-Technica products.

Shipping Weights and Dimensions

Channel T2 (169.505 MHz)

Shipping Weight: 3 lbs

Shipping Dimensions: 14 x 11 x 5 in

Channel T3 (170.245 MHz)

Shipping Weight: 3 lbs

Shipping Dimensions: 14 x 11 x 4 in

Channel T8 (171.905 MHz)

Shipping Weight: 3 lbs

Shipping Dimensions: 14 x 11 x 4 in
