    Audio-Technica BP4025 X/Y Stereo Field Microphone

    Phantom power operation--for use with professional equipment. Includes one balanced cable (two 3-pin XLRM-type connectors at output).

    This product has been discontinued or is no longer sold by SameDayMusic.

    We recommend this product instead:

    Audio-Technica PRO 24 Stereo Condenser Microphone

    $89

    The PRO 24 sets a price/performance standard in stereo microphone technology. Designed for professional recording and DAT field use, it offers the convenience of affordable, high-quality stereo pickup in a single microphone. Its compact, lightweight design is perfect for camera-mount use. The microphone features a pair of cardioid elements in an X-Y configuration to provide the spatial impact and realism of a live sound field. > More

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

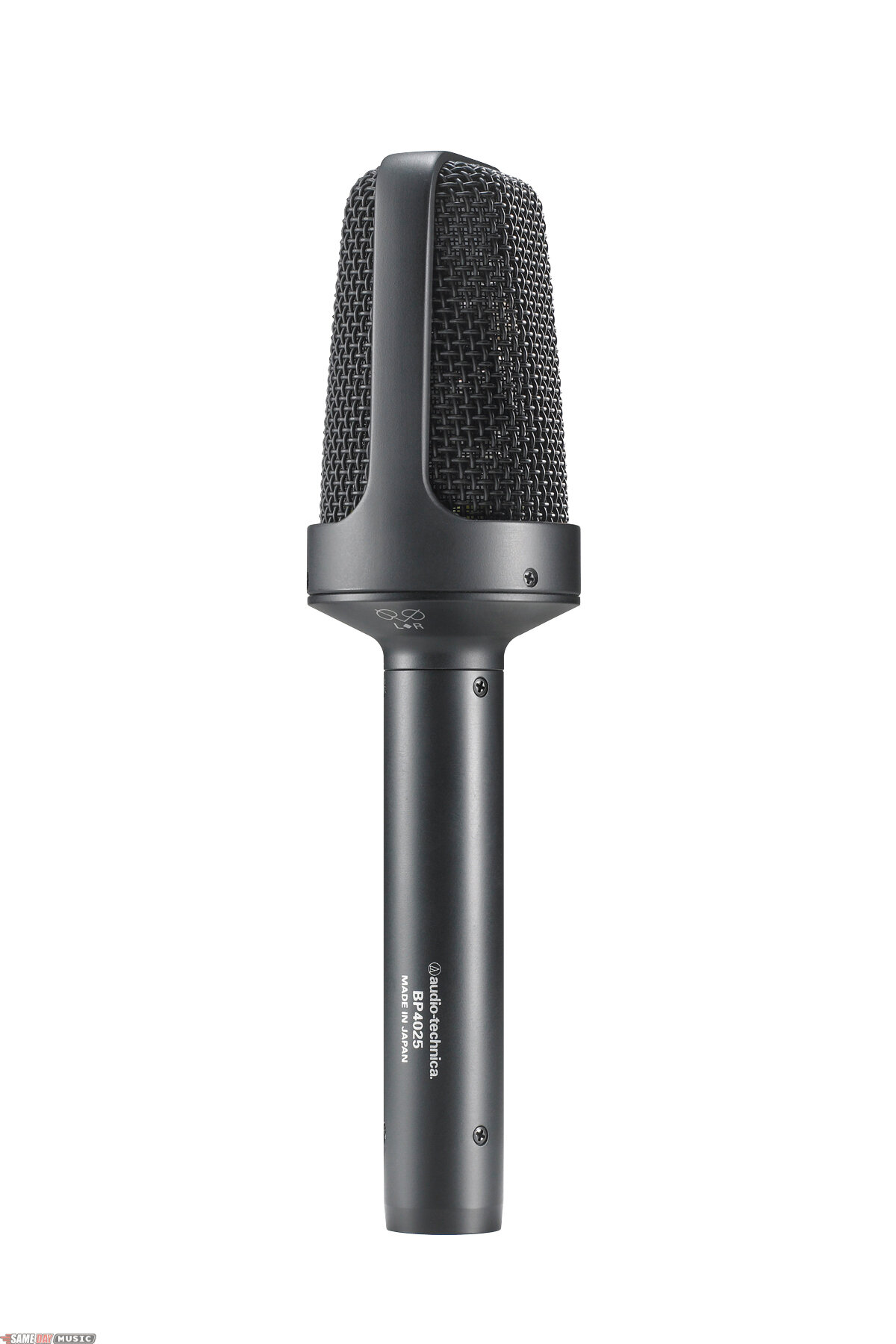

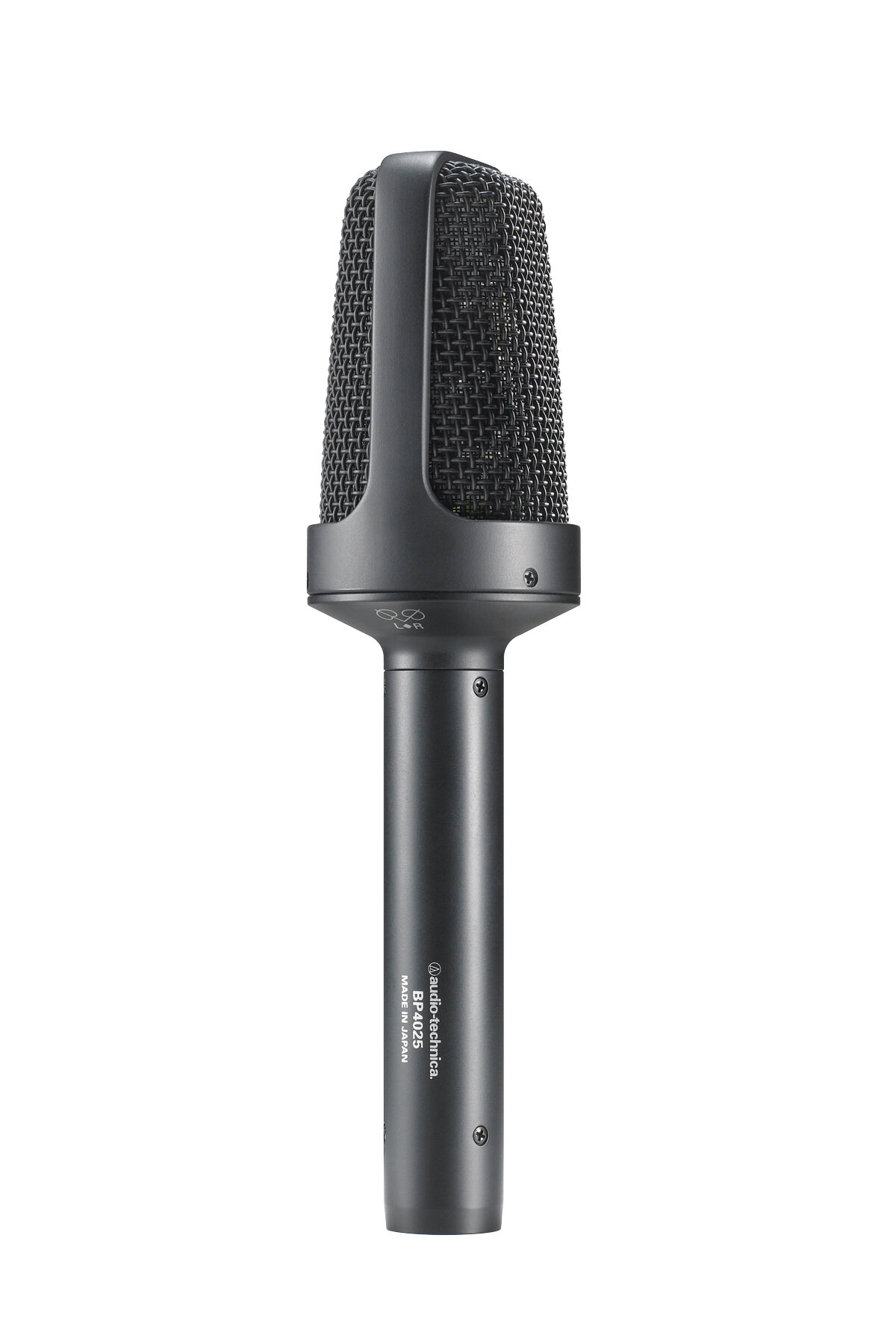

    Audio-Technica BP4025 X/Y Stereo Field Recording Microphone Product Description

    Designed for broadcast and professional recording, Audio-Technica's BP4025 stereo condenser offers large-diaphragm capsules in an innovative coincident capsule configuration. This allows for a smaller housing while producing an X/Y stereo image with the spatial impact and realism of a live sound field. Ideal for use with professional audio and video equipment, the microphone is fully RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).

    Features
    Large-diaphragm capsules offer pristine sound quality and exceptionally low noise

    Innovative coincident capsule configuration produces accurate stereo image in smaller housing

    Compact, lightweight design is ideal for camera-mount use

    Excellent channel separation

    Phantom power operation--for use with professional equipment

    Switchable low-frequency roll-off and 10 dB pad

    Includes one balanced cable (two 3-pin XLRM-type connectors at output)

    RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)

    Same Day Music is an authorized dealer of Audio-Technica products.

    Audio Technica BP-4025 Technical Description

    Element: Fixed-charge back plate permanently polarized condenser
    Polar Pattern: X/Y Stereo

    Frequency Response: 20-17,000 Hz

    Low Frequency Roll-Off: 80 Hz, 12 dB/octave

    Open Circuit Sensitivity: -32 dB (25.1 mV) re 1V at 1 Pa

    Channel Balance: <2.5 dB

    Impedance: 170 ohms

    Max Input Sound Level: 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal)

    Dynamic Range (Typical): 131 dB, 1 kHz at Max SPL

    SNR: 80 dB, 1 kHz at 1 Pa

    Phantom Power Requirements: 11-52V DC, 7 mA typical (both channels total)

    Switch: Flat, roll-off; 10 dB pad (nominal)

    Weight: 269 g (9.5 oz)

    Dimensions: 186.0 mm (7.32 in.) long, 47.6 mm (1.87 in.) head diameter, 21.0 mm (0.83 in.) body diameter

    Output Connector: Integral 5-pin XLRM-type

    Cable: 5.0 m (16.5 ft) long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end

    Accesories Furnished: AT8405a stand clamp for 5/8 in.-27 threaded stands; windscreen; soft protective pouch

    Same Day Music is an authorized dealer of Audio-Technica products.
