    Avalon M5 Pure Class A Microphone Preamplifier, Half-Rack

    100% discrete, Pure Class A.
    Product Rated 8.8 Out of 10 (6 ratings)
    **********
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 164Q-ZBH6

    Web Item #AVAM5

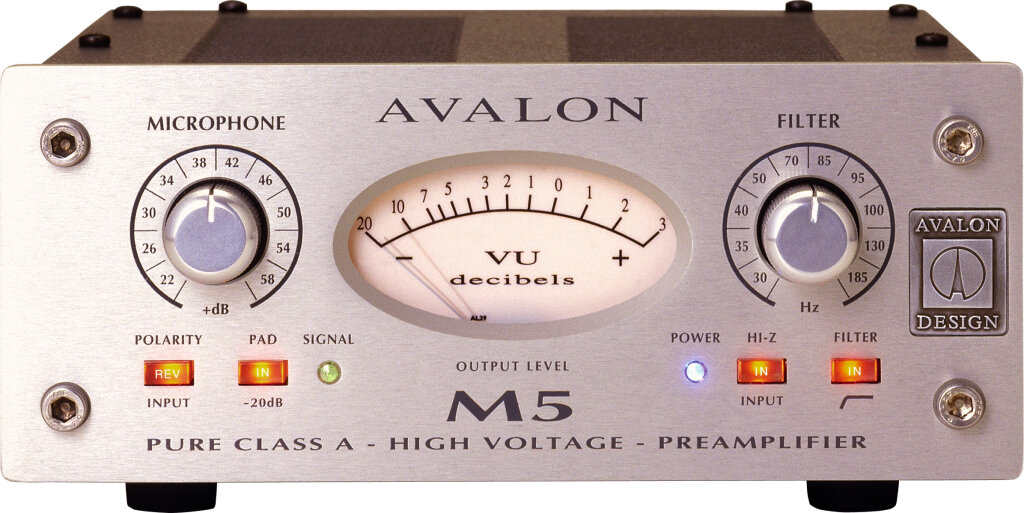

    Avalon M5 Pure Class A Half Rack Preamp
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Manuals and Documents: Manual Specs
    Avalon Warranty: Avalon Warranty Information One year parts and labor warranty. 90 day warranty for tubes. Avalon does not offer a manufacturer's warranty on Non-New products. If you have additional warranty questions, please call the manufacturer at 949-492-2000
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    Order Now | Limited Qty
    •
    • 2 Day: $14
    • Overnight: $48
    SpeedPlay: 2 payments of $832.50
    $1,665 Seen a lower price?
    Order Now | Limited Qty
    •
    • 2 Day: $30
    • Overnight: $64
    $1,379
    Order Now | Limited Qty
    •
    • 2 Day: $32
    • Overnight: $66
    $1,499
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Avalon M5 Pure Class A Half Rack Preamplifier Product Description

    The Avalon M5 Pure Class A microphone preamplifier is one of the most musical, low-noise, full-function preamps available today. Designed to optimize absolute signal integrity and musical performance, the M5 combines an advanced transformer input stage with twin high-performance Class A cascode FET and bipolar discrete amplifiers, for sonic excellence unequaled by lesser designs. The M5 is ideal for vocal and acoustic instruments, with an active DI input for the direct recording of bass, guitars and keyboards.

    Features include state-of-the-art, balanced 100% discrete, Pure Class A signal amplifiers, practical user features and rugged hardware designed to deliver true high performance audio for many years.

    Designed for Ultimate Music Recording

    Avalon preamplifiers have been in use since 1986. They have found their way into the world's most famous lead vocalists recording sessions and studios and been featured on thousands of the best selling (and sounding) albums and live performances.

    Minimum Signal Path Design

    Avalon's advanced true symmetry design offers high-voltage, large headroom, extended bandwidth and very low noise. The use of 100% discrete, Pure Class A signal amplifiers give the serious music professional unlimited sonic character and a natural harmonic detail that enhances the program material and becomes one with the music itself.

    Vocalist's Dream Machine

    The M5 microphone preamplifier is the first choice when you are looking to capture a full bodied, dynamic, musical performance from the intimate depths within the artist. The M5 will make your vocal recordings musical masterpieces!

    Features:

    - Pure Class A, 100% discrete design
    - Smooth musical detail and sonic excellence
    - Minimum audio signal path
    - High performance input transformer
    - Microphone and Hi-Z inputs to +36dB
    - Very low noise -126dB
    - High headroom +30dB
    - Gain switched in 2dB steps to +64dB
    - DC coupled Pure Class A output
    - Large illuminated professional VU meter
    - Twin LED peak signal indicators
    -Regulated +48v phantom power supply
    - Low distortion less than 0.5% THD and IMD
    - Variable passive high pass (bass cut) filter
    - All signal routing with sealed silver relays

    Same Day Music is an authorized dealer of Avalon products.

    Avalon M5 Pure Class A Half Rack Preamplifier Technical Description

    Circuit Topology: Twin cascode FET and bipolar low level input signal stages. High-voltage, 100% discrete, symmetrical high-bias Pure Class A amplifiers.
    Input Type and Load: Superior transformer, balanced low-ratio 1500 ohm input load.
    Maximum Mic Level: +36dB balanced XLR pin 2 hot (with -20dB passive attenuator).
    Maximum Instrument Level +30dB balanced 600 ohms, DC coupled, discrete Class A.
    Input Attenuator: -20dB resistive pre transformer primary, sealed silver relay.
    Phantom Power: +48v regulated 50mA capability, sealed silver relay.
    High Pass Filter: Passive, variable from 30Hz to 185Hz @ 6dB per octave, sealed silver relay.
    Polarity Reverse: Sealed silver relay on microphone input.
    Gain Range Input: +20dB to +64dB in 2dB steps.
    Maximum Output Level: +30dB unbalanced 600 ohms, DC coupled, discrete symmetrical Pure Class A.
    Output Type: XLR connector, pin 2 hot (optional balanced JT-1 transformer).
    Noise EIN Unweighted: -126dB 150 ohm.
    Noise 20kHz Unweighted: -100dB
    Distortion THD, IMD: 0.05% nominal
    - Frequency Response -3dB: 1Hz to 120kHz transformer limit.
    - System Bandwidth: DC to 1MHz
    - Output Meter: High quality, illuminated analog VU meter 0dB = +4dB.
    - Peak Meter: Bi-color LED's 0dB and +20dB peak detection circuit.
    - M5 Dimensions: 8.5 x 3.5 x 12 in (216 x 88 x 305mm) half rack width.
    - Weight: 15lbs (6.8kg)
    - Dimensions of Shipping Carton: 24 x 21.5 x 7.5 in (610 x 546 x 190mm)
    - Weight-Packed: 25lbs (11.4kg) includes B2T power supply and cables.
    - AC power supply B2T: External toroidal 100V to 240V, 50-60Hz selectable,
    150 watts maximum.
    - Cables: 1 x 8ft 4 pin ac cable, 1 x 8ft standard IEC cable included.
    - Dimensions: 5 x 7 x 3.25 in (127 x 177 x 83mm)
    - Weight: 7lbs (3.2kg)
    - Rack mount kit (1) RM-1: Single M5 19 inch rack mount kit (holds one half rack unit).
    - Rack mount kit (2) RM-2: Dual M5 19 inch rack mount kit (holds two half rack units).

    Same Day Music is an authorized dealer of Avalon products.
    Shipping Weights and Dimensions
    Base Item
    Shipping Weight: 21 lbs
    Shipping Dimensions: 22 x 18 x 7 in
