Product Description

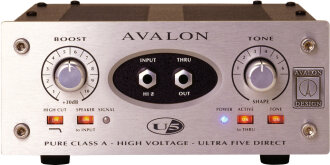

The U5 high-voltage DI-preamp combines a unique passive tone selector with a variable gain preamp and filter. The high input impedance accepts a wide variety of signal levels and instruments from acoustic guitars to high-output active bass guitars and keyboards. The U5 direct box is loaded with sonic character and user features professionals demand.

Features:
Pure Class A, 100% discrete design

Smooth musical detail and sonic excellence

Variable gain preamp to +30dB

Dual microphone and line outputs

Hi-Z 3,000,000 ohm input impedance

Very low noise -100dB

High headroom +30dB

Six tone bank selections.

DC coupled Class A output for superior bass

High cut switch eliminates noise

LED active signal indicator

Headphone monitor output jack

Low distortion less than 0.5% THD and IMD

High level 400 watt speaker input

Active to thru selector - ground isolation switch

100% discrete power supplies for audio path

Internal toroidal power supply for low noise

Long lasting, stainless steel hardware

Sonic Excellence
The Avalon U5 Pure Class A instrument DI & preamplifier is the most powerful direct box available today. Designed to optimize absolute signal integrity and musical performance, the U5 includes many features and sonic excellence unequaled by lesser designs. The U5 is ideal for bass guitar and acoustic instruments, electric guitars, keyboards, synthesizers and low output pickups.

Features include state-of-the-art, high input impedance input stage for zero load effect on sensitive pickups and keyboards, 100% discrete, Pure Class A signal amplifiers, practical user features and rugged hardware designed to deliver true high performance audio for many years.

Designed for Deep and Controlled Bass
Avalon U5 DI-preamps have been in use around the world since 1995. They have found their way into the world's leading musicians rigs and recording sessions and been featured on thousands of the best selling (and sounding) albums and live performances.

Minimum Signal Path Design
The U5 includes a variable gain Class A preamplifier to boost low level pickup signals and a high level speaker input for capturing the live sound of the instruments amplifier. Six passive tone-EQ curves are also included to enhance a variety of acoustic and electric instruments. A high-cut switch eliminates unwanted acoustic pickup and high frequency noise, while a headphone monitor amp has been included for personal listening. Twin DC coupled Class A output amplifiers drive both low level microphone preamp inputs and high level +4dB inputs for direct to tape recording or processing. The active-to-thru switch selects either the instrument input directly or sends the boosted-equalized signal to the amplifier via the front panel jack. A ground isolation switch eliminates any possible earth loop or AC buzz problems with complete safety.

Technical Description

Circuit Topology: 100% discrete, high-voltage Class A

Gain: Switched 3dB steps, maximum gain +30dB

Input Impedance: 3 ,000,000 ohm unbalanced (single ended)

Maximum Input Level +24dBu unbalanced, 400w speaker input

Output Connectors (2): XLR type, pin 2 hot electronic balanced

Maximum Output Level (Class A): +30dBu DC coupled, balanced 600 ohms (mic and line out)

Headphone Output: 0.5w into 600 ohms

Noise 20kHz Unweighted: -100dBu minimum gain position

Distortion THD, IMD: 0.1% at +10dB

Frequency Response, -/+0.5dB: 5Hz to 100kHz

Frequency Response, -3dB: 1Hz to 500kHz (input band limited)

High Cut Filter: -3dB at 8kHz minimum phase design

Tone Selector: Six position rotary switch, all passive filters

AC Power: Internal toroidal AC supply

Dimensions: 8.5 x 3.5 x 12 in. (216 x 88 x 305mm)

Weight-Packed: 12 lbs. (5.4kg)

Rack mount kit (1) RM-1: Single U5 19 in. rack mount kit (holds one half rack unit)

Rack mount kit (2) RM-2: Dual U5 19 in. rack mount kit (holds two half rack units)

Catalog Description

High-voltage Class A DI@Integrated preamp with up to up to +30 dB gain@Passive tone selector@Instrument and speaker inputs@1/4" headphone, 1/4" thru@Mic- and line-level XLR outputs
