Aviom 16OY1 A-Net Card for Yamaha MY Series
Compatible with all Yamaha consoles and mix engines which support the Mini-YGDAI format.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Connections
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION

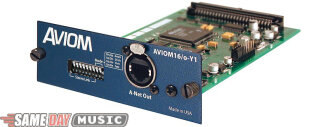

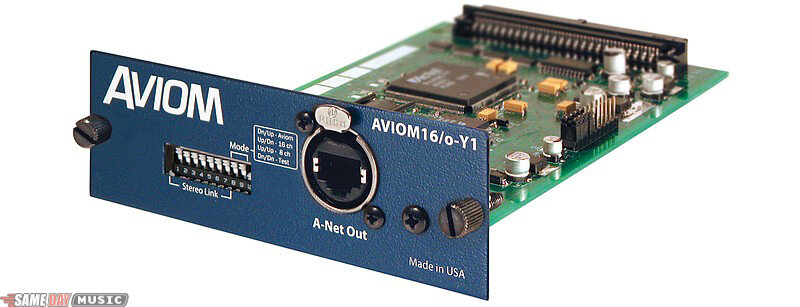

The Aviom 16OY1 A-Net Card eliminates the need for an analog input module, providing a direct digital interface between Yamaha digital products and Aviom's Pro16 Series, including the A16II and A16R Personal Mixers.
The Y1 card fits into any available expansion slot and is compatible with all Yamaha consoles and mix engines which support the Mini-YGDAI format, including:
- 01V96
- 02R96
- DM1000
- DM2000
- PM5D
- PM1D (8-channel mode only)
- M7CL
- DME64N
- DME24N
- DSP5D
- LS9-16
- LS9-32
Configuration of an Aviom monitoring system can be done digitally from the Yamaha console's user interface. Rear-panel DIP switches are provided for stereo link configuration of each channel pair. Mode switches on the Y1 allow the A-Net card to be used with Yamaha digital mixers that support only 8- channel expansion cards, such as the PM1D.
The Y1 card is also compatible with AV-P2 and AN-16/o Output Modules and the A-16D and A-16D Pro A-Net Distributors.
As with all Pro16 Series products, Cat-5e cable lengths of up to 500 feet (150 meters) are possible between devices.
** Note: The original A-16 Personal Mixer (discontinued) is not compatible with the Y1 A-Net card.
The Y1 card fits into any available expansion slot and is compatible with all Yamaha consoles and mix engines which support the Mini-YGDAI format, including:
- 01V96
- 02R96
- DM1000
- DM2000
- PM5D
- PM1D (8-channel mode only)
- M7CL
- DME64N
- DME24N
- DSP5D
- LS9-16
- LS9-32
Configuration of an Aviom monitoring system can be done digitally from the Yamaha console's user interface. Rear-panel DIP switches are provided for stereo link configuration of each channel pair. Mode switches on the Y1 allow the A-Net card to be used with Yamaha digital mixers that support only 8- channel expansion cards, such as the PM1D.
The Y1 card is also compatible with AV-P2 and AN-16/o Output Modules and the A-16D and A-16D Pro A-Net Distributors.
As with all Pro16 Series products, Cat-5e cable lengths of up to 500 feet (150 meters) are possible between devices.
** Note: The original A-16 Personal Mixer (discontinued) is not compatible with the Y1 A-Net card.
TECHNICAL DESCRIPTION
A-Net Pro16 Output: 16 channels of A-Net digital data; * 8 channels on PM1D
Interface Format: Yamaha mini-YGDAI (MY) Expansion Card
Maximum Expansion: Limited only by the number of available MY expansion slots in the digital mixer
Sample Rate: 44.1kHz to 48kHz, +/-10%
Digital Conversion: 24-bit
A-Net Output: A-Net Out: 1; EtherCon(R) RJ45 connector
DIP Switch:
- Switch 1-8: Stereo Link on/off
- Switch 9-10: A-Net mode
A-Net Modes: 8-channel, 16-channel, Aviom, Test
A-Net Pro16: A-Net allows 16 channels of audio to be transmitted over one Cat-5e cable use unshielded Cat-5e UTP (or better) cable; max. length 500 feet (150m) between devices
Latency: <0.880 msec (measured from analog input to analog output)
Power Supply: none required; uses Yamaha device as source of power
Dimensions (WxDxH): 4.75 in. (120.7 mm) x 6.25 in. (158.8 mm); 1.5 in. (38.1 mm)
Weight: 0.8 lbs (0.36 kilo)
Options: AN-16SB System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable
Interface Format: Yamaha mini-YGDAI (MY) Expansion Card
Maximum Expansion: Limited only by the number of available MY expansion slots in the digital mixer
Sample Rate: 44.1kHz to 48kHz, +/-10%
Digital Conversion: 24-bit
A-Net Output: A-Net Out: 1; EtherCon(R) RJ45 connector
DIP Switch:
- Switch 1-8: Stereo Link on/off
- Switch 9-10: A-Net mode
A-Net Modes: 8-channel, 16-channel, Aviom, Test
A-Net Pro16: A-Net allows 16 channels of audio to be transmitted over one Cat-5e cable use unshielded Cat-5e UTP (or better) cable; max. length 500 feet (150m) between devices
Latency: <0.880 msec (measured from analog input to analog output)
Power Supply: none required; uses Yamaha device as source of power
Dimensions (WxDxH): 4.75 in. (120.7 mm) x 6.25 in. (158.8 mm); 1.5 in. (38.1 mm)
Weight: 0.8 lbs (0.36 kilo)
Options: AN-16SB System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable
