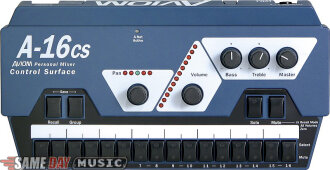

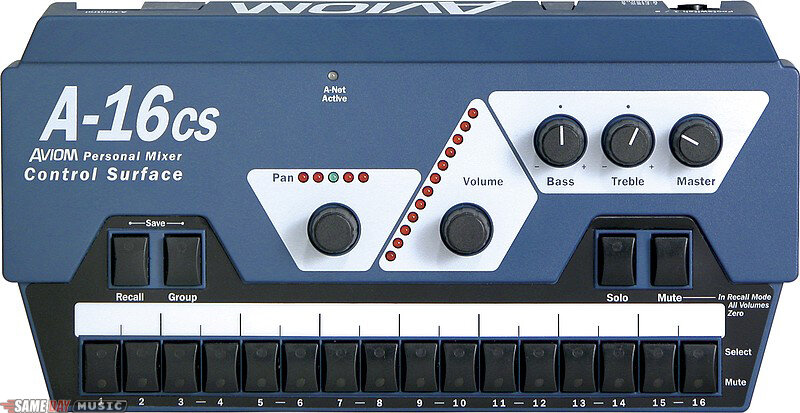

Aviom A16CS Remote Control Surface for A16R

Control of all mix functions in the A16R.

 New $452

Seen a lower price?
Special orderOrder now--Usually ships in 5-10 days

  • Special Order

    This is not a regularly stocked item, but we will place a special order for you as soon as we receive your order. We usually receive special order items from the manufacturer within 5-10 days after placing the order. We will send the item to you the same day we receive it at our warehouse. Your credit card will be charged when the item ships.

    x close

    		•
    • Ground: free ground shipping
    • 2 Day: $4
    • Overnight: $30

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    RECOMMENDED ACCESSORIES:

    preview image
    View larger image
    ADDITIONAL VIEWS:

    • Main

    • Rear

    MORE RESOURCES:

    Product Documents:

    FIND SIMILAR PRODUCTS:

    PRODUCT DESCRIPTION

    The A16CS Control Surface allows the A16R Personal Mixer to be mounted in a rack with power amps, wireless transmitters, effects, etc., while still allowing a performer to have complete control over mix functions and presets. In addition, the A16CS provides intuitive control over basic mix functions for systems in non-performance settings.

    The user interface is similar to that of the A16II.

    Features
    Control of all mix functions in the A16R

    Sixteen channel-select buttons with dual LEDs

    Dedicated Recall, Group, Solo, and Mute buttons

    Save and Recall of the 16 Presets in the A16R

    Pan/Spread control with LED readout

    Channel volume control with LED readout

    Master Volume, Treble, and Bass controls

    Mounts easily on a mic stand with the optional MT1 mic stand mount

    Dual footswitch jack for selecting Presets (up/down)

    A-Control jack to connect the A16CS to the A16R via Cat-5

    TECHNICAL DESCRIPTION

    A-Control Inputs: One Category 5 (RJ45 connector)

    Footswitch Input: One TRS

    Size (WxDxH): 10.75 x 5.6 x 2.22 in.

    Weight: 3.4 lbs

    Options:
    - MT1 Mic Stand Mount
    - EB1 Extension Bracket
