Aviom A16D A-NET Distribution Hub
Accepts one A-Net input signal and provides 8 A-Net outputs.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:

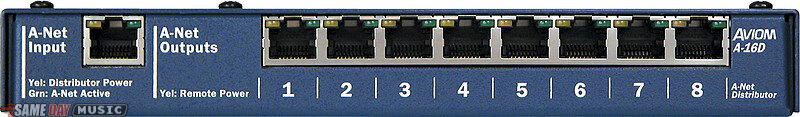

Main
Rear
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
With one A-Net input and eight parallel A-Net outputs, the A16D provides a low-cost way to replace daisy-chain connections with star configurations. The A16D is also capable of distributing DC power out any of the eight A-Net Out jacks, eliminating the need to connect a power supply at each Personal Mixer. Any combination of powered and unpowered connections is possible; simply connect external power supplies to the A16D on a per- channel basis as needed.
The A16D is also a cost-effective way to refresh an A- Net signal for long runs in excess of 500ft/150m, to provide a redundant cable path in a digital snake or audio distribution system, and to split an A-Net signal to multiple output locations. There is no limit to the number of A-Net Distributors that can be used in a single system.
Features
One A-Net input, eight A-Net outputs
Can insert DC power for up to eight A-Net devices into the Cat-5e cable
1/2-rack-space footprint - mounts easily on a standard rack shelf
A-Net activity LEDs on the main input
DC power indicator LEDs on each output jack
Multiple A16D Distributors can be used in a system
The A16D is also a cost-effective way to refresh an A- Net signal for long runs in excess of 500ft/150m, to provide a redundant cable path in a digital snake or audio distribution system, and to split an A-Net signal to multiple output locations. There is no limit to the number of A-Net Distributors that can be used in a single system.
Features
One A-Net input, eight A-Net outputs
Can insert DC power for up to eight A-Net devices into the Cat-5e cable
1/2-rack-space footprint - mounts easily on a standard rack shelf
A-Net activity LEDs on the main input
DC power indicator LEDs on each output jack
Multiple A16D Distributors can be used in a system
TECHNICAL DESCRIPTION
A-Net Inputs: One Category 5 (RJ45 connector)
A-Net Outputs: 8 Category 5 (RJ45 connector), optionally powered (DC)
Remote DC Power Inputs 8; Rear panel; accepts power supplies from A16II or A16R; size: 2mm
Output Voltage for Personal Mixers: 18-24 VDC, 0.5 amp transmitted over the Cat-5e cable
Main Power Input: One; accepts included external DC power supply, universal switching type
LED Indicators: Power On, Yellow
A-Net LED Indicators: A-Net Active, Green
Remote DC Power Active LED: One per A-Net output
Size (WxDxH): 8.5 in. (215 mm) x 6.7 in. (170 mm) x 1.2 in. (30.4 mm); can be rack-mounted on a standard 1U rack accessory shelf (optional)
Weight: 2.0 lbs. (0.91 kilo)
A-Net Outputs: 8 Category 5 (RJ45 connector), optionally powered (DC)
Remote DC Power Inputs 8; Rear panel; accepts power supplies from A16II or A16R; size: 2mm
Output Voltage for Personal Mixers: 18-24 VDC, 0.5 amp transmitted over the Cat-5e cable
Main Power Input: One; accepts included external DC power supply, universal switching type
LED Indicators: Power On, Yellow
A-Net LED Indicators: A-Net Active, Green
Remote DC Power Active LED: One per A-Net output
Size (WxDxH): 8.5 in. (215 mm) x 6.7 in. (170 mm) x 1.2 in. (30.4 mm); can be rack-mounted on a standard 1U rack accessory shelf (optional)
Weight: 2.0 lbs. (0.91 kilo)
