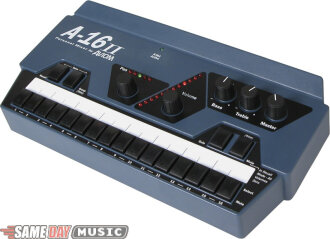

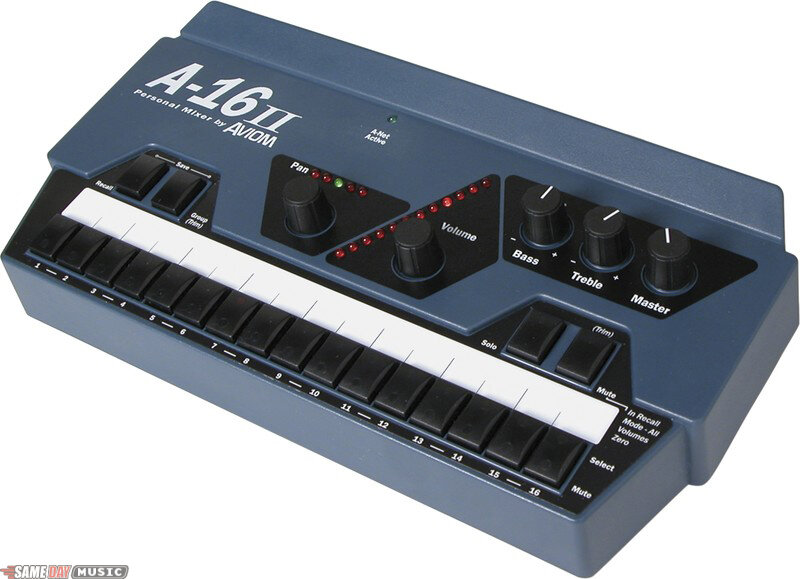

Aviom A16II Personal Monitor Mixer
16-channel stereo mixer for monitor or headphone mixes.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Rear
Top
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The A16II allows individual performers to create custom monitor mixes tailored to their individual needs. Designed for use in live performance or in the studio, the A16II Personal Mixer gives each performer control over channel volume, grouping, pan, stereo spread, and master volume and tone. Every Personal Mixer in a system can create a unique monitor mix for a performer. Users can save and recall up to sixteen custom mixes as presets in their Personal Mixer.
The stereo output from the A16II can be used to drive wired or wireless in-the-ear monitors, headphones, powered floor wedges, an amplifier, or spot monitors.
The A16II Personal Mixer is fully compatible with all Pro16 Series products, including Aviom's digital interface card for Yamaha digital mixing consoles. Support for Aviom monitor mixing is available in the form of console interface cards from an ever- increasing list of digital console manufacturers including Digidesign, Soundcraft, Innovason, etc. Look for the A-Net Active logo, and see our Partners page for additional information.
Mixers can be daisy-chained or connected in parallel using an A-Net Distributor. Parallel connections also allow power to be supplied to the mixers over the Cat-5e cable. As with all Pro16 Series products, Cat-5e cable runs of up to 500 feet (150 meters) are possible between devices, and there is no limit to the number of mixers in a system.
Features
16-channel stereo mixer
Fully adjustable pan per channel
Line/headphone audio output
Auto-detect mono/stereo circuitry
Simple set-up with Cat-5e cables
Sixteen Preset locations for storing custom mixes
Channel solo, mute, and group functions
Global trim for reducing all channel volumes
Sixteen channel select buttons with dual LEDs
Pan/Spread control with LED readout
Channel volume control with LED level readout
Master Volume, Treble, and Bass controls
Mounts easily on a mic stand with the optional MT-1 Mic Stand Mount
The stereo output from the A16II can be used to drive wired or wireless in-the-ear monitors, headphones, powered floor wedges, an amplifier, or spot monitors.
The A16II Personal Mixer is fully compatible with all Pro16 Series products, including Aviom's digital interface card for Yamaha digital mixing consoles. Support for Aviom monitor mixing is available in the form of console interface cards from an ever- increasing list of digital console manufacturers including Digidesign, Soundcraft, Innovason, etc. Look for the A-Net Active logo, and see our Partners page for additional information.
Mixers can be daisy-chained or connected in parallel using an A-Net Distributor. Parallel connections also allow power to be supplied to the mixers over the Cat-5e cable. As with all Pro16 Series products, Cat-5e cable runs of up to 500 feet (150 meters) are possible between devices, and there is no limit to the number of mixers in a system.
Features
16-channel stereo mixer
Fully adjustable pan per channel
Line/headphone audio output
Auto-detect mono/stereo circuitry
Simple set-up with Cat-5e cables
Sixteen Preset locations for storing custom mixes
Channel solo, mute, and group functions
Global trim for reducing all channel volumes
Sixteen channel select buttons with dual LEDs
Pan/Spread control with LED readout
Channel volume control with LED level readout
Master Volume, Treble, and Bass controls
Mounts easily on a mic stand with the optional MT-1 Mic Stand Mount
TECHNICAL DESCRIPTION
Audio Output: 1/4-inch TRS stereo, headphone or line level
Line/Headphone TRS Output:
- Tip: Audio Left; Ring: Audio Right; Sleeve: Ground
- Auto-detects mono plugs
A-Net Input/Output: 1 A-Net input, 1 A-Net output; Category 5 (RJ45 connector)
Digital to Analog Conversion Bit Depth: 24 bit
Signal to Noise Ratio: (Referenced to 0dB) -103dB
Latency: <0.880 msec (measured from analog input to analog output)
Pro16 A-Net: Uses unshielded Cat-5e UTP (or better) cable; maximum 500ft (150m) between devices
Tone Controls:
- Treble +/-12dB at 9kHz shelving
- Bass +/-12dB at 160Hz shelving
Maximum Levels (RMS): Line/Headphone outs: 1.0 watt at 100 ohms
Impedance: Line/Headphone outs: 32 ohms
Power Supply:
- Input Voltage: 100-240 volts, 50/60Hz, 30VA
- Output Voltage: External, DC, universal switching type, 18-24 VDC, 0.5 amp; Plug Size - 2 mm
Dimensions: (WxDxH): 10.75 in. (273 mm) x 5.6 in. (142.2 mm); 2.25 in. (57.5 mm)
Weight: 3.4 lbs. (1.54 kilos)
Options:
- MT-1 Mic Stand Mount
- EB-1 Extension Bracket
Line/Headphone TRS Output:
- Tip: Audio Left; Ring: Audio Right; Sleeve: Ground
- Auto-detects mono plugs
A-Net Input/Output: 1 A-Net input, 1 A-Net output; Category 5 (RJ45 connector)
Digital to Analog Conversion Bit Depth: 24 bit
Signal to Noise Ratio: (Referenced to 0dB) -103dB
Latency: <0.880 msec (measured from analog input to analog output)
Pro16 A-Net: Uses unshielded Cat-5e UTP (or better) cable; maximum 500ft (150m) between devices
Tone Controls:
- Treble +/-12dB at 9kHz shelving
- Bass +/-12dB at 160Hz shelving
Maximum Levels (RMS): Line/Headphone outs: 1.0 watt at 100 ohms
Impedance: Line/Headphone outs: 32 ohms
Power Supply:
- Input Voltage: 100-240 volts, 50/60Hz, 30VA
- Output Voltage: External, DC, universal switching type, 18-24 VDC, 0.5 amp; Plug Size - 2 mm
Dimensions: (WxDxH): 10.75 in. (273 mm) x 5.6 in. (142.2 mm); 2.25 in. (57.5 mm)
Weight: 3.4 lbs. (1.54 kilos)
Options:
- MT-1 Mic Stand Mount
- EB-1 Extension Bracket
