Aviom AN16iM 16-Channel Microphone and Line Level Input Module
Sixteen high-quality mic preamps. 24-bit A-D converters. Channels can be stereo linked within Pro16 system.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Rear
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION

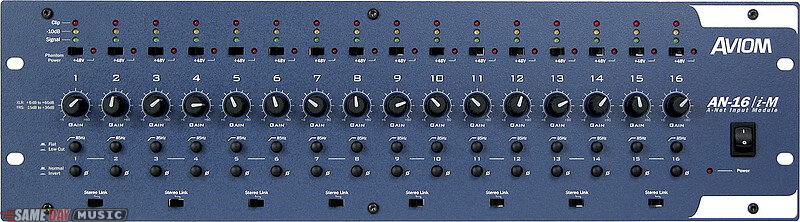

The AN16iM is a 3U-high rack-mounted mic- and line-level input device with sixteen high-quality microphone preamps and 24-bit A-to-D converters. Each channel contains a three-segment level meter, a continuously variable gain knob, a phase reverse switch, 48-volt phantom power, and a rumble filter with an 85Hz rolloff. In addition, each pair of channels can be stereo linked for stereo operation in a Pro16 Monitor Mixing System.
The rear panel of the AN16iM contains a host of professional connectivity features. Each channel has a combo jack that can accept either XLR mic or 1/4-inch line-level (balanced or unbalanced) inputs. Sixteen passive mic Thru connectors create a built-in microphone splitter. Balanced insert points with separate 1/4 in. Send and Return jacks allow easy interfacing with external processing devices. The sixteen insert Sends can also be used as a set of post-gain direct audio outputs. The AN16iM uses an internal power supply with a standard IEC power connector.
Two parallel A-Net outputs allow the AN16iM to send A-Net data to multiple destinations, allowing for simultaneous patching to a monitor console and a front-of-house console. Both A-Net outputs feature heavy duty Neutrik EtherCon combo RJ45 connectors. The built-in A-Net expansion jack allows two 16-channel A-Net streams to be combined onto a single cable (32x0 or 16x16), and the AN16SBR System Bridge can be used to combine up to four 16-channel streams onto a single cable in a variety of bi-directional configurations.
As with all Pro16 Series products, Cat5e cable runs of up to 500 feet (150 meters) are possible between devices.
Features
Sixteen high quality mic preamplifiers, with 24-bit A-to-D converters
XLR mic or 1/4 in. TRS balanced line-level inputs on combo jacks
48V phantom power on each channel
Three-segment LED level meter
Continuously variable gain knob for each channel
Phase reverse switch per channel
Rumble filter switch (85Hz rolloff) on each channel
Stereo Link switch per pair of channels
Built-in passive mic splitter
Balanced insert send and return jacks (1/4 in. TRS)
Dual A-Net outputs
A-Net Expansion jack for 32x0 and 16x16 channel systems
Internal universal power supply; IEC power connector
The rear panel of the AN16iM contains a host of professional connectivity features. Each channel has a combo jack that can accept either XLR mic or 1/4-inch line-level (balanced or unbalanced) inputs. Sixteen passive mic Thru connectors create a built-in microphone splitter. Balanced insert points with separate 1/4 in. Send and Return jacks allow easy interfacing with external processing devices. The sixteen insert Sends can also be used as a set of post-gain direct audio outputs. The AN16iM uses an internal power supply with a standard IEC power connector.
Two parallel A-Net outputs allow the AN16iM to send A-Net data to multiple destinations, allowing for simultaneous patching to a monitor console and a front-of-house console. Both A-Net outputs feature heavy duty Neutrik EtherCon combo RJ45 connectors. The built-in A-Net expansion jack allows two 16-channel A-Net streams to be combined onto a single cable (32x0 or 16x16), and the AN16SBR System Bridge can be used to combine up to four 16-channel streams onto a single cable in a variety of bi-directional configurations.
As with all Pro16 Series products, Cat5e cable runs of up to 500 feet (150 meters) are possible between devices.
Features
Sixteen high quality mic preamplifiers, with 24-bit A-to-D converters
XLR mic or 1/4 in. TRS balanced line-level inputs on combo jacks
48V phantom power on each channel
Three-segment LED level meter
Continuously variable gain knob for each channel
Phase reverse switch per channel
Rumble filter switch (85Hz rolloff) on each channel
Stereo Link switch per pair of channels
Built-in passive mic splitter
Balanced insert send and return jacks (1/4 in. TRS)
Dual A-Net outputs
A-Net Expansion jack for 32x0 and 16x16 channel systems
Internal universal power supply; IEC power connector
TECHNICAL DESCRIPTION
Audio Inputs: 16, balanced mic- or lline-level, XLR combo connector
XLR Input (mic/line): Pin 1: Ground; Pin 2: Audio +; Pin 3: Audio -
TRS Line Inputs, & Send/Return: Tip: Audio +; Ring: Audio -; Sleeve: Ground
Audio Thru: XLR; Pin 1: Ground; Pin 2: Audio +; Pin 3: Audio -; Direct coupled passive throughput
Insert Send: Impedance balanced; Nominal level: 0dBu; Peak Level (A/D clip point): +14dBu
The Insert Send connector is a line output in the signal path post gain, post filter, and post phase controls.
Insert Return: TRS balanced; Nominal level: 0dBu; Peak Level (A/D clip point): +14dBu
The Insert Return connector is a line input to the signal path that is pre A/D conversion.
Analog to Digital Conversion: 48kHz sample rate, 24 bit
Operating Level: +4dBu
Frequency Response: 4Hz-22kHz
A-Net Output: one Category 5 (RJ45 connector)
A-Net Expansion: one Category 5 (RJ45 connector)
Gain Range: Mic: +6dB to +60dB; Line: -15dB to +36dB
Channel LED Indicators: Signal Present and Clip, per channel
Line Inputs: Impedance: 48k ohms
Metering: LEDs; green: Signal Present, red: Clip; per channel
Stereo Operation: Stereo Link, per channel pair; Two-position switch (Normal, Link)
Maximum Input Level: Mic: +14dBu; Line: +28dBu
Input Impedance: Mic: 2.4k ohms; Line (TRS): 33k ohms; Insert Return: 39k ohms
A/D Freq. Response: -0.1dB @ 20kHz (-0.4dB @ 20.0kHz, measured
from Mic or Line in); -3dB @ 1.5Hz (-3dB @ 2.0Hz, measured from Mic or Line in)
THD +N: < 0.003%
Crosstalk: -90dB
Bit Error Rate (BER): 10(-12)
Signal to Noise (unweighted): A/D: -105dB Reference = +14dBu (A/D clip point) Send jack: -113dB (Gain = minimum)
EIN (Equivalent Input Noise): -128dBu (Rs = 150 ohms, 20kHz BW, Gain = +60dB)
CMRR (Common Mode Rejection Ratio): 80dB @ 120Hz (Gain = +60dB)
Low Cut Filter: -3dB @ 85Hz, -18 dB per octave
Phantom Power: +48V, per channel, switch with LED
Digital Outputs: A-Net: 2 (Main and Aux); A-Net Expansion: 1 A-Net Pro16
A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat5e cable
uses unshielded Cat5e UTP (or better) cable
Latency: <0.880 msec (measured from analog input to analog output)
Power Supply: Internal, universal switching type; IEC jack
Voltage: 100-240VAC, 50-60Hz, 60W; Fuse: 250VAC, F4AL
Dimensions: 19 x 9.25 in. (482.6 x 234.95mm); 3U high
Weight: 12 lbs. (5.44 kilo)
Options: AN-16SB System Bridge; used to combine up to four A-Net streams for transmission over one Cat5e cable
XLR Input (mic/line): Pin 1: Ground; Pin 2: Audio +; Pin 3: Audio -
TRS Line Inputs, & Send/Return: Tip: Audio +; Ring: Audio -; Sleeve: Ground
Audio Thru: XLR; Pin 1: Ground; Pin 2: Audio +; Pin 3: Audio -; Direct coupled passive throughput
Insert Send: Impedance balanced; Nominal level: 0dBu; Peak Level (A/D clip point): +14dBu
The Insert Send connector is a line output in the signal path post gain, post filter, and post phase controls.
Insert Return: TRS balanced; Nominal level: 0dBu; Peak Level (A/D clip point): +14dBu
The Insert Return connector is a line input to the signal path that is pre A/D conversion.
Analog to Digital Conversion: 48kHz sample rate, 24 bit
Operating Level: +4dBu
Frequency Response: 4Hz-22kHz
A-Net Output: one Category 5 (RJ45 connector)
A-Net Expansion: one Category 5 (RJ45 connector)
Gain Range: Mic: +6dB to +60dB; Line: -15dB to +36dB
Channel LED Indicators: Signal Present and Clip, per channel
Line Inputs: Impedance: 48k ohms
Metering: LEDs; green: Signal Present, red: Clip; per channel
Stereo Operation: Stereo Link, per channel pair; Two-position switch (Normal, Link)
Maximum Input Level: Mic: +14dBu; Line: +28dBu
Input Impedance: Mic: 2.4k ohms; Line (TRS): 33k ohms; Insert Return: 39k ohms
A/D Freq. Response: -0.1dB @ 20kHz (-0.4dB @ 20.0kHz, measured
from Mic or Line in); -3dB @ 1.5Hz (-3dB @ 2.0Hz, measured from Mic or Line in)
THD +N: < 0.003%
Crosstalk: -90dB
Bit Error Rate (BER): 10(-12)
Signal to Noise (unweighted): A/D: -105dB Reference = +14dBu (A/D clip point) Send jack: -113dB (Gain = minimum)
EIN (Equivalent Input Noise): -128dBu (Rs = 150 ohms, 20kHz BW, Gain = +60dB)
CMRR (Common Mode Rejection Ratio): 80dB @ 120Hz (Gain = +60dB)
Low Cut Filter: -3dB @ 85Hz, -18 dB per octave
Phantom Power: +48V, per channel, switch with LED
Digital Outputs: A-Net: 2 (Main and Aux); A-Net Expansion: 1 A-Net Pro16
A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat5e cable
uses unshielded Cat5e UTP (or better) cable
Latency: <0.880 msec (measured from analog input to analog output)
Power Supply: Internal, universal switching type; IEC jack
Voltage: 100-240VAC, 50-60Hz, 60W; Fuse: 250VAC, F4AL
Dimensions: 19 x 9.25 in. (482.6 x 234.95mm); 3U high
Weight: 12 lbs. (5.44 kilo)
Options: AN-16SB System Bridge; used to combine up to four A-Net streams for transmission over one Cat5e cable
