Aviom Advanced Personal Monitoring System
Control your mix! Complete personal mixing control setup.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
Aviom puts the power of personal mixing control in your hands with the Aviom Advanced Personal Monitoring System. The A16II allows performers to create custom monitor mixes tailored to their personal needs. Designed for use in live performance or in the studio, the A16II Personal Mixer gives each performer control over channel volume, grouping, pan, stereo spread, and master volume and tone. Every Personal Mixer in a system can create a unique monitor mix for a performer. Users can save and recall up to sixteen custom mixes as presets in their Personal Mixer.
The stereo output from the A16II can be used to drive wired or wireless in-the-ear monitors, headphones, powered floor wedges, an amplifier, or spot monitors. Mixers can be daisy-chained or connected in parallel using an A-Net Distributor. Parallel connections also allow power to be supplied to an unlimited number of mixers using Cat-5e cables.

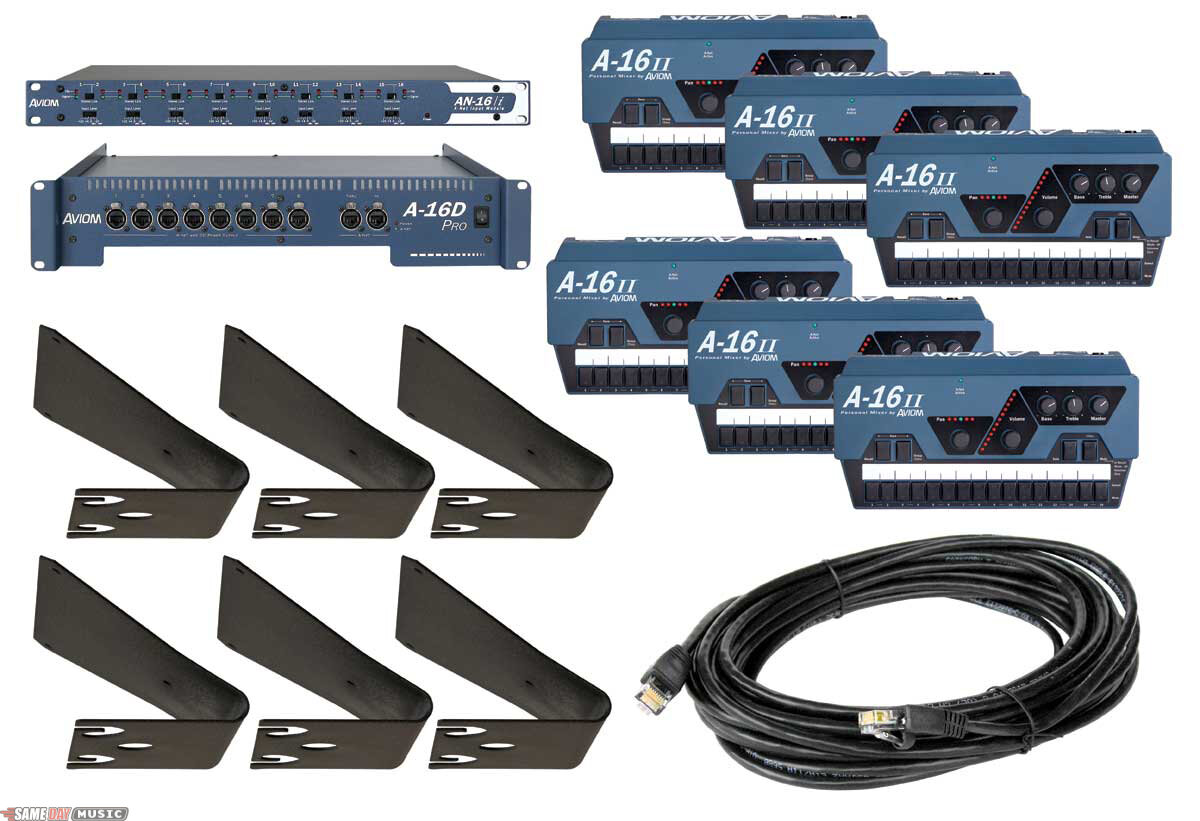

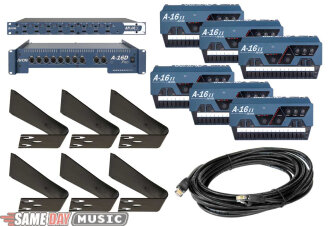

Package Includes
6 x Aviom A16II Personal Monitor Mixer
1 x Aviom A16DPRO A-Net and Power Distribution
1 x Aviom AN16i 16-Channel Line Level Input Module
6 x Aviom MT1 Mic Stand Mount for A16II and A16CS
1 x Aviom L100 Cat5e Cable (100 Foot)
Features
Sixteen channel stereo mixer
Auto-detect mono/stereo circuitry
Fully adjustable pan per channel
Pan/Spread control with LED readout
Mounts easily on a mic stand with the optional MT-1 Mic Stand Mount
Channel volume control with LED level readout
Sixteen channel select buttons with dual LEDs
Simple set-up with Cat-5e cables
Line/headphone audio output
Channel solo, mute, and group functions
Master Volume, Treble, and Bass controls
Global trim for reducing all channel volumes
Sixteen Preset locations for storing custom mixes
Own a system from the company that addresses the real-world needs of musicians and audio professionals working in a variety of environments.
The stereo output from the A16II can be used to drive wired or wireless in-the-ear monitors, headphones, powered floor wedges, an amplifier, or spot monitors. Mixers can be daisy-chained or connected in parallel using an A-Net Distributor. Parallel connections also allow power to be supplied to an unlimited number of mixers using Cat-5e cables.
Package Includes
6 x Aviom A16II Personal Monitor Mixer
1 x Aviom A16DPRO A-Net and Power Distribution
1 x Aviom AN16i 16-Channel Line Level Input Module
6 x Aviom MT1 Mic Stand Mount for A16II and A16CS
1 x Aviom L100 Cat5e Cable (100 Foot)
Features
Sixteen channel stereo mixer
Auto-detect mono/stereo circuitry
Fully adjustable pan per channel
Pan/Spread control with LED readout
Mounts easily on a mic stand with the optional MT-1 Mic Stand Mount
Channel volume control with LED level readout
Sixteen channel select buttons with dual LEDs
Simple set-up with Cat-5e cables
Line/headphone audio output
Channel solo, mute, and group functions
Master Volume, Treble, and Bass controls
Global trim for reducing all channel volumes
Sixteen Preset locations for storing custom mixes
Own a system from the company that addresses the real-world needs of musicians and audio professionals working in a variety of environments.
TECHNICAL DESCRIPTION
A-Net Input/ Output: 1 input, 1 output Category 5 (RJ45 connector)
Digital to Analog Conversion Bit Depth: 24 bit
Signal to Noise Ratio (Referenced to 0dB): -103dB
Treble: +/-12dB at 9kHz shelving
Bass: +/-12dB at 160Hz shelving
Maximum Levels (RMS): Line/Headphone outs: 1.0 watt at 100 ohms
Line/Headphone outs: 140 ohms
Dimensions: 10.75 inches wide x 5.6 inches deep 2.25 inches high
Weight: 3.4 lbs.2 mm
Power Supply: External, DC, universal switching type
Input Voltage: 100-240 volts, 50/60Hz, 30VA
Output Voltage: 18-24 VDC, 0.5 amp
Plug Size:2 mm
Digital to Analog Conversion Bit Depth: 24 bit
Signal to Noise Ratio (Referenced to 0dB): -103dB
Treble: +/-12dB at 9kHz shelving
Bass: +/-12dB at 160Hz shelving
Maximum Levels (RMS): Line/Headphone outs: 1.0 watt at 100 ohms
Line/Headphone outs: 140 ohms
Dimensions: 10.75 inches wide x 5.6 inches deep 2.25 inches high
Weight: 3.4 lbs.2 mm
Power Supply: External, DC, universal switching type
Input Voltage: 100-240 volts, 50/60Hz, 30VA
Output Voltage: 18-24 VDC, 0.5 amp
Plug Size:2 mm
