    Aviom MIX1 One Mix Personal Monitor System

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Aviom MIX1 One Mix Personal Monitor System Product Description

    The Axiom Mix1 mixing system is the perfect way to get started with Aviom personal mixing. It features one AN-16/i Input Module, which accepts up to 16 line-level input sources, as the head-end of the system. Audio is converted to digital and transmitted via A- Net(R), up to 500ft/150m over Cat-5e. A dedicated audio thru is available for each input channel, allowing the AN-16/i to be seamlessly inserted into an existing audio signal path.

    The 16-channel A-16II Personal Mixer allows a performer to create and save up to 16 custom mixes, and gives each performer control over channel volume, grouping, pan, stereo spread, along with master volume and tone. The system also includes an MT-1 to allow the personal mixer to be mounted on any standard mic stand.

    This basic mixing system can be easily expanded at any time by adding additional personal mixers.

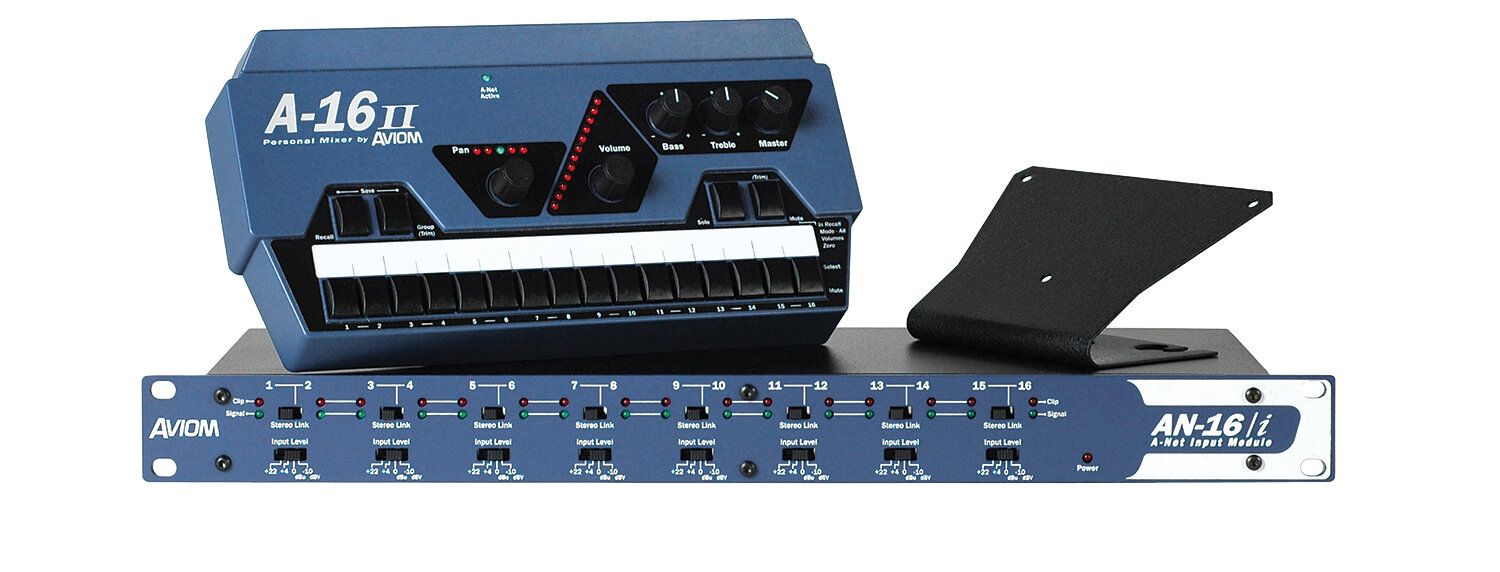

    Includes:

    - 1 AN-16/i Input Module
    - 1 A-16II Personal Mixer
    - 1 MT-1 Mic Stand Mount

    Same Day Music is an authorized dealer of Aviom products.

    Aviom MIX1 One Mix Personal Monitor System Technical Description

    AN-16/i Input Module

    - Audio Inputs: 16, balanced line-level, 1/4-inch TRS connector
    - Inputs: Tip: Audio +; Ring: Audio -; Sleeve: Ground
    - TRS Thru: Impedance matched output
    - Analog to Digital Conversion: 48kHz sample rate, 24 bit
    - Frequency Response: 4Hz-22kHz
    - A-Net Output: one Category 5 (RJ45 connector)
    - A-Net Expansion: one Category 5 (RJ45 connector)
    - Gain Settings: Four-position switch, -10dBv, 0dBu, +4dBu, and +22dBu
    - Channel LED Indicators: Signal Present and Clip, per channel
    - Line Inputs: Impedance: 48k ohms
    - Metering: LEDs; green: Signal Present, red: Clip; per channel
    - Stereo Operation:
    - Stereo Link, per channel pair;
    - Two-position switch (Normal, Link)
    - Maximum Input Level: +22dBu
    - Input Impedance: 17.8k ohm
    - Freq. Response: 4Hz-22kHz +0.2dB/-3dB
    - THD +N: < 0.003%
    - Crosstalk: -90dB
    - Bit Error Rate (BER): 10(-12)
    - Signal to Noise (unweighted):
    - 90dB typical, A/D to D/A
    - Measured from AN- 16/i to AN-16/o Output Module
    - Digital Outputs: A-Net: 1; A-Net Expansion: 1; RJ45 connector
    - A-Net Pro16: A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable; use unshielded Cat-5e UTP (or better) cable
    - Latency: <0.880 msec (measured from analog input to analog output)
    - Power Supply
    - Input Voltage
    - Output Voltage
    - - Plug Size:
    - External, DC, universal switching type
    - 100-240 volts, 50/60Hz, 30VA
    - 18-24 VDC, 0.5 amp
    - 2 mm
    - Power: 18-24 VDC, 500mA
    - Dimensions: 19" (482.6 mm) wide x 5.75" (146 mm) deep; 1U high
    - Weight: 6.8 lbs. (3.08 kg)

    A-16II Personal Mixer

    - Audio Output: 1/4-inch TRS stereo, headphone or line level
    - Line/Headphone TRS Output: Tip: Audio Left; Ring: Audio Right;Sleeve: Ground Auto-detects mono plugs
    - A-Net Input/Output: 1 A-Net input, 1 A-Net output; Category 5 (RJ45 connector)
    - Digital to Analog Conversion Bit Depth: 24 bit
    - Signal to Noise Ratio: (Referenced to 0dB) -103dB
    - Latency: <0.880 msec (measured from analog input to analog output)
    - Pro16 A-Net: uses unshielded Cat-5e UTP (or better) cable; maximum 500ft (150m) between devices
    - Tone Controls:
    - Treble +/-12dB at 9kHz shelving
    - Bass +/-12dB at 160Hz shelving
    - Maximum Levels (RMS): Line/Headphone outs: 1.0 watt at 100 ohms
    - Impedance: Line/Headphone outs: 32 ohms
    - Power Supply:
    - Input Voltage
    - Output Voltage
    - - Plug Size: External, DC, universal switching type
    - 100-240 volts, 50/60Hz, 30VA
    - 18-24 VDC, 0.5 amp
    - 2 mm
    - Dimensions: 10.75" (273 mm) wide x 5.6" (142.2 mm) deep; 2.25" (57.5 mm) high
    - Weight: 3.4 lbs. (1.54 kg)
    - Options:
    - MT-1 Mic Stand Mount (uses 6-32 1/4-inch screws)
    - EB-1 Extension Bracket
    - MT-X Expansion Box (requires MT-1)

    T-1 Mic Stand Mount

    - Boxed Weight: 1lb.
    - Boxed Dimensions: 7"w x 5"d x 3"h
    - Dimensions: 6.25" wide at front x 4.5" wide at rear x 3" high
    - Connections: Attaches with three screws to bottom of A-16II or A-16CS
    - Connectors: size: 6-32, 1/4-inch long screws

    Same Day Music is an authorized dealer of Aviom products.
