Product Description

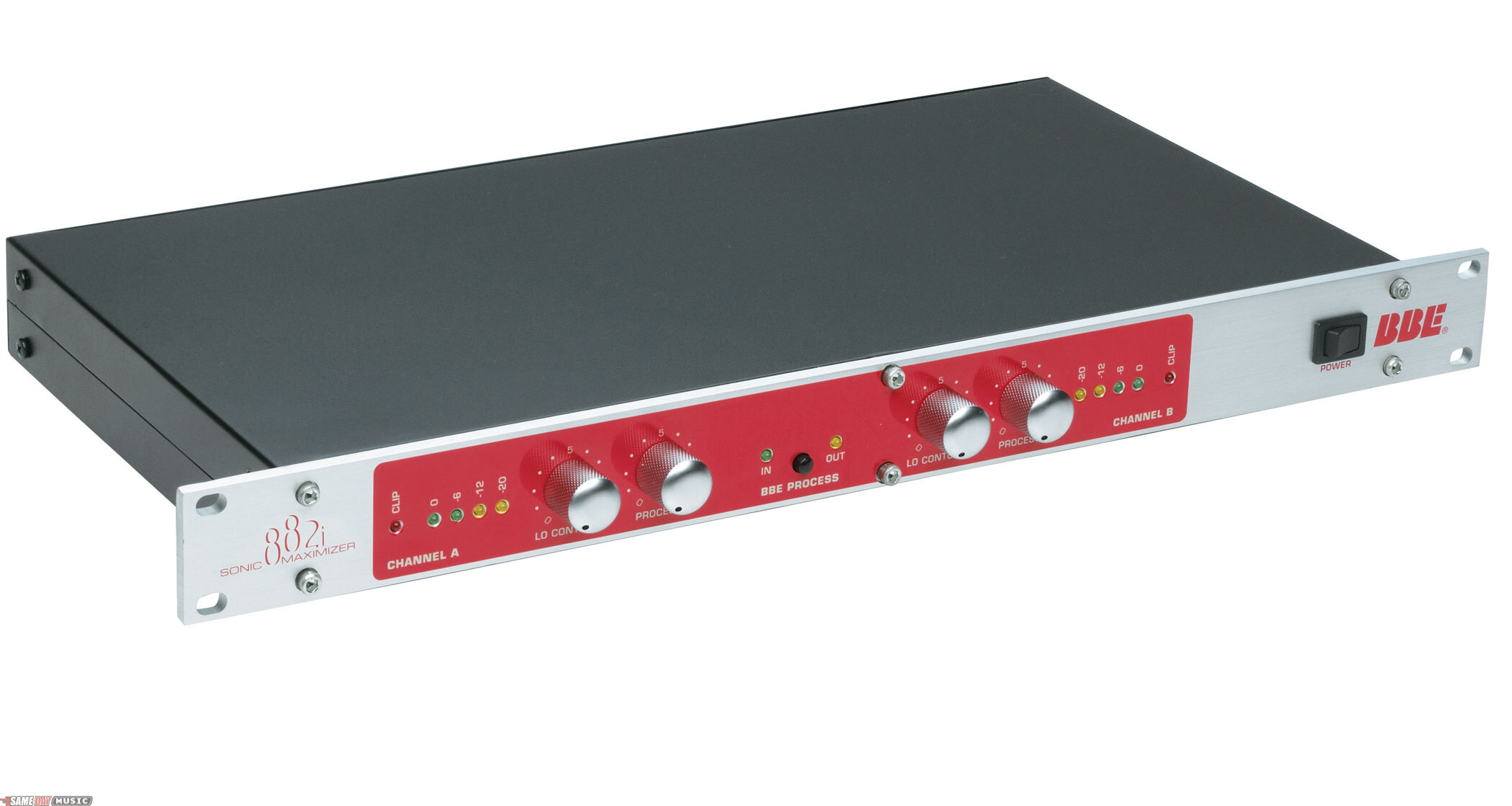

The 882i unit features dual-mono operation with balanced XLR inputs and outputs. It is designed for applications requiring low noise, high headroom and +4dBu input levels.

The BBE 882i was designed to offer far greater strength under demanding applications such as sound reinforcement and touring.

It features a 1/4 in. thick extruded aluminum faceplate anchored to the chassis via hex head bolts, and it also benefits from improved graphics which are easier to read in poorly lit environments. In addition, new knurled, aluminum knobs have been incorporated for ease of control and a more positive feel, often critical to musicians, live sound mixers and DJs making fine adjustments mid-performance.

Both models employ 1% metal film resistors and military spec PCBs with extra thick traces. Further optimizing signal flow, all pots, switches and jacks mount directly to the PC boards of these units, which also feature the extremely quiet, proprietary Sonic Maximizer op amp, designed by BBE.

Applications
Professional recording studios

Pro and semi-pro sound reinforcement

Multitrack studios

Cassette copies

Nightclub sound systems

Broadcast transmission

Features
+4dBu balanced line (1/4" tip-ring-sleeve and XLR inputs and outputs)

+23dBu headroom

Active balanced outputs

Hardwire bypass

Bypass switch for comparison of processed to unprocessed signal

Technical Description

Process Mode: Program controlled

Bypass Mode: 10Hz to 50kHz, +/- 0.5dBu, 0dBu input

Signal to Noise Ratio: 115dB Process IN

THD, Process mode: less than 0.025% 20-20kHz

Bypass mode: less than 0.002% 20-20kHz

Maximum Output: +23dBu (may vary due to control settings)

Input Impedance: 14.7K Ohms, balanced 1/4" stereo phone jack or XLR jack. Pin #2 is the hot or "+" signal.

Output Impedance: 600 Ohms, balanced 1/4" stereo phone jack or XLR jack. Pin #2 is the hot or "+" signal.

Sensitivity: -45dBu for maximum process

Maximum Process: +12dBu boost at 5kHz, 0dBu input

Lo Contour: +12dBu adjustment at 50Hz, 0dBu input

Catalog Description

Add sparkle and clarity to your sounds@Restores transients@Realigns phase and frequency@Stereo with individual channel controls@5-segment metering@TRS and XLR I/O
