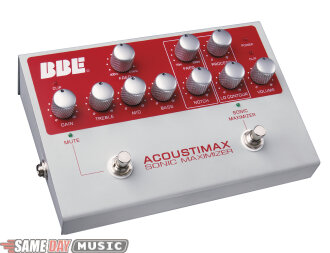

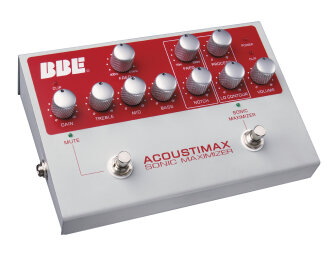

BBE Acoustimax Acoustic Guitar Preamp
3 band EQ with sweepable mids, low freq. notch filter, phase reversal, ground lift, line level out, dedicated tuner out and TRS effects loop, even a pre/post switchable balanced DI output with pad
Product rated 10.0 out of 10 (1 rating)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
ADDITIONAL VIEWS:
Main
Rear
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
BBE is at the forefront of audio technology which allows amplified music to sound more natural, and the latest generation of BBE High Definition Sound technology is a vital element to the new Acoustimax acoustic preamp. In the four years since BBE last offered its award winning 386 acoustic preamp, BBE's design and engineering team studied the serious acoustic player's needs for both recording and sound reinforcement.
The result is Acoustimax, a foot pedal style (or "stomp box style) acoustic preamp which raises the bar for amplified acoustic instrument sound quality. Acoustimax is packed with features including three band, recording console quality EQ with a sweepable mid-range band, low frequency notch filter, phase reversal, ground lift, line level out, dedicated tuner out and TRS effects loop, even a pre/post switchable balanced DI output with pad. Other features include hard wired bypass, non-slip rubber bottom and the included 12v power supply.
The result is Acoustimax, a foot pedal style (or "stomp box style) acoustic preamp which raises the bar for amplified acoustic instrument sound quality. Acoustimax is packed with features including three band, recording console quality EQ with a sweepable mid-range band, low frequency notch filter, phase reversal, ground lift, line level out, dedicated tuner out and TRS effects loop, even a pre/post switchable balanced DI output with pad. Other features include hard wired bypass, non-slip rubber bottom and the included 12v power supply.
TECHNICAL DESCRIPTION
Frequency Response: 50Hz - 20kHz
Treble: +/- 12dB @ 10kHz
Mid: +/- 12dB @ 400Hz - 2.5kHZ
Bass: +/- 12dB @ 60Hz
Notch: 0 to 12 dB @ 70Hz - 250 Hz
BBE:
Low Contour: +15dB @ 50Hz
Process: +15dB @ 10Khz
Noise:
Instrument Jack: -98dBv (unity gain)
Line Out: -88dBv (+10dB gain)
Max. Output: +10dBu @ Instrument Jack
THD: 0.05% at 1 kHz
Impedances:
Input: 2.2 MEG Ohm
Tuner Out: 2k Ohm
Line Out: 1k Ohm
Instrument Out: 2k Ohm
XLR Out: 600 Ohm
* 0dBu = 0.775Vrms
Power Requirements: DC inlet +12VAC min. 200ma
Treble: +/- 12dB @ 10kHz
Mid: +/- 12dB @ 400Hz - 2.5kHZ
Bass: +/- 12dB @ 60Hz
Notch: 0 to 12 dB @ 70Hz - 250 Hz
BBE:
Low Contour: +15dB @ 50Hz
Process: +15dB @ 10Khz
Noise:
Instrument Jack: -98dBv (unity gain)
Line Out: -88dBv (+10dB gain)
Max. Output: +10dBu @ Instrument Jack
THD: 0.05% at 1 kHz
Impedances:
Input: 2.2 MEG Ohm
Tuner Out: 2k Ohm
Line Out: 1k Ohm
Instrument Out: 2k Ohm
XLR Out: 600 Ohm
* 0dBu = 0.775Vrms
Power Requirements: DC inlet +12VAC min. 200ma
