Product Description

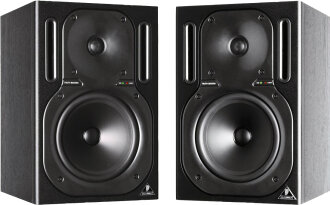

Behringer B2030A Active Studio Monitor
The TRUTH B2030A has all of the great features of an active TRUTH monitor packed in a compact cabinet! It's a high-resolution, active 2-way reference studio monitor that is perfect for nearfield monitoring applications: from small mixing environments to multi-channel surround setups.

Despite its small size, the TRUTH B2030A can achieve a peak output level in excess of 113 dB SPL. Powered by separate 75- and 35-Watt built-in amplifiers with an active crossover, these monitors provide ultra-linear frequency response from 50 Hz to 21 kHz.

A long-throw 6 3/4 in. woofer with a special polypropylene diaphragm delivers smooth, deep bass, while an extremely high-resolution HF driver delivers highs that are crystal-clear and full of detail. The unique BEHRINGER wave guide and the extremely low-distortion crossover network produce an absolutely linear phase response with excellent sound dispersion and stereo imaging.

The B2030A is equipped with servo balanced inputs on XLR and 1/4 in. TRS connectors to handle a variety of audio sources. Thanks to its compact size and magnetic shielding, the TRUTH B2130A can be placed near video monitors, computer displays or digital audio workstations. The B2030As are delivered along with individual measurement diagrams.

Technical Description

Audio Inputs
XLR connector: servo-balanced input
1/4 in. TRS: servo-balanced input
Input impedance: 10 kilo ohms
Max. input level: +22 dBu

Components
Tweeter: 3/4 in. ferrofluid-cooled dome
Woofer: 6 3/4 in. polyproylene diaphram

Amplifiers
Low Frequency: max. 75 Watts
High Frequency: max. 35 Watts
Noise: <10 dBA @ 1 m (each)

Crossover
Type: active, 4th order Linkwitz-Riley
Crossover Frequency: 2 kHz

System Specification
Frequency response: 50 Hz to 21 kHz
Sound pressure level: max. 113 dB SPL @ 1 m (pair)

Power Supply
Voltage: 120 V~, 60 Hz
Power consumption: 0.5 A, standby 120 mA
Fuse: T 2 A H 250 V
Main connection: Standard IEC connector

Dimensions/Weight
Dimensions (H x W x D): 12 1/2 x 8 2/5 x 8 1/3 in. (317 x 214 x 211 mm)
Weight: 21 2/3 lbs. (9 7/8 kg)

Catalog Description

Compact biamplified nearfield monitors@6-3/4" woofer, 3/4" dome tweeter@75-watt/35-watt power@50Hz-21kHz frequency response@EQ filter switches@XLR and TRS inputs
